Description
Every detectorist has a spot he cannot find again: the corner of a plowed field where the buttons came up, the stretch of tide line that gave up a ring. The Minelab CTX 3030 is the only Minelab treasure detector with a GPS built into the control box. Press one button and the place a find came out of is logged as a FindPoint; the Navigation Tool later walks you back to it with distance and bearing, and the GeoTrail shows exactly which ground you already covered. Around that GPS sits Minelab's FBS 2 multi-frequency engine, a full-color two-dimensional target screen, and a housing rated to 10 ft (3 m) for beaches, creeks and shallow water.
Exclusive History Seekers bonus: free with every Minelab CTX 3030
Buy your Minelab CTX 3030 from History Seekers and receive a free 1-year subscription to American Digger Magazine, the definitive print resource for relic hunters, coin shooters, and serious diggers. Real finds, real research, and real history delivered directly to your door. This bonus is available exclusively through HistorySeekers.net.
Notice: the free subscription offer applies strictly to listed prices. It cannot be combined with other discount codes or promotions. If a coupon or promotional discount is used at checkout, the free magazine subscription is excluded.
15% Minelab Military Discount: active duty and veteran service members save 15% on Minelab detectors (accessories excluded). Contact us directly at (256) 284-2247 to order with the discount. Cannot be combined with other promotions or discounts, including the free magazine subscription.
Why This Model
The CTX 3030 runs FBS 2, Minelab's Full Band Spectrum engine that transmits frequencies from 1.5 kHz to 100 kHz at the same time and talks to the coil digitally, which is why Minelab calls the CTX 11 a smart coil. The payoff is on the screen: Smartfind 2 plots every target on two axes at once, ferrous character (FE 1 to 35) against conductivity (CO 1 to 50), in color, and Target Trace paints the target's whole history across the screen as you sweep it. In an iron-infested homesite the Ferrous-Coin separation setting shows both cursors when a coin is sitting on top of a nail, which is the difference between digging that signal and walking past it. Ten search modes (five factory presets, Coins, Beach, Relics, Silver and High Trash, plus five user slots) each hold two discrimination patterns, and the Detect button flips between them mid-swing: a tight coin pattern for the sweep, an open pattern to check the edges of a signal.
Minelab's other current multi-frequency flagships answer different questions. The Manticore is the Multi-IQ+ machine: lighter by more than two pounds, rated to 16 ft (5 m), with its own 2D ID Map, and no GPS. The Equinox 900 is the value multi-frequency pick with two coils in the box, and no GPS. The Excalibur II is the dive machine, rated to 200 ft (60 m), with no screen at all. The CTX 3030 is the one you buy when the site itself is the project: a beach you work every low tide, a camp you survey over a season, a permission where you need to prove to yourself (or the landowner) where the finds came from. It records the hunt, not just the target.
Dealer pages sell this detector as "wireless headphones included" and stop there. Here is the precise version, straight from Minelab's manual and product page: the KOSS UR30 headphones in the box are wired, 100 ohm, and not waterproof. The wireless part is the WM 10 WiStream module, also in the box, which you clip to your belt and plug the UR30 (or any headphones you own) into, with no perceivable delay on any of its 14 channels. The WM 10 is not waterproof either, and it stops working once the control box goes under, so submerged hunting means Minelab's waterproof headphones on the detector's waterproof connector. We would rather you know that before you buy than after.
Technical Specs and Benefits
| Spec (Minelab instruction manual 4901-0117-4 and usa.minelab.com) | What It Does in the Field |
|---|---|
| FBS 2 multi-frequency: simultaneous transmission from 1.5 kHz to 100 kHz, digital coil-to-detector communication | Low frequencies for deep silver and copper, high frequencies for small gold jewelry, in the same sweep; stable target IDs in mineralized ground and on wet salt sand. |

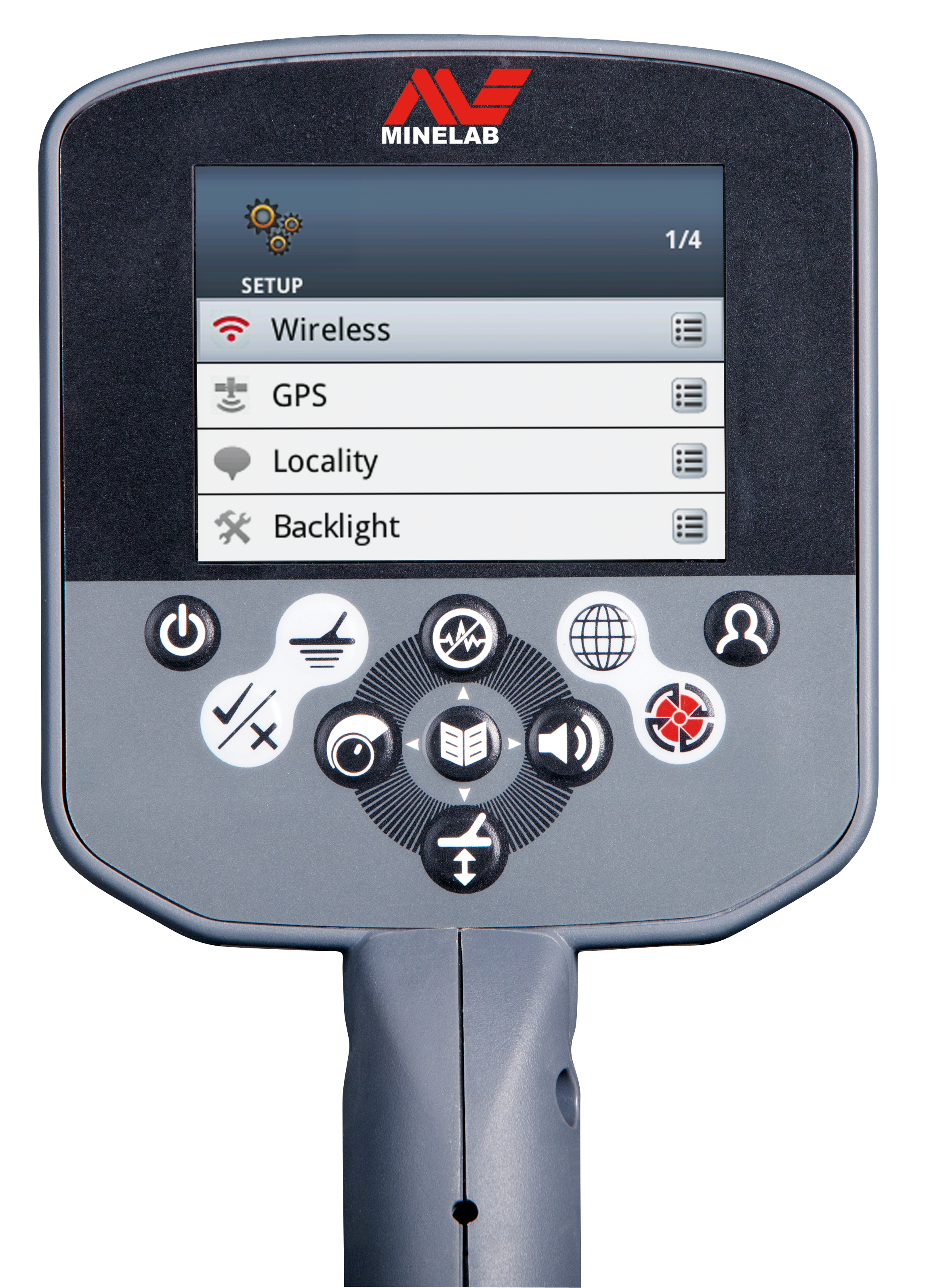

| Smartfind 2 two-dimensional target ID: FE 1 to 35 by CO 1 to 50 on a 320 x 240 full-color LCD, backlight 1 to 10 | Read ferrous character and conductivity together instead of a single number; a bottle cap and a coin land in different places on the screen. |
| 10 search modes: Coins, Beach, Relics, Silver, High Trash presets plus 5 user modes; 2 patterns per mode = 20 discrimination patterns | Switch on and go with a preset, then build your own; the Detect button toggles pattern 1 and 2 without leaving the search screen. |
| Target Trace, plus Target Separation: Low Trash, High Trash, Ferrous-Coin, Ground-Coin | See a target's Fe/Co history as a trail; Ferrous-Coin displays both cursors when a coin sits on iron, Ground-Coin holds the ID steady in mineralized soil. |
| Tone ID Profiles: 1, 2 FE, 2 CO, 4 FE, 4 CO, 35 FE, 50 CO or Combined; response Normal, Long, Smooth or Pitch Hold | Run two tones for a quiet beach or 50 conductive tones for a trashy park; every section is resizable and pitch-editable. |
| Recovery Fast and Recovery Deep, set per mode; Seawater setting | Fast separates adjacent targets in trash, Deep adds processing to faint deep signals; Seawater keeps sensitivity high with the coil under salt water. The Beach preset ships with Recovery Deep and Low Trash separation on. |
| Sensitivity Auto (-3 to +3) or Manual 1 to 30; Noise Cancel Auto (up to a 30-second scan) or Manual channel select | Auto handles most ground; Minelab says use Manual on non-mineralized beaches, and Noise Cancel kills interference from power lines or a partner's detector. |
| Threshold Level 1 to 30 and Pitch 1 to 30; Volume Gain 1 to 30, Volume Limit 0 to 30, with separate limits for speaker, headphones and WM 10 | A faint hum under the audio lets you hear the deep whispers; the limit caps loud shallow targets without losing faint ones. |
| GPSi: u-blox Neo-6 engine, 100 FindPoints, 100 WayPoints, 10 GeoHunts; Map screen at 10, 20 or 100 yd (or m) per cell; Navigation Tool | Log finds and hunts on the detector, walk back to any point with distance and bearing, and review or export everything in XChange 2 on a Windows PC. GPS is off by default and switched on in Options. |
| WiStream wireless audio to the included WM 10 module, 14 channels | No cable to the control box while wading or swinging; several CTX users can share one beach on separate channels. The module charges from the BC 10's USB port. |
| Waterproof to 10 ft (3 m): control box, shafts and coil; battery pack sealed only when attached | Hunt the surf, creek beds and lake edges with the box in the water. The WM 10, the UR30 headphones and the 1/4 in (6.35 mm) headphone module stay dry. |
| CTX 11 search coil: 11 in (28 cm) Double-D smart coil with skid plate, 1.4 lb (641 g) | Coverage and depth for open ground with DD separation in trash; the CTX 06 and CTX 17 coils are the same-brand options for tight sites and big fields. |
| Two power sources: Li-Ion pack (7.2 V, 34 Wh, up to 4 hours to charge) and a replaceable 8 x AA cell pack; BC 10 charger runs on 11 to 30 VDC | 13 hours on the Li-Ion with GPS, backlight and speaker all on, at least 7 hours on alkaline AAs; charge from the wall, a 12 V car socket or a 24 V truck. |
| Length 36.77 in (934 mm) collapsed to 55.15 in (1401 mm) extended; carbon-fiber upper and lower shafts with cam lock | Packs flat for the truck, extends for tall hunters, and the carbon shafts do not flex under the 11 in (28 cm) coil. |
| Weight 5.2 lb (2.36 kg) with the Li-Ion battery installed | Roughly twice the weight of Minelab's Multi-IQ machines; a harness or bungee is worth planning on for all-day sessions. |
| User-upgradable firmware via XChange 2 or by copying the update file to the detector's USB drive | Updates apply from a Windows PC through XChange 2, or from a Mac or PC by drag-and-drop; the last published detector file is dated August 2016. |
CTX 3030 vs Manticore vs Equinox 900 vs Excalibur II: Which One Do You Need?
All four are Minelab multi-frequency machines built for coins, relics, jewelry and beaches. They differ in what they record, how deep they go and how much they weigh.
| Feature | CTX 3030 | Manticore | Equinox 900 | Excalibur II |
|---|---|---|---|---|
| Technology | FBS 2, 1.5 to 100 kHz simultaneous | Multi-IQ+ | Multi-IQ | BBS, 17 frequencies 1.5 to 25.5 kHz |
| Built-in GPS and hunt mapping | Yes: 100 FindPoints, 100 WayPoints, 10 GeoHunts | No | No | No |
| Target display | Full-color 2D Fe/Co (Smartfind 2) with Target Trace | Color 2D ID Map with Target Trace | Numeric target ID | None (audio and rotary controls) |
| Waterproof rating | 10 ft (3 m) | 16 ft (5 m), IP68 | 16 ft (5 m), IP68 | 200 ft (60 m), diving |
| Weight | 5.2 lb (2.36 kg) | 2.9 lb (1.3 kg) | 2.8 lb (1.27 kg) | 5.1 lb (2.3 kg) |
| Audio in the box | WM 10 wireless module plus wired KOSS UR30 headphones | ML 105 wireless headphones | ML 85 wireless headphones | Hardwired waterproof Koss headphones |
| Best fit | Site mapping and survey work, beach and surf to 10 ft (3 m), coins and relics | Iron-infested sites, all-day swinging at the lowest weight | Two coils and Multi-IQ at the lowest price of the four | Diving and heavy surf |
Choose the CTX 3030 if you want the hunt recorded and the finds mapped, and you are working beaches, parks and relic sites in water no deeper than 10 ft (3 m). Choose the Minelab Manticore if weight and separation in iron matter more than mapping. Choose the Minelab Equinox 900 for two coils and Multi-IQ at a lower price, and the Minelab Excalibur II if you dive. Batteries, chargers, coils and audio for this machine are on our What Fits the Minelab CTX 3030 page.
Who It's For
The CTX 3030 belongs with the beach hunter who works the same stretch every low tide and wants the productive lines mapped, the relic hunter surveying a camp or homesite over a season, and the coin shooter who wants two-dimensional target ID rather than a single number. Minelab positions it for advanced users and serious hobbyists, and the five presets make the first hunt a switch-on-and-go affair while the 20 patterns, tone profiles and separation settings wait until you want them.
Honest limits, so nobody is surprised. It weighs 5.2 lb (2.36 kg), about twice a Manticore, so plan on a harness for long days. It has no gold prospecting mode; it finds gold rings and chains, not sub-gram nuggets in mineralized goldfields. Its 10 ft (3 m) rating makes it a wading and shallow-water detector, not a dive unit, and the WM 10, the supplied headphones and the 1/4 in (6.35 mm) headphone module are not waterproof at all. XChange 2, the mapping software, runs on Windows only; a Mac can still apply firmware by copying the file to the detector. The instruction manual's current revision is dated 2015 and the last firmware file is dated 2016: this is a mature platform, and no new features are coming by update. Keep the battery pack dry and its o-ring clean before every submersion; leaking alkaline cells void the warranty.

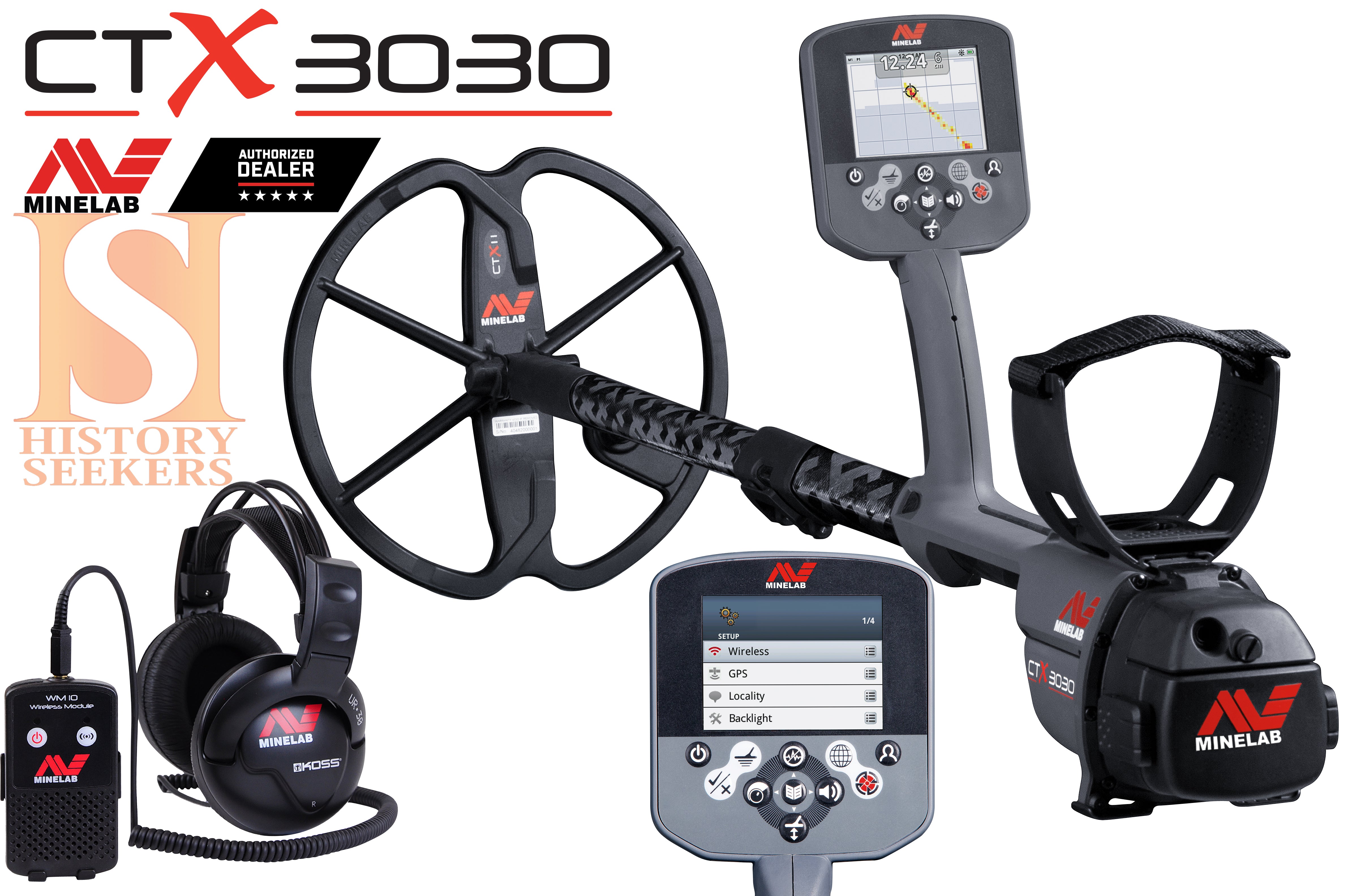

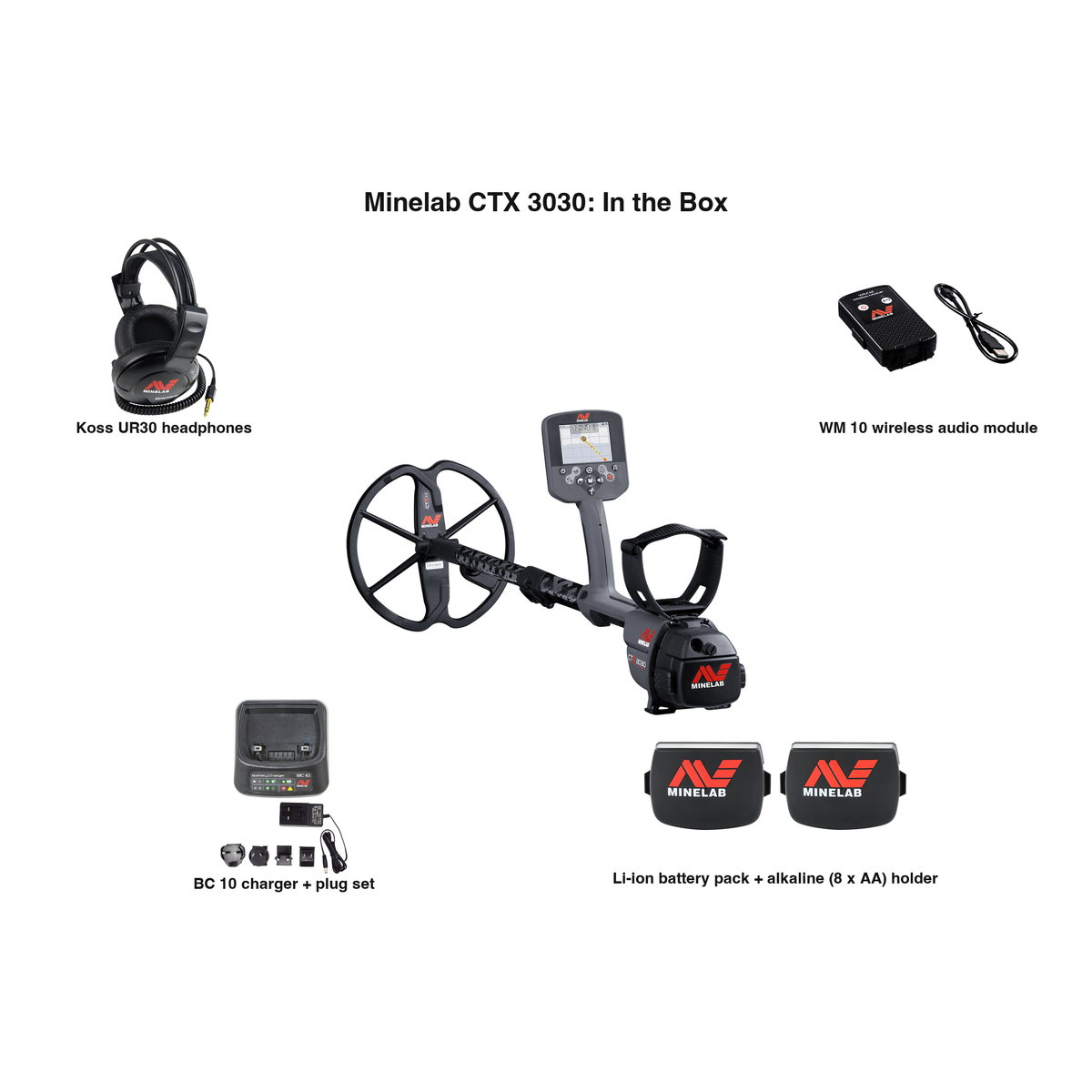

What Comes Standard in the Factory Box
- Minelab CTX 3030 control box with carbon-fiber upper and lower shafts and armrest
- CTX 11 11 in (28 cm) Double-D waterproof smart search coil with skid plate
- Li-Ion rechargeable battery pack (7.2 V, 34 Wh)
- Replaceable 8 x AA cell pack (AA cells not stated as included)
- BC 10 battery charger with wall plug pack and 12 V car cable
- WM 10 wireless audio module with belt clip
- KOSS UR30 wired headphones (100 ohm, not waterproof)
- Removable 1/4 in (6.35 mm) headphone module (not waterproof) and waterproof headphone connector for Minelab waterproof headphones (sold separately)
- USB cable for XChange 2 and firmware updates
- Getting Started Guide
- 3-year Minelab warranty
Minelab publishes the full instruction manual free of charge: Minelab CTX 3030 instruction manual (PDF). The Seawater setting, the Target Separation modes, the GPS Map screen and the two firmware upgrade paths are all in it.
See it in the field
History Seekers hunts run on YouTube and Facebook, where over 1.1 million followers watch us dig relics, coins, and gold across the Southeast and beyond. We rotate machines depending on the site and the ground conditions, and every find you see was made with gear we sell and use ourselves.
One more thing worth knowing about who you are buying from. History Seekers is a small American business, not a big box retailer where nobody on staff has ever swung a detector, and not a warehouse that just moves boxes. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. Years of field experience before hire is not a coincidence, it is a requirement. The person who answers your questions may be the same one who packs your order and drives it to the UPS drop-off, and every purchase keeps everyday Americans working.
Frequently Asked Questions
Is the Minelab CTX 3030 waterproof?
Yes, the control box, shafts and coil are waterproof to 10 ft (3 m), which covers surf, creeks and lake edges. Three things in the box are not waterproof: the WM 10 wireless module, the KOSS UR30 headphones and the 1/4 in (6.35 mm) headphone module. Submerged hunting needs Minelab's waterproof headphones on the detector's waterproof connector, and the battery pack is sealed only while it is attached, so check its o-ring before every water hunt.
Does the CTX 3030 come with wireless headphones?
Not exactly, and the distinction matters. The box holds the WM 10 WiStream wireless module and a pair of wired KOSS UR30 headphones. Plug the UR30 (or any headphones you own) into the WM 10 on your belt and the audio reaches you wirelessly with no perceivable delay on one of 14 channels. Neither the WM 10 nor the UR30 is waterproof, and the wireless link stops when the control box is submerged.
CTX 3030 or Manticore: which one should I buy?
Buy the CTX 3030 if you want GPS mapping: it logs 100 FindPoints, 100 WayPoints and 10 GeoHunts on the detector and no other Minelab treasure detector does. Buy the Manticore if weight and iron separation matter more: it runs Multi-IQ+ with its own 2D ID Map, weighs 2.9 lb (1.3 kg) against the CTX's 5.2 lb (2.36 kg), and is rated to 16 ft (5 m) against 10 ft (3 m). Both are multi-frequency and both handle salt beaches.
How does the GPS on the CTX 3030 work?
A u-blox Neo-6 GPS engine is built into the control box. Switch it on in Options (it is off from the factory), and the Map screen shows your position and GeoTrail at 10, 20 or 100 yards or meters per cell. One press stores a FindPoint or WayPoint, a GeoHunt records a whole session, and the Navigation Tool gives distance and direction back to any stored point. Everything transfers over USB to XChange 2 on a Windows PC for mapping and export. First fix is usually under 5 minutes.
How long does the battery last?
Minelab rates the Li-Ion pack at 13 hours with GPS, backlight and speaker all on, and charging takes up to 4 hours through the BC 10 from a wall outlet, a 12 V car socket or a 24 V truck socket. The replaceable 8 x AA cell pack in the box runs at least 7 hours on alkaline cells. Headphones save power compared with the speaker, and the backlight costs about 8 percent of the battery.
Can the CTX 3030 find gold?
Gold rings, chains and jewelry, yes; the CTX 3030 has recovered decades of beach gold for detectorists worldwide. It has no dedicated gold prospecting mode though: Minelab positions it for land, beach and shallow water treasure hunting, and its FBS platform favors coins and jewelry over sub-gram nuggets in mineralized goldfields. If nuggets are the goal, look at the Gold Monster 2000 or the GPX 6000; if beaches and parks are the goal, the CTX is at home.
Are there firmware updates, and does it work with a Mac?
Yes, the CTX 3030 is user-upgradable. XChange 2 (Windows only, version 1.8.7 released October 2023) can download and apply detector updates, or you can copy the update file onto the detector, which mounts as a USB drive named Minelab on a PC or a Mac. The last published detector firmware file is dated August 2016. Mac users can apply firmware that way but cannot run the XChange 2 mapping software.
Is History Seekers an authorized Minelab dealer?
Yes. History Seekers Metal Detectors is an authorized Minelab dealer; every CTX 3030 we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Minelab's 15% military discount program applies to this detector; contact us directly to order with it.
History Seekers Metal Detectors is an authorized Minelab dealer; every CTX 3030 we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Your setup questions get answered by detectorists who run Minelab machines on real permissions: we will help you build your first custom pattern, set up the WM 10 and get the GPS logging on day one. Because at History Seekers, the story is more important than the artifact.
See everything that fits your machine:What Fits the Minelab CTX 3030
