Description
Your Vanquish 540 came with this coil, and the day its cable gets pinched in a car door or the shell finally cracks on a rock bar, the machine is parked until a genuine replacement arrives. The Minelab V12 12x9 in Double-D coil (part 3011-0408) is that replacement, and for Vanquish 340 and 440 owners it is the coverage upgrade over the stock V10. Cross-reference: Vanquish 540 Pro-Pack.
At a glance

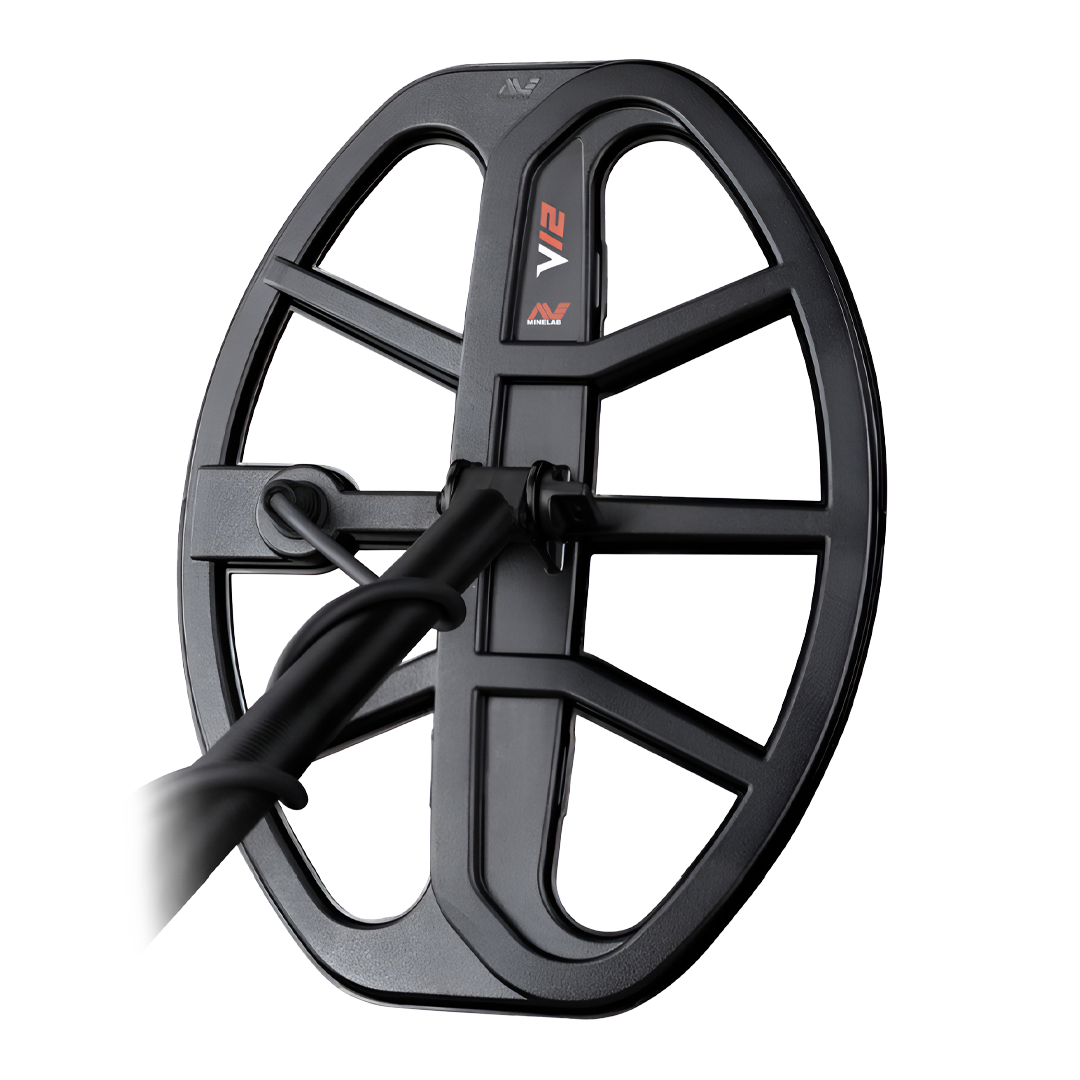

Genuine Minelab V12 waterproof DD coil, part 3011-0408, UPC 811493017235. 12 x 9 in (30 x 23 cm) elliptical Double-D, skidplate fitted. Fits the original Vanquish 340, 440 and 540 (including the 540 Pro-Pack) only. Does not fit the Vanquish 360, 460 or 560, the X-Terra Pro or Elite, or any Equinox; those take the V12X (3011-0459). Official OEM part sold by History Seekers, an authorized Minelab dealer.
Which Vanquish coil do I need: V12, V10 or V8?
This is the one most dealers skip, so here it is outright. The original Vanquish 40 series (340, 440, 540) uses the V8, V10 and V12 coils. The newer Vanquish 60 series (360, 460, 560), the X-Terra Pro and the X-Terra Elite use a different coil generation, the V8X, V10X and V12X. The letters matter. If your detector says 340, 440 or 540 on the control box, this V12 is your coil. If it says 360, 460, 560 or X-Terra, you need the V12X instead. Minelab's 460/560 manual lists the supported coils as V8X, V10X, V12X and the EQX series, and the V12 is not on that list.
Why the V12 on a Vanquish 340, 440 or 540
The V12 is the coil Minelab chose to ship on the 540, the top of the original line, and it is the largest coil made for the 40 series. Against the V10 that comes on the 340 and 440, the extra 2 in (5 cm) of length and width covers more ground per swing and reaches deeper on the open-field and beach targets the Multi-IQ Vanquish is built for. Competitor pages frame this as a mud, wet sand and salt water coil, and that is right as far as the coil goes: the V12 is waterproof to 3.3 ft (1 m), while the Vanquish control box is only rain resistant and must never be submerged. Swing it through the wash and the shallows, keep the box dry. For a 540 owner this is the factory coil back on the machine; for a 340 or 440 owner it is the single most noticeable upgrade the detector can take.
Specifications
| Part Number | 3011-0408 (Minelab "V12 Double-D 12x9 in Elliptical Coil for VANQUISH, with Skidplate") |
| UPC | 811493017235 |
| Size and shape | 12 x 9 in (30 x 23 cm) elliptical, Double-D (DD) winding |
| Fits | Minelab Vanquish 340, Vanquish 440, Vanquish 540 and 540 Pro-Pack (original 40 series) |
| Does not fit | Vanquish 360, 460, 560; X-Terra Pro, X-Terra Elite; Equinox (use the V12X, 3011-0459) |
| Waterproof | Coil to 3.3 ft (1 m); the Vanquish control box is rain resistant only |
| Factory role | Supplied coil on the Vanquish 540 and 540 Pro-Pack |
| Included | V12 coil with skidplate fitted |
| Genuine Minelab | Yes, official accessory |
Frequently Asked Questions
Does the V12 fit the Vanquish 460 or 560?
No. The 360, 460 and 560 use the V8X, V10X and V12X coils and the Equinox EQX series. For those machines order the V12X, part 3011-0459.
Will the V12 fit my X-Terra Pro or X-Terra Elite?
No. The X-Terra Pro and Elite ship with the V12X and take the V-X and EQX coils, not the original V12.
Is this the same coil that came on my Vanquish 540?
Yes. The V12 12x9 in Double-D is the supplied coil on the 540 and the 540 Pro-Pack, so this is a like-for-like factory replacement.
Can I take it in the water?
The coil is waterproof to 3.3 ft (1 m). The Vanquish control box is not submersible, so wade and swing, but keep the box above the water.
Is a skidplate included?
Yes. Minelab supplies the V12 with its skidplate fitted. A spare V12 skidplate is part 3011-0411.
Every History Seekers order is packed by people who run these machines in the field. We stock the coils because ours get swapped too. The story is more important than the artifact.
History Seekers Metal Detectors is an Authorized Minelab Dealer.
