Description

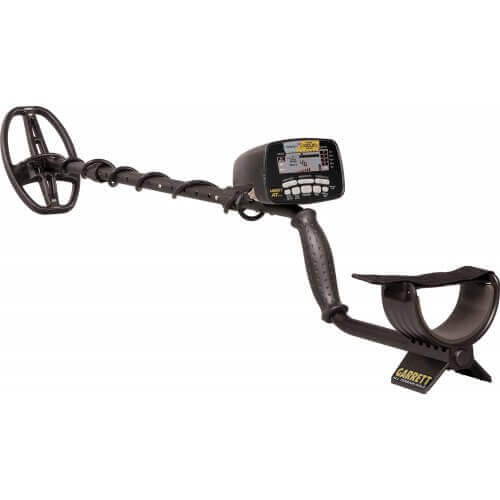

AT Gold metal detector was designed to find tiny gold nuggets in the most challenging prospecting environments, including shallow freshwater hunting.
The AT Gold operates at a high frequency optimized for gold prospecting and includes a True All Metal Mode. The All Metal Mode is preferred for prospecting because it provides the greatest possible depth and sensitivity. It also provides a continuous audio response to allow the operator to hear the subtle detection signals produced by faint targets
The AT Gold is a Motion All Metal detector, meaning that slight motion of the search coil is required to maintain detection, although static detection of targets can be achieved while in Pinpoint mode. The AT Gold includes manual and automatic Ground Balance plus an exclusive Ground Balance Window feature to optimize the detector’s performance in highly mineralized ground, where gold is most often found. This detector is also waterproof to a maximum depth of 10 feet (3 meters) for searching in freshwater lakes and streams.
In addition to its True All Metal Mode, the AT Gold includes two Discrimination Modes, making it a versatile coin and relic hunting machine. When selecting either the DISC 1 or DISC 2 mode, the operator gains more Tone ID information from targets in addition to the ability to discriminate unwanted trash targets (e.g. nails, foil, pull tabs).
* Not intended for saltwater/saltwater beach use.
Iron Audio allows you to hear discriminated iron (normally silenced) to avoid digging undesired flat iron targets such as bottle caps or washers.
NOTE: To use the Iron Audio feature, some degree of Iron Discrimination must be set. In this demonstration, the Iron Discrim setting is at 35. Without Iron Audio, both the bottle cap and silver coin sound like good targets. With the Iron Audio, the bottle cap response includes iron “grunts” to indicate this might be a trash target.
AT TECH SPECS COMPARISON
|
Z-Lynk™ Wireless Technology |
Yes (With MS-3 Z-Lynk headphones included) |
No |
No |
|
Backlight |
✔ |
No |
No |
|
Iron Discrimination Segments |
44 |
44 |
40 |
|
True All-Metal Mode |
✔ |
✔ |
No |
|
Volume Adjustment |
✔ |
No |
No |
|
Notch Discrimination |
Adjustable |
Preset (fixed) |
Adjustable |
|
Search Modes |
4, all Pro Audio |
3, all Pro Audio |
6 (3 Standard, 3 Pro) |
|
Proportional Audio |
✔ |
✔ |
✔ |
|
Standard Binary Audio |
No |
No |
✔ |
|
Fast Recovery Speed |
✔ |
✔ |
✔ |
|
Sensitivity/ Depth Adjustments |
8 |
8 |
8 |
|
Iron Audio™ (Disc. Modes) |
✔ |
✔ |
✔ |
|
Iron Audio™ (All Metal Mode) |
✔ |
✔ |
No |
|
Threshold Adjustment |
✔ |
✔ |
No |
|
Digital Target ID |
✔ |
✔ |
✔ |
|
Ground Balance, Auto/Manual |
✔ |
✔ |
✔ |
|
Ground Balance Window™ |
✔ (Automatic) |
✔ |
No |
|
Pinpoint |
✔ |
✔ |
✔ |
|
Waterproof |
✔ (to 10 feet / 3m) |
✔ (to 10 feet / 3m) |
✔ (to 10 feet / 3m) |
|
Freshwater use |
✔ |
✔ |
✔ |
|
Saltwater use |
✔ |
not recommended |
✔ |
|
Frequency |
13.6 kHz, adjustable |
18 kHz, adjustable |
15 kHz, adjustable |
|
Audio Tone ID Levels |
3 |
3 |
3 |
|
Target Depth Indicator |
✔ |
✔ |
✔ |
|
Standard Search coil |
8.5” x 11” DD PROformance™ |
5” x 8” DD PROformance™ |
8.5” x 11” DD PROformance™ |
|
Length (Adjustable) |
43" to 56" (1.09m - 1.4m) |
43" to 56" (1.09m - 1.4m) |
43" to 56" (1.09m - 1.4m) |
|
Power |
4 AA (included) |
4 AA (included) |
4 AA (included) |
|
Battery Condition Indicator |
✔ |
✔ |
✔ |
|
Warranty |
3 Years |
3 Years |
3 Years |
|
Total Weight |
3.03 lbs (1.4 kgs) |
2.8 lbs (1.27 kgs) |
3.03 lbs (1.4 kgs) |
Who you are buying from
History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. We hunt with the gear we sell, and the person who answers your call has real dirt time. Every purchase keeps everyday Americans working.
The story is more important than the artifact.
Frequently asked questions
Is the Garrett AT GOLD waterproof?

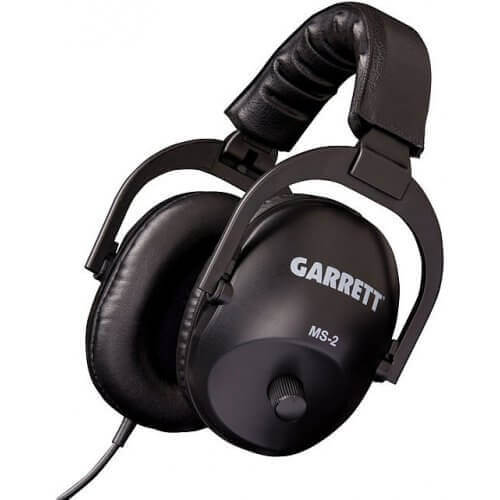

Yes, fully waterproof to 10 ft (3 m) for freshwater creeks and shallow sites. The included MS-2 headphones are for land use; submerged hunting requires wired waterproof headphones.
Why is 18 kHz good for gold?
Higher frequencies respond better to small, low-conductive targets like gold nuggets and fine jewelry. 18 kHz gives the AT GOLD strong small-gold sensitivity while staying versatile for relics and coins.
AT GOLD vs Goldmaster 24K: which gold machine?
The AT GOLD is fully submersible to 10 ft and doubles as an excellent relic machine at 18 kHz. The Goldmaster 24K runs a hotter 48 kHz with XGB auto ground balance but its control box is only rainproof. Creek prospectors lean AT GOLD; dry-ground fine-gold specialists lean 24K.
Does the AT GOLD work for relic hunting?
Yes. Its 18 kHz frequency, True All-Metal mode, and iron audio make it a favorite for small brass, buttons, and bullets in trashy relic ground.
Can the AT Gold find gold jewelry and rings, not just nuggets?
Absolutely, and that dual life is its strongest argument. The AT Gold's 18 kHz operating frequency is high enough to detect gold at nugget and fine-jewelry sizes, yet the machine remains a true all-terrain detector, waterproof to 10 ft (3 m), so the same unit that prospects a goldfield on Saturday hunts a swimming hole for lost rings on Sunday. Every detector finds gold rings; the AT Gold also holds its own on small nuggets in moderate ground. For truly tiny gold, Garrett's 48 kHz Goldmaster 24K goes further; for the worst mineralization, the Axiom pulse induction platform does.
