Description

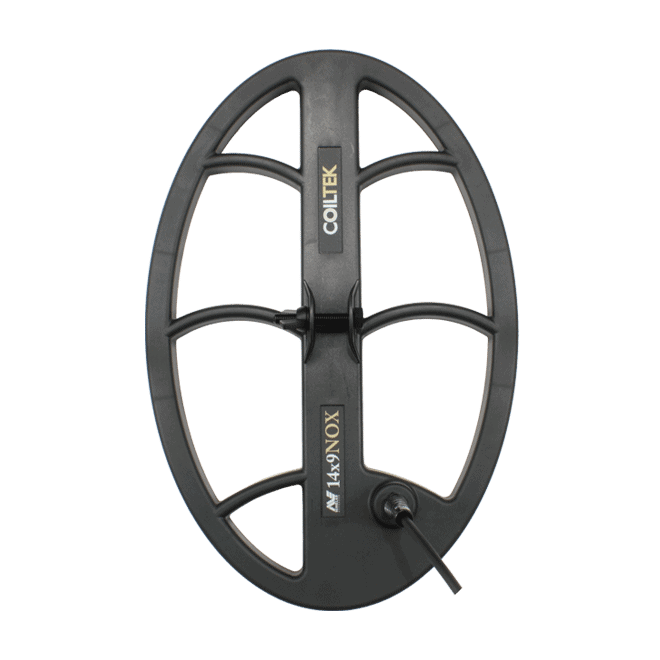

Coiltek 14x9" NOX DD Search Coil for Minelab Equinox and X-Terra
At a glance: The Coiltek 14x9" NOX is a 14 x 9 in / 350 x 225 mm elliptical Double-D search coil for the Minelab Equinox 600, 700, 800, 900, X-Terra Pro, X-Terra Elite and Vanquish 360, 460 and 560. It is the all-round NOX size: more depth and coverage than the stock coil while staying maneuverable. 790 g / 27.9 oz, waterproof (3 m or 5 m by detector), skid plate attached, 2-year warranty.
The one-coil upgrade: more ground and more depth than your stock coil, without turning your Equinox into a shovel you have to drag.
Most Equinox and X-Terra owners want the same thing from a second coil: a little more depth and a little more coverage than the stock coil, without giving up the balance and separation that make these detectors a pleasure to swing all day. The Coiltek 14x9" NOX is built to be exactly that coil. At 14 x 9 in / 350 x 225 mm it is the middle size in the NOX line, and it is the one most people should reach for first: bigger than the stock coil for depth and ground coverage, still light and nimble enough at 790 g / 27.9 oz to grid a site for hours.
Why the 14x9"
The 10x5" NOX is the finesse tool for high trash and tight spots, and the 15" and 18" are coverage coils for wide-open ground, but the 14x9" is the daily driver that handles the widest range of real sites: parks, pastures, permissions, old yards, and the beach. If you are buying one NOX coil and you are not solving a specific trash or big-field problem, this is the size. It reaches deeper than the stock coil and covers more per swing, yet its elliptical shape still lets you work edges, paths, and around obstacles the way a big round coil cannot.
It is a Double-D (DD) coil, the configuration that gives the Equinox its stable target ID and clean separation in mineralized ground. Compatibility, stated in full the way most listings do not: it fits the Minelab Equinox 600, 700, 800, and 900, plus the X-Terra Pro, the X-Terra Elite, and the Vanquish 360, 460 and 560. Waterproofing depends on the detector, so here it is straight: 3 m / 10 ft on the Equinox 600 and 800, and 5 m / 16.5 ft on the Equinox 700 and 900, the X-Terra Pro and Elite, and the Vanquish 360, 460 and 560, which makes this a real option for wading and shallow-water hunting. The skid plate is attached from the factory, and it carries a 2-year Coiltek warranty.
The Minelab Equinox, X-Terra Pro/Elite, and Vanquish 60 series (360, 460 and 560) share the same coil system, so this NOX coil is interchangeable across all three.
| Spec | Coiltek 14x9" NOX (C04-0019) |
|---|---|
| Size | 14 x 9 in / 350 x 225 mm, elliptical |
| Weight | 790 g / 27.9 oz |
| Configuration | Double-D (DD) |
| Fits | Equinox 600 / 700 / 800 / 900, X-Terra Pro, X-Terra Elite, Vanquish 360, 460 and 560 |
| Waterproof | 3 m / 10 ft (Equinox 600, 800); 5 m / 16.5 ft (Equinox 700, 900, X-Terra Pro/Elite, Vanquish 360, 460 and 560) |
| Skid plate | Attached (included) |
| Best for | All-round depth and coverage, the everyday upgrade coil |
| Warranty | 2 years (Coiltek) |
If you are not sure which NOX size fits how you hunt, call (256) 284-2247 and talk to someone who actually swings these coils. Everyone at History Seekers detects, and we would rather point you to the right size once than sell you the wrong one twice.
What's in the box
- Coiltek 14x9" (350 x 225 mm) NOX Double-D search coil
- Skid plate (attached)
- Coil bolt / washer hardware
- 2-year Coiltek warranty (register at coiltek.com.au)
