Description
Deep gold whispers, and wind across open ground is louder than a nugget signal through a speaker. The Minelab Koss UR-30 Headphones are the wired, closed-cup set Minelab supplies for the GPZ 7000, GPX 5000/4500 and CTX 3030: the detector's audio against your ears, the wind on the outside, and nothing to charge or pair for as long as the machine runs.
At a glance
Genuine Minelab Koss UR-30 Headphones, 1/4 in (6.35 mm) Jack, part 3011-0214, UPC 811493013954. Minelab's own listing: Headphone, Koss UR-30 Spare. Sold by History Seekers Metal Detectors, an authorized Minelab dealer; same-brand fitment, Minelab's own description, nothing invented.
Why this part
Minelab lists the UR-30 as the spare for the GPZ 7000, GPX 5000/4500 and CTX 3030, and the GPZ 7000 ships with this set in the box. The CTX 3030 manual rates it at 100 ohms and notes that it is not waterproof, which tells you what it is for: dry-land hunting where you want the full-size closed cup instead of an earbud. The coiled cord and gold 1/4 in (6.35 mm) stereo plug are as pictured. For a Minelab with a 3.5 mm socket, the 1/8 in (3.5 mm) to 1/4 in (6.35 mm) adaptor cable puts this headset on it.
Which Minelab machine is this for?
| Machine or coil | Fits? | Note |
|---|---|---|
| Minelab GPZ 7000 | Yes, listed by Minelab | The headset in the GPZ 7000 box. |
| Minelab CTX 3030 | Yes, listed by Minelab | 1/4 in (6.35 mm) socket; not waterproof (CTX 3030 manual). |
| Minelab GPX 5000 / 4500 | Yes, listed by Minelab | 1/4 in (6.35 mm) socket. |
| Minelab MANTICORE, EQUINOX 700 / 900, X-TERRA, GPX 6000 | With the 1/8 in (3.5 mm) to 1/4 in (6.35 mm) adaptor cable 3011-0369 | Those machines have a 3.5 mm waterproof socket. |
| Minelab SDC 2300, EXCALIBUR II | No | Their own sealed headphone connectors. |
Specs and what they mean in the field
| Spec | Value (Minelab) | What it does for you |
|---|---|---|
| Type | Closed over-ear wired headphones, adjustable headband (as pictured) | Blocks wind and background noise. |
| Impedance | 100 ohms (CTX 3030 manual) | Matched to the machines Minelab lists. |

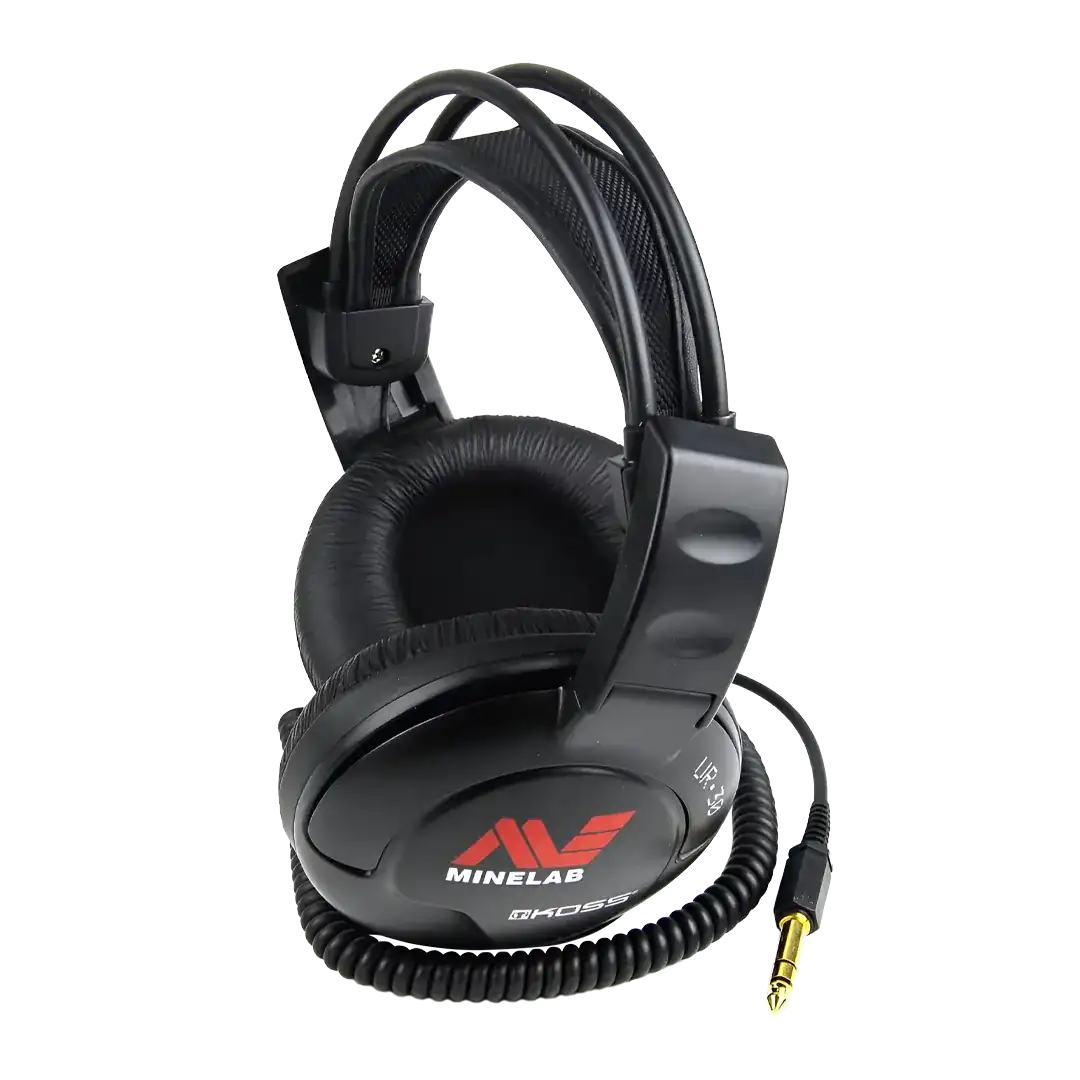

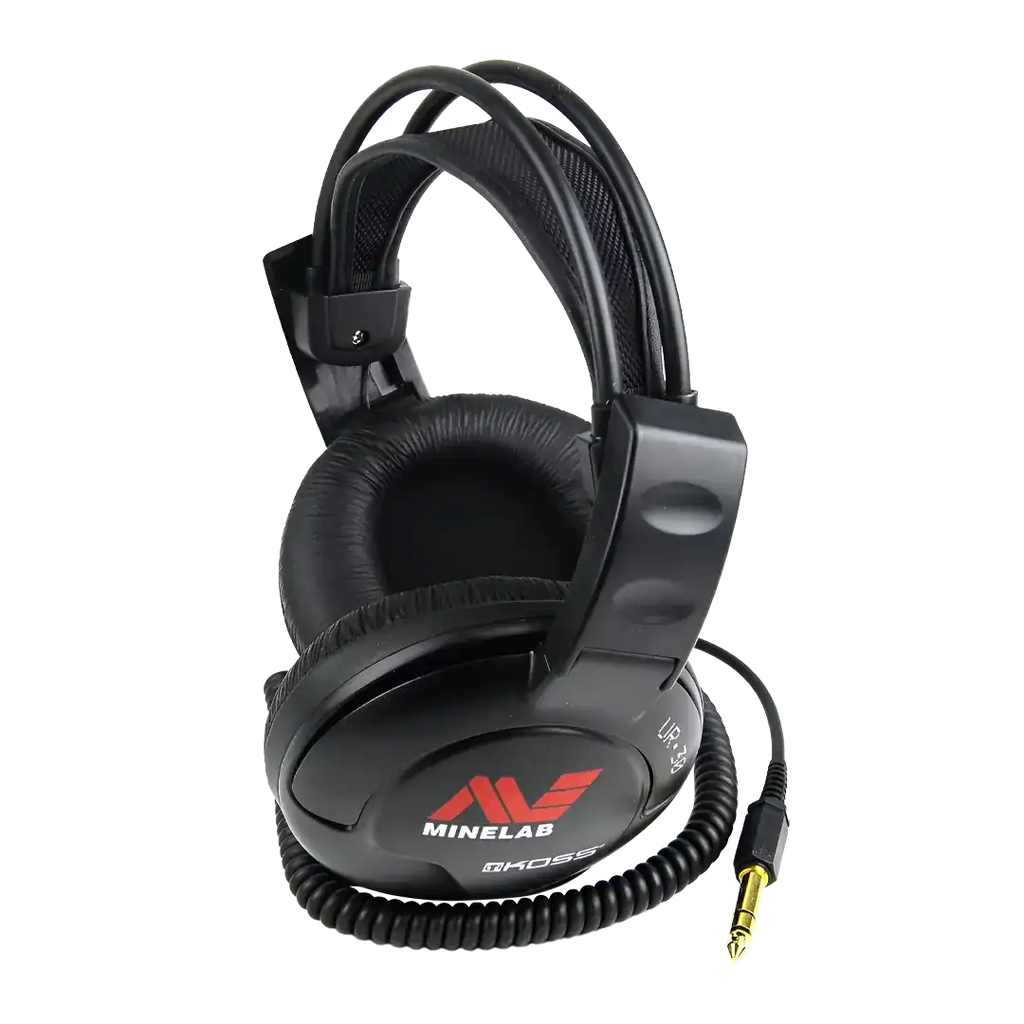

| Plug and cord | Gold 1/4 in (6.35 mm) stereo plug on a coiled cord (as pictured) | The full-size Minelab socket. |
| Water | Not waterproof (CTX 3030 manual) | Dry-land use. |
| Listed for | GPZ 7000, GPX 5000/4500, CTX 3030 (Minelab) | Genuine Minelab part 3011-0214, UPC 811493013954. |
Using it and keeping it working
Seat the plug fully and let the coiled cord take the slack rather than stretching it. Keep the set dry; it is the land headset, not a water one. Store it in the control-box bag with the cord coiled so the cups do not get crushed in the truck.
Frequently Asked Questions
Which detectors do the UR-30 headphones fit?
Minelab lists them for the GPZ 7000, GPX 5000/4500 and CTX 3030, the machines with a 1/4 in (6.35 mm) socket. On a Minelab with a 3.5 mm socket they work through the 1/8 in (3.5 mm) to 1/4 in (6.35 mm) adaptor cable, part 3011-0369.
Are they waterproof?
No. The CTX 3030 manual lists the Koss headphones as not waterproof; they are the dry-land set.
What is the impedance?
100 ohms, per the CTX 3030 manual.
Do they come with the GPZ 7000?
Yes. The GPZ 7000 ships with the Koss UR-30 set; this listing is the spare or replacement.
Is this a genuine Minelab part?
Yes, Minelab part 3011-0214, sold by History Seekers, an authorized Minelab dealer.
Who you are buying from
History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. We run the Minelab machines these parts fit, and the person who answers your call has swapped a skidplate at the truck more than once. Every purchase keeps everyday Americans working.
History Seekers Metal Detectors is an authorized Minelab dealer; every part we sell is genuine Minelab. Call 256-284-2247 if you are not sure which part your machine takes; we will check the part number against your model before you order. Because at History Seekers, the story is more important than the artifact.
