Description
You've earned your permissions the hard way, and the best ones are never tidy. The elite homesite is buried in thick brush and old fence lines. The battlefield flank is a sea of crop stubble laid over a carpet of square nails. The orchard edge is a tangle of roots and wire where the seated silver hides a hand's width from a rusty horseshoe. Swing a big standard loop into that ground, and you fight it the whole way: it is too wide to navigate the narrow gaps, and it gets swamped the instant two or three iron targets pass under it at once. Your best site punishes you for bringing only one search coil.
The Minelab Manticore Value Bundle with Backpack & M9 Search Coil fixes that problem on day one. You get out-of-the-box dual-coil versatility: sweep wide-open ground for maximum depth on the stock loop, then switch to a compact search coil that excels in heavy iron and stubble, all carried comfortably in a custom tactical transport backpack. Because this package is built specifically for the hunter who already owns an elite pinpointer, you are not paying extra for a duplicate handheld probe you do not need. As official Minelab Bundle #3228-1007, this promotional configuration saves you an instant $149.00 over buying the detector, the extra search coil, and the pack separately.
Dual-Coil Mastery Without the Duplicate Gear
Serious relic hunters and battlefield researchers do not run a single setup; they run deployments matched directly to the soil profiles. Wide pasture and open agricultural fields reward a larger search coil's ground coverage and raw depth performance. Iron-saturated camps, brush-choked homesites, and heavy stubble reward a compact search coil that separates closely spaced targets and maneuvers into tight gaps a big loop cannot physically reach. This bundle hands you both engines right out of the box. If you have already invested in a top-tier pinpointing probe, this is the smart configuration: every single dollar goes directly into field search coil flexibility and premium transport protection instead of a duplicate tool gathering dust in your gear bag.
Unleash the Power of Multi-IQ+ Technology
Every detectorist cross-shopping at this tier asks the same question: where does the depth actually come from? The honest answer is found in the transmit electronics. The Manticore runs Minelab's flagship Multi-IQ+ simultaneous multi-frequency engine, and it drives up to 50% more power to the search coil than a standard multi-frequency machine like the Equinox series.
Here is why that figure is real and not marketing fluff. Power to the coil is a function of the transmit signal that the electronics can push through the copper windings. The Manticore was built on an all-new, higher-output electronic platform with a faster, more capable processor, allowing it to energize the full spectrum of simultaneous frequencies (5, 10, 15, 20, and 40 kHz transmitted all at once, not sequentially) with significantly more transmit current than the previous generation could safely sustain. More transmit power generates a stronger eddy current in a buried target, which means a louder, cleaner return signal coming back up to the control box. But raw power alone just amplifies the ground noise floor too, so the second half of the equation is the receive side. That same upgraded processor performs far more sophisticated real-time analysis of the returning signal across all frequencies simultaneously, pulling faint high-conductor responses out of mineralized, iron-laden ground that would have completely swamped a lower-powered engine. Stronger transmit, smarter receive; that is the 50% technical advantage, and you notice it the second you sweep over deep targets.
Redefining Target Identification: The 2D Map & Target Trace
Legacy detectors collapse every buried object onto a single one-dimensional number line, creating a flat Target ID from ferrous to high-conductor. The problem is obvious to anyone who has hunted iron: a deep silver coin and a nasty piece of trash can land on the exact same number, and you will never know which is which until you are on your knees shifting dirt.
The Manticore tears up that limitation with its Two-Dimensional Target ID Map. Instead of one axis, targets are plotted across two: conductivity on one axis (0–99, with 100 conductive segments) and ferrous content on the other (50 ferrous segments). A bottle cap and a deep, large cent no longer share a hiding spot; they separate visually into completely different territories on the display map. Layered on top is Target Trace, which renders the consistency and probability of a hit as a live, heat-style cloud on the color display. A solid, repeatable good target paints a tight, stable signature, while junk and ground noise scatter as a faint, unstable smear. Backed by the Manticore's advanced iron bias for tuning out ferrous wrap-around falsing, the 2D map splits the trace and visually unmasks good metal sitting directly against iron before you ever break ground.
The Minelab M9 Search Coil: The Perfect Balance of Depth and Separation
The M9 search coil is the tactical sweet spot of this kit. It is a round 9-inch (23 cm) Double-D configuration and stands as the lightest coil in the entire Manticore range, weighing just 12.7 ounces (362 grams) with its protective skidplate fitted. Experienced detectorists know that search coil selection is always a game of trade-offs: massive loops give you raw depth but get swamped in iron trash, while specialized, smaller footprints like the M8 separate beautifully but force you to give up serious depth across the site. The M9 stands as the perfect compromise between those two extremes, delivering the ultimate functional balance on difficult ground:
- The Golden Middle of Depth and Separation: Instead of dropping massive deep-seeking horsepower like a tighter M8 coil, the 9-inch (23 cm) round footprint shrinks the detection window just enough to isolate good non-ferrous targets from surrounding iron trash halos while still maintaining excellent, competitive depth across the site.
- Noticeable Weight Reduction: Shaving significant physical mass compared to the standard M11 search coil, the M9 delivers an incredibly balanced, nose-light swing. This weight drop lets you hunt brutal ground from sunup to sundown without the arm and shoulder fatigue that slows down your sweep speed.
- Maneuverability in Brutal Environments: The tighter, compact round profile provides exceptional maneuverability, allowing you to sweep flat against the surface between heavy crop stubble, tight tree root ball networks, rocks, and old fence lines, where the larger M11 loop simply gets caught up and blocked.
- Surgical Iron Masking Defeat: Working in total harmony with the Manticore's fast recovery speed, the M9 illuminates fewer targets at once, ensuring that deep coins or historical relics touching rusted square nails ring through as clean, distinct, and repeatable signals.
The Official Minelab Backpack: Tactical Protection on the Trail
The official Minelab backpack is custom-engineered around the Manticore's exact physical geometry to move your dual-coil kit safely into remote ground. It features a dedicated collapsible detector compartment that cradles the carbon-fiber shaft and control pod, eliminating the flex and pressure stress a generic bag puts on the components. It includes separate padded sleeves that keep the M9 and the standard search coil from grinding against each other or your high-resolution screen, and it is stitched from heavy-duty, water-resistant fabric built to shrug off torrential downpours, mud, and dense brush on the long walk in and out. Both search coils and the detector travel together, completely organized and protected.

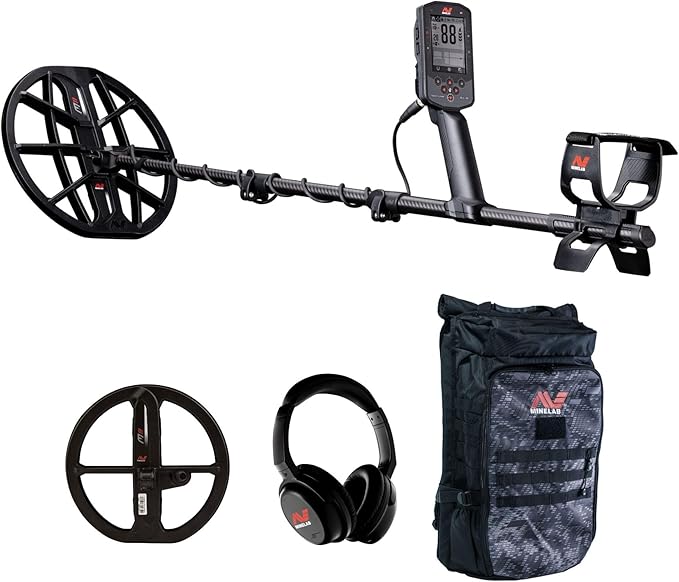

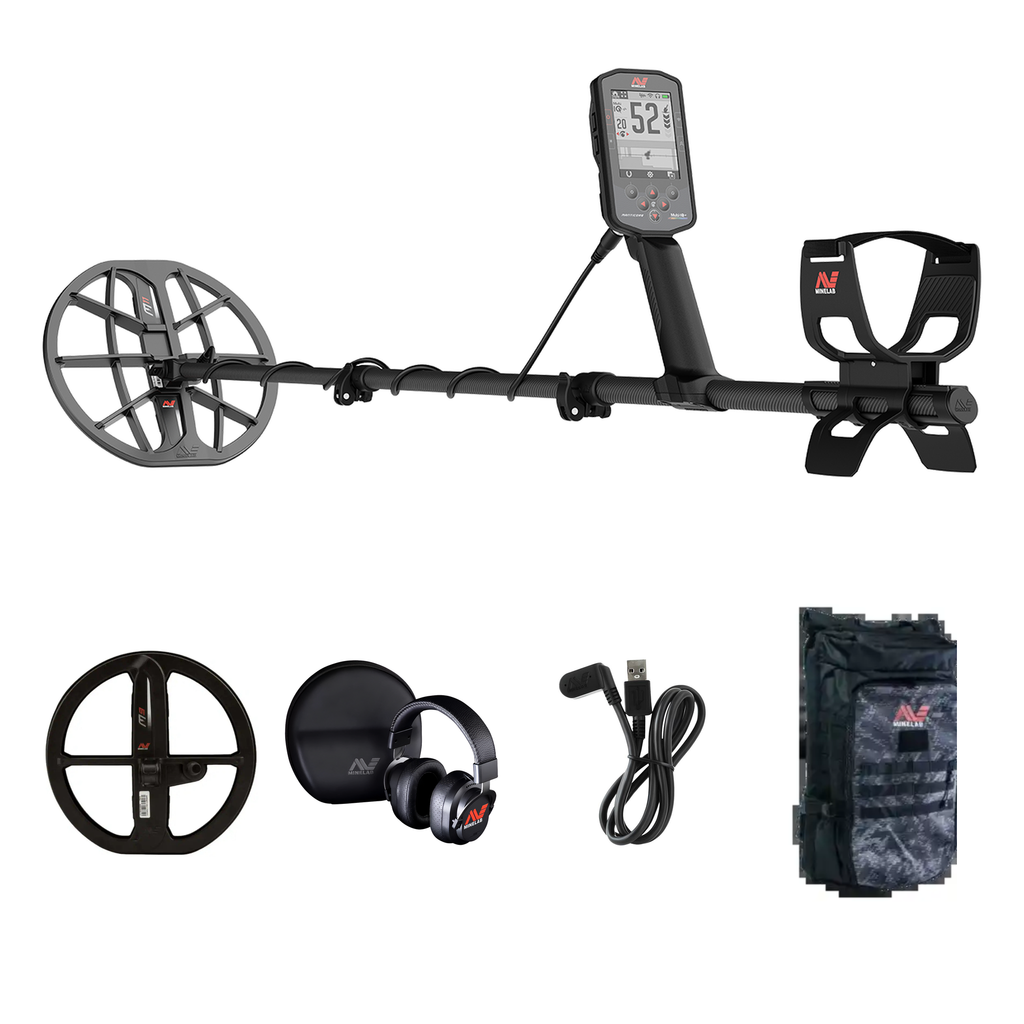

What Comes in the Box (Minelab Bundle #3228-1007 Checklist)
The complete, official promotional bundle configuration with fixed components as regulated by Minelab:
- Minelab Manticore Control Pod & Shaft Assembly: The full flagship detector
- M11 11-inch (28 cm) Double-D Standard Search Coil: Waterproof with fitted factory skidplate
- M9 9-inch (23 cm) Double-D Search Coil: The lightest coil in the Manticore range, waterproof with fitted factory skidplate
- Official Premium Minelab Tactical Backpack: Factory-engineered transport system
- ML105 Low-Latency Wireless Headphones: Complete with protective factory carry case
- Magnetic Charging & Data Cable and 3.5 mm (1/8 inch) Wired Audio Cable
- 5-Pack of Clear LCD Screen Protectors: Keep your display field-fresh
- 3-Year Manufacturer Factory Warranty: Active on the Manticore control box and both search coils
Technical Specifications
Manticore Detector
- Detection Engine: Multi-IQ+ high-power simultaneous multi-frequency (5, 10, 15, 20, 40 kHz + Multi-IQ+)
- Target ID: Two-Dimensional Target ID Map — 100 conductive segments & 50 ferrous segments, with Target Trace
- Search Modes: 10 customizable search modes (All Metal, All Terrain, Beach, Goldfield) plus a custom user profile
- Iron Control: Advanced iron bias with adjustable ferrous rejection limits
- Weight: 2.9 lbs (1.3 kg) structured on a rigid, highly collapsible carbon-fiber chassis
- Length: Fully extended 56.7 in (144 cm) / Collapsed transport length 24.8 in (63 cm)
- Waterproof Rating: Fully submersible, waterproof to 16 feet (5 meters), IP68 rated
- Battery Specs: Up to 9–10 hours of continuous field use; approximately 7-hour charge time via low-profile magnetic USB
- Warranty: 3-year manufacturer's factory warranty (control pod and coils)
Search Coils
- Standard Search Coil: M11 round 11-inch (28 cm) Double-D: High-performance all-rounder, waterproof to 16 feet (5 meters)
- M9 Search Coil: Round 9-inch (23 cm) Double-D: Lightest Manticore coil at 0.8 lbs (12.7 oz / 362 g) with skidplate, waterproof to 16 feet (5 meters)
Where the Manticore Backpack & M9 Bundle Excels
This configuration is purpose-built for site-clearing operations run by hunters who already own their preferred handheld locating probe. On iron-saturated battlefields and historic camps, you sweep wide with the standard search coil for deep coverage, then drop to the compact M9 to surgically separate good targets from dense nails and scattered lead. On historic homesites, old orchards, and agricultural fields choked in brush, fence wire, and heavy crop stubble, the compact 9-inch (23 cm) M9 maneuvers smoothly through tight gaps that a large loop cannot touch, giving you full multi-coil flexibility without spending a dollar on a duplicate pinpointer.
Frequently Asked Questions
Why pick this bundle over the version that includes the Pro-Find 40?
Because you already own a pinpointer you trust. This bundle puts your money exactly where it adds physical field capability, an extra search coil, and a tactical transport pack, instead of a duplicate handheld probe. You get the identical Minelab Manticore detector, the official backpack, and the addition of the lightweight M9 search coil for dual-coil versatility. If you do not yet own a quality pinpointer, step up to the Pro Pack or Ultimate Field Bundle, which includes the Pro-Find 40; if your probe needs are already covered, this is the most efficient configuration available.
Are both the standard search coil and the M9 coil fully waterproof?
Yes, both are fully submersible to the same depth as the detector itself, meaning they are completely waterproof to 16 feet (5 meters). The M11 standard search coil and the M9 search coil are factory-sealed waterproof units equipped with protective skidplates, and the Manticore control pod carries an industrial IP68 rating to 16 feet (5 meters). You can work confidently in heavy surf, rushing rivers, thick mud, and pouring rain, no matter which search coil is mounted to your shaft.
Are these bundle components fixed, and do they ship under a single part number?
Yes. This is an official, factory-sanctioned 2026 Minelab Bundle Program configuration. The detector, both search coils, and the tactical backpack are packed and shipped together from the distributor under a single manufacturer SKU (#3228-1007). These bundle components are fixed and cannot be substituted as regulated by Minelab, with your full factory consumer warranties active from day one.
Looking for a different official Minelab configuration? Explore the factory-approved 2026 Value Bundles:
• View the standard Minelab Manticore Base Kit
• View the Manticore Value Bundle + Backpack ($49 Savings)
• View the Manticore Value Bundle + Backpack & M9 Search Coil ($149 Savings)
• View the Manticore Pro Pack + Backpack & Pro-Find 40 ($98 Savings)
• View the Manticore Ultimate Field Bundle + Backpack, Pro-Find 40 & M9 Search Coil ($198 Savings)
History Seekers Metal Detectors is an Authorized Minelab Dealer. This is an official factory promotional bundle.
