Description
You know the walk. It is two or three miles (3 to 5 kilometers) of timber to reach the colonial homesite. A creek crossing, a barbed-wire fence, and a steep grade up to the old mining camp can leave your flagship detector slung over one shoulder in a generic gear bag. The carbon-fiber shaft flexes against your back with every step, leaving the high-resolution screen one unlucky branch away from a scratch you will see on every hunt for years. You spent serious money on the best machine in the hobby, yet you are transporting it like an afterthought. That low-grade anxiety follows you the whole way in.

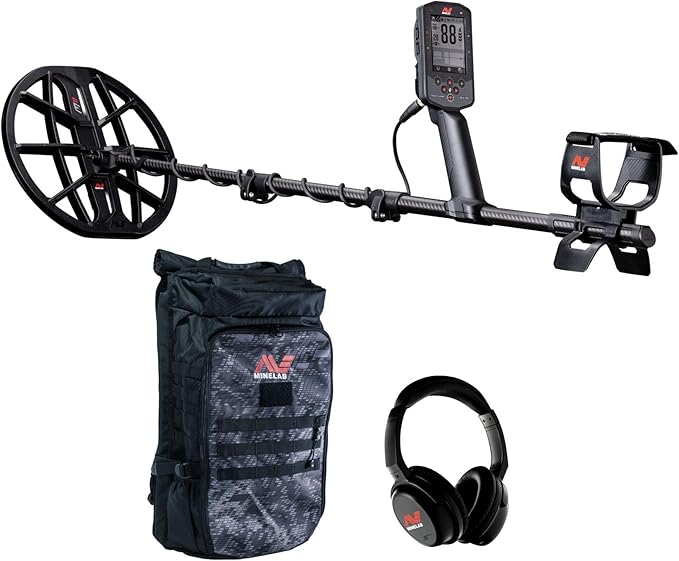

The Minelab Manticore Value Bundle ends that frustration completely. You get the uncompromised, flagship Multi-IQ+ simultaneous multi-frequency depth of the Manticore paired with a factory-engineered, tactical transport system purpose-built to get that machine into remote ground intact and ready to swing. This is official Minelab Bundle #3228-1003, a factory-sanctioned package that delivers an instant $49.00 savings over buying the detector and the backpack separately. You receive the exact same warranty and the same factory seal for less money out of pocket.
Flagship Performance Built for the Trail
This bundle is not a discount on a lesser machine; it is the full Manticore, the deepest and highest-resolution detector Minelab has ever built, matched to the gear that gets it there. For the backcountry relic hunter and the mobile treasure hunter, performance at the target is only half the equation. The other half is arriving at the site with your shaft true, your coil unmarked, and your screen pristine. The official Minelab backpack closes that gap completely, so the only thing you are thinking about at the dig site is what is under your coil.
Unleash the Power of Multi-IQ+ Technology
Every detectorist cross-shopping at this tier asks the same question: where does the depth actually come from? The honest answer is found in the transmit electronics. The Manticore runs Minelab's flagship Multi-IQ+ engine, and it drives up to 50% more power to the search coil than a standard multi-frequency machine like the Equinox.
Here is why that figure is real and not marketing fluff. Power to the coil is a function of the transmit signal that the electronics can push through the windings. The Manticore was built on an all-new, higher-output electronic platform with a faster, more capable processor. It can energize the full spectrum of simultaneous frequencies (5, 10, 15, 20, and 40 kHz transmitted at once, not sequentially) with significantly more transmit current than the previous generation could sustain. More transmit power generates a stronger eddy current in a buried target, which means a louder, cleaner return signal coming back up. Raw power alone just amplifies the noise floor, so the second half of the equation is the receive side. That same upgraded processor performs far more sophisticated real-time analysis of the returning signal across all frequencies simultaneously, pulling faint high-conductor responses out of mineralized, iron-laden ground that would have swamped a lower-powered engine. Stronger transmit, smarter receive; that is the 50% power increase, and it delivers depth you can carry miles from the truck.
Redefining Target Identification: The 2D Map & Target Trace
Legacy detectors collapse every buried object onto a single one-dimensional number line, creating a flat Target ID from ferrous to high-conductor. The problem is obvious to anyone who has hunted iron: a deep silver coin and a nasty piece of trash can land on the exact same number, and you will never know which is which until you are on your knees.
The Manticore tears up that limitation with its Two-Dimensional Target ID Map. Instead of one axis, targets are plotted across two: conductivity on one axis (0–99, with 100 conductive segments) and ferrous content on the other (50 ferrous segments). A bottle cap and a deep large cent no longer share a hiding spot; they separate visually into different territories on the map. You stop guessing and start seeing.
Layered on top is Target Trace, which renders the consistency and probability of a hit as a live heat-style cloud on the display. A solid, repeatable good target paints a tight, bright, stable signature; junk and ground noise scatter as a faint, smeared, unstable haze. As you work a target from multiple angles, Target Trace builds a picture in real time, letting you read masked, multi-target, and edge-on coins with a confidence no single-number ID can give you. Miles into the timber, where every dig costs you energy, that certainty is exactly what you want.
Advanced Iron Bias & Fast Recovery Speed
Depth is worthless if you cannot reject the iron. The Manticore's advanced iron bias gives you granular control over how aggressively the detector discounts the ferrous "wrap-around" falsing that plagues old battlefields, homesites, and mining camps. This allows you to tune out flat iron and large rusted relics that try to masquerade as good high-conductors, without sacrificing the faint deep targets you hiked all that way to find.
Pair that with the Manticore's genuinely fast recovery speed and the machine comes alive in dense trash. Recovery speed is how quickly the detector resets and processes between one target and the next; a slow machine blends two close targets into one muddy response, causing the good coin to hide behind an iron nail. The Manticore's processing headroom lets it recover almost instantly between hits, so a keeper sitting inches from iron still rings clean and distinct. In iron-infested ground, recovery speed is unmasking; this is where the Manticore separates itself from the pack.
The Official Minelab Backpack: Tactical Protection on the Move
This is not a foam-lined gimmick stitched together for a promotion. The official Minelab backpack is engineered around the Manticore's exact geometry to move your flagship system through rough country without compromise.
- Dedicated collapsible detector compartment: The Manticore folds down and seats into a purpose-shaped bay that cradles the carbon-fiber shaft and control pod, eliminating the flex and pressure stress a generic bag puts on the assembly.
- Separate accessory coil sleeves: Padded, isolated sleeves keep spare coils from grinding against the shaft or each other, keeping extra hardware safely away from your high-resolution screen.
- Water-resistant heavy-duty fabric: Rugged, abrasion-resistant shell built to shrug off heavy downpours, thick brush, and mud on the long walk in and out.
- Ergonomic load and weight distribution: An advanced back and strap system balances the load perfectly across your frame, so a multi-mile approach to a remote site does not leave you spent before your first swing.
What Comes in the Box (Minelab Bundle #3228-1003 Checklist)
The complete, factory-sealed promotional bundle, exactly as it ships from Minelab:
- Minelab Manticore Control Pod & Shaft Assembly: The full flagship detector
- Official Minelab Tactical Backpack: Factory-engineered tactical transport system
- M11 11-inch (28 cm) Double-D Smart Coil: The high-performance all-rounder for land, beach, and surf
- ML105 Low-Latency Wireless Headphones: Includes a protective factory carry case
- Magnetic Charging & Data Cable: Fast, low-profile charging of the internal lithium-ion battery and seamless firmware updates
- 3.5 mm (1/8 inch) Wired Headphone Audio Cable: For optional wired use straight out of the box
- 5-Pack of Clear LCD Screen Protectors: Keep that full-color LCD field-fresh
- 3-Year Manufacturer Factory Warranty: Covering both the control box and the smart search coil
Technical Specifications
- Detection Engine: Multi-IQ+ high-power simultaneous multi-frequency (5, 10, 15, 20, 40 kHz + Multi-IQ+)
- Target ID: Two-Dimensional Target ID Map — 100 conductive segments & 50 ferrous segments, with Target Trace
- Search Modes: 10 customizable search modes (All Metal, All Terrain, Beach, Goldfield) plus a custom user profile
- Iron Control: Advanced iron bias with adjustable ferrous rejection limits
- Standard Search Coil: M11 11-inch (28 cm) Double-D coil, fully waterproof with fitted factory skidplate
- Display: Full-color LCD with adjustable backlight, backlit keypad, and built-in utility flashlight
- Weight: 2.9 lbs (1.3 kg) structured on an ultra-light carbon fiber collapsible shaft system
- Length: Fully extended 56.7 in (144 cm) / Collapsed transport length 24.8 in (63 cm)
- Waterproof Rating: Fully submersible, waterproof to 16 feet (5 meters), IP68 rated
- Battery Run Time: Up to 9–10 hours of continuous field use
- Charge Time: Approximately 7 hours via low-profile magnetic USB connectivity
- Battery Cell: Internal rechargeable lithium-ion (3.7 V / 6800 mAh, 25 Wh)
- Audio Output: Built-in loudspeaker, low-latency wireless (ML105), and wired 3.5 mm (1/8 inch) output
- Target Feedback: Proportional handle vibration mode for low-visibility and underwater hunting
- Warranty: 3-year manufacturer factory warranty (control box and search coil)
Where the Manticore Backpack Bundle Excels
This bundle is in its element wherever the hunt requires a hike. For backcountry relic hunters pushing miles into deep timber battlefields, colonial homesites, and old mining camps, it delivers flagship depth with the transport protection to get there intact. For shoreline beach walkers covering long stretches of sand, and for traveling treasure hunters loading gear in and out of trucks, trunks, and overhead bins, this rugged, water-resistant pack keeps the whole kit organized, balanced, and field-ready from the first mile to the last.
Frequently Asked Questions
What makes the Multi-IQ+ engine different from the standard Equinox multi-frequency?
Both systems transmit multiple frequencies simultaneously rather than one at a time, but the Manticore's Multi-IQ+ is a generation ahead on both ends of the signal. On the transmit side, the Manticore's all-new, higher-output electronics drive up to 50% more power to the coil than the Equinox multi-frequency engine. A stronger transmit field means a stronger eddy current response from deep targets. On the receive side, a faster, more capable processor analyzes the returning signal across all frequencies with far greater resolution, which is what feeds the Two-Dimensional Target ID Map and Target Trace. The net effect is more depth, cleaner separation in mineralized or trashy ground, and a far richer picture of what is actually under your coil.
Is the official Minelab backpack completely waterproof?
No, and it is important to be precise here. The backpack is built from heavy-duty, highly water-resistant fabric engineered to protect your gear against heavy downpours, wet brush, and mud on the trail. It is not a sealed, submersible dry-bag; keep it out of standing water and deep creek crossings. The detector itself is a different story: the Manticore is fully submersible and waterproof to 16 feet (5 meters), carrying an IP68 rating, meaning the machine can easily go where the pack should not.
Can I add additional search coils or a pinpointer to this pack later?
Absolutely, that is exactly what it was designed for. The official Minelab backpack features built-in expansion sleeves sized to carry accessory coils such as the M8 and M15, plus a dedicated slot for your handheld pinpointer. You can build this bundle out into a complete field loadout over time without buying another bag; you can pack your large M15 for open ground, a tight M8 for trashy sites, and your pinpointer all in their own protected spaces.
Looking for a different official Minelab configuration? Explore the factory-approved 2026 Value Bundles:
• View the standard Minelab Manticore Base Kit
• View the Manticore Value Bundle + Backpack ($49 Savings)
• View the Manticore Value Bundle + Backpack & M9 Search Coil ($149 Savings)
• View the Manticore Pro Pack + Backpack & Pro-Find 40 ($98 Savings)
• View the Manticore Ultimate Field Bundle + Backpack, Pro-Find 40 & M9 Search Coil ($198 Savings)
History Seekers Metal Detectors is an Authorized Minelab Dealer. This is an official factory promotional bundle.
