Description
The Minelab Manticore metal detector is engineered for high-performance target separation in heavily hunted sites choked with iron infrastructure, modern debris, and mineralized ground. In treasure hunting terms, that separation is the difference between digging the keeper and walking past it. Operating as Minelab's deepest and highest-resolution machine, it features an advanced simultaneous multi-frequency architecture and a live Two-Dimensional Target ID Map. This platform allows operators to visually isolate deep, masked targets where standard single-frequency and basic multi-frequency machines fail to separate the trash from non-ferrous targets.
At a glance

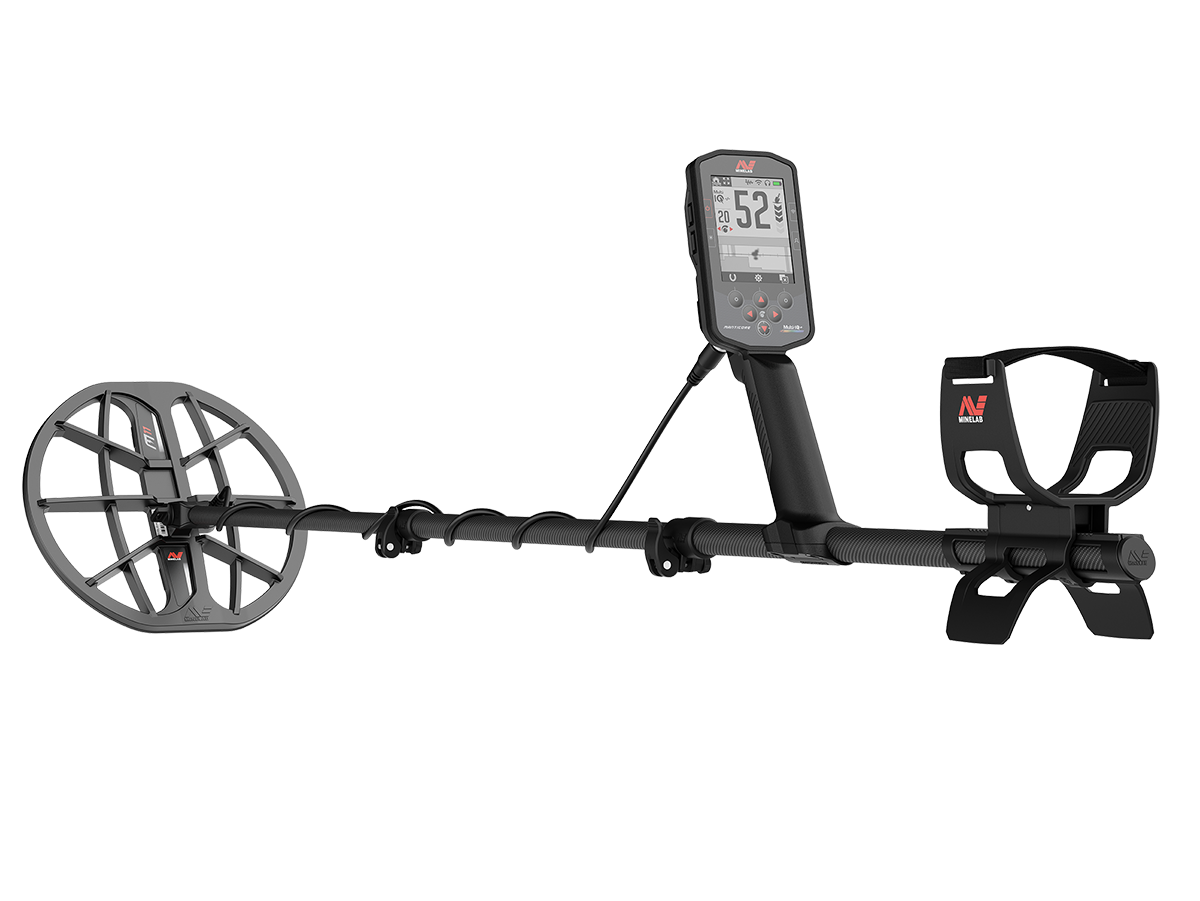

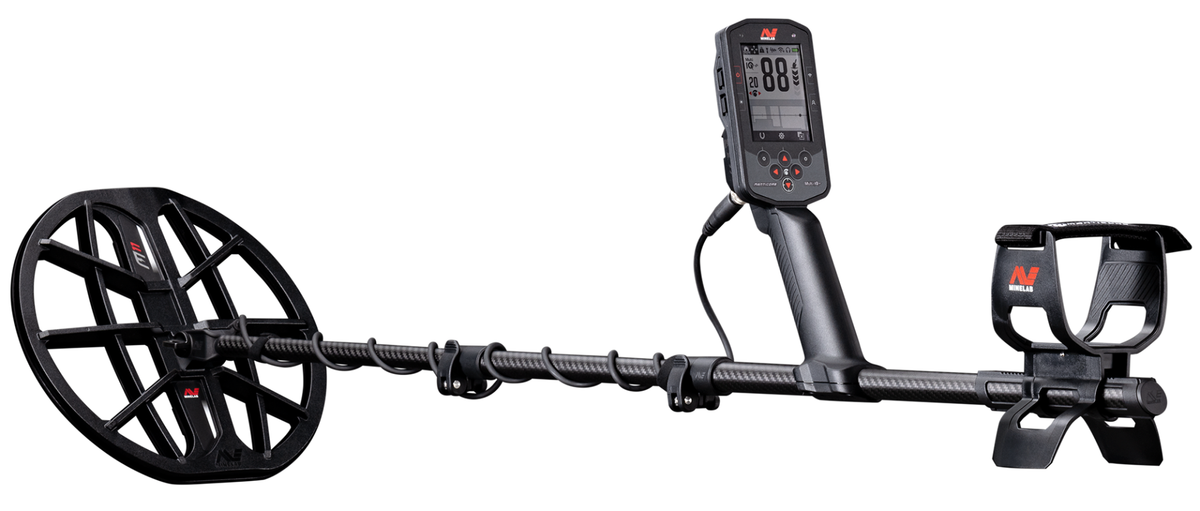

The Minelab Manticore is Minelab's flagship simultaneous multi-frequency detector: Multi-IQ+ with up to 50 percent more transmit power than the Equinox series, a Two-Dimensional Target ID Map with Target Trace, 2.9 lb (1.3 kg) on a carbon fiber shaft, waterproof to 16 ft (5 m, IP68). Ships with the M11 11 in (28 cm) search coil and ML105 wireless headphones. 3 year warranty.
Exclusive History Seekers bonus: free with every Manticore base kit
Buy your Manticore from History Seekers and receive a free 1-year subscription to American Digger Magazine, the definitive print resource for relic hunters, coin shooters, and serious diggers. Real finds, real research, and real history delivered directly to your door. This bonus is available exclusively through HistorySeekers.net.
Notice: the free subscription offer applies strictly to listed prices. It cannot be combined with other discount codes or promotions. If a coupon or promotional discount is used at checkout, the free magazine subscription is excluded.
High-Power Multi-IQ+ Technology
The core depth of the Manticore stems directly from its upgraded transmit electronics. Driving up to 50% more power to the search coil than standard multi-frequency platforms, the Manticore runs an enhanced Multi-IQ+ simultaneous multi-frequency engine. This all-new electronic platform utilizes a high-output processor to energize the full spectrum of frequencies (5, 10, 15, 20, and 40 kHz transmitted simultaneously) with significantly higher current. This increased transmit power generates a stronger eddy current in buried targets, resulting in a louder, more distinct return signal. On the receive side, the processor performs complex real-time signal analysis across all active frequencies to pull faint high-conductor responses out of heavily mineralized or iron-laden soils.

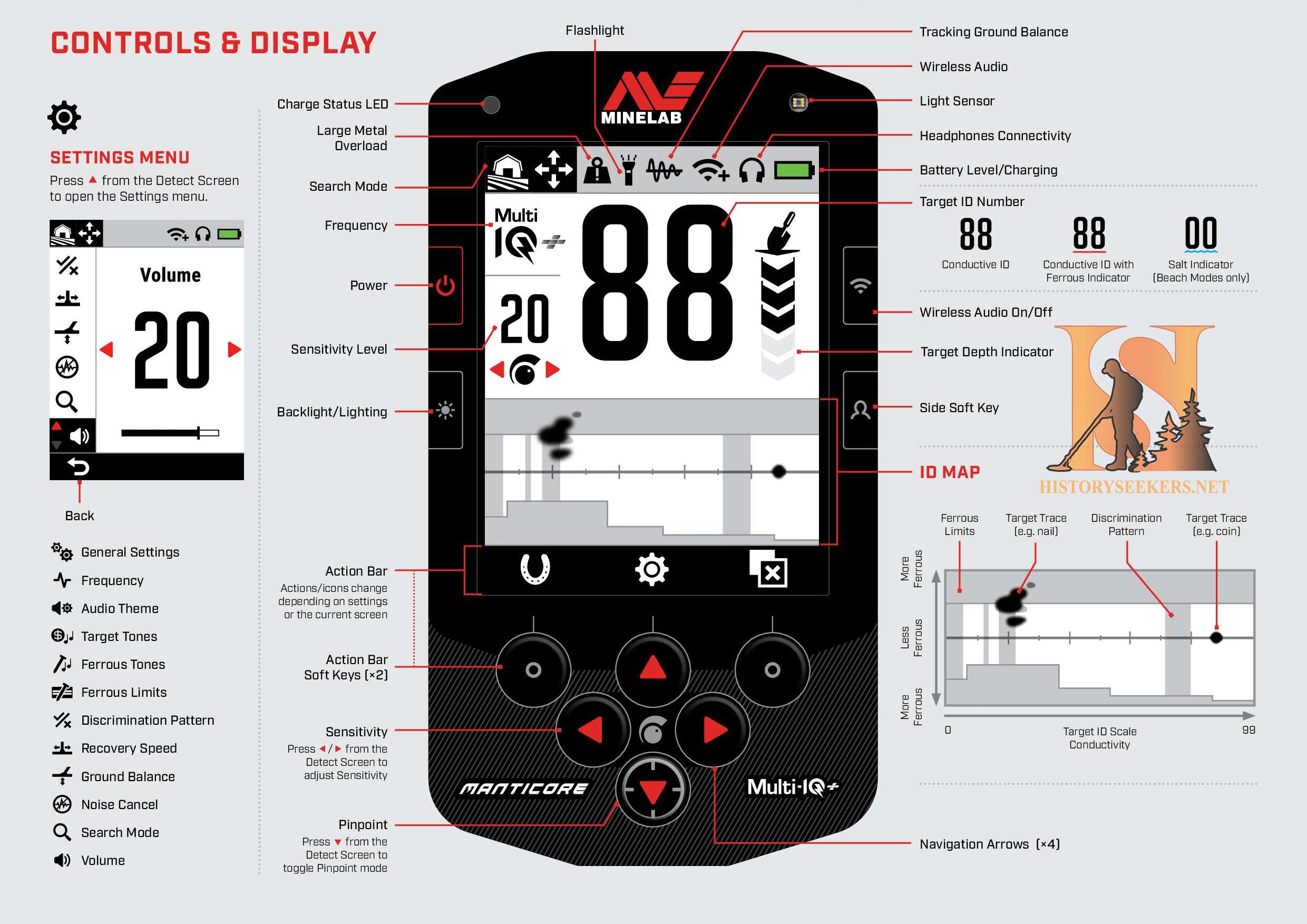

Advanced Target Identification: The 2D Map & Target Trace

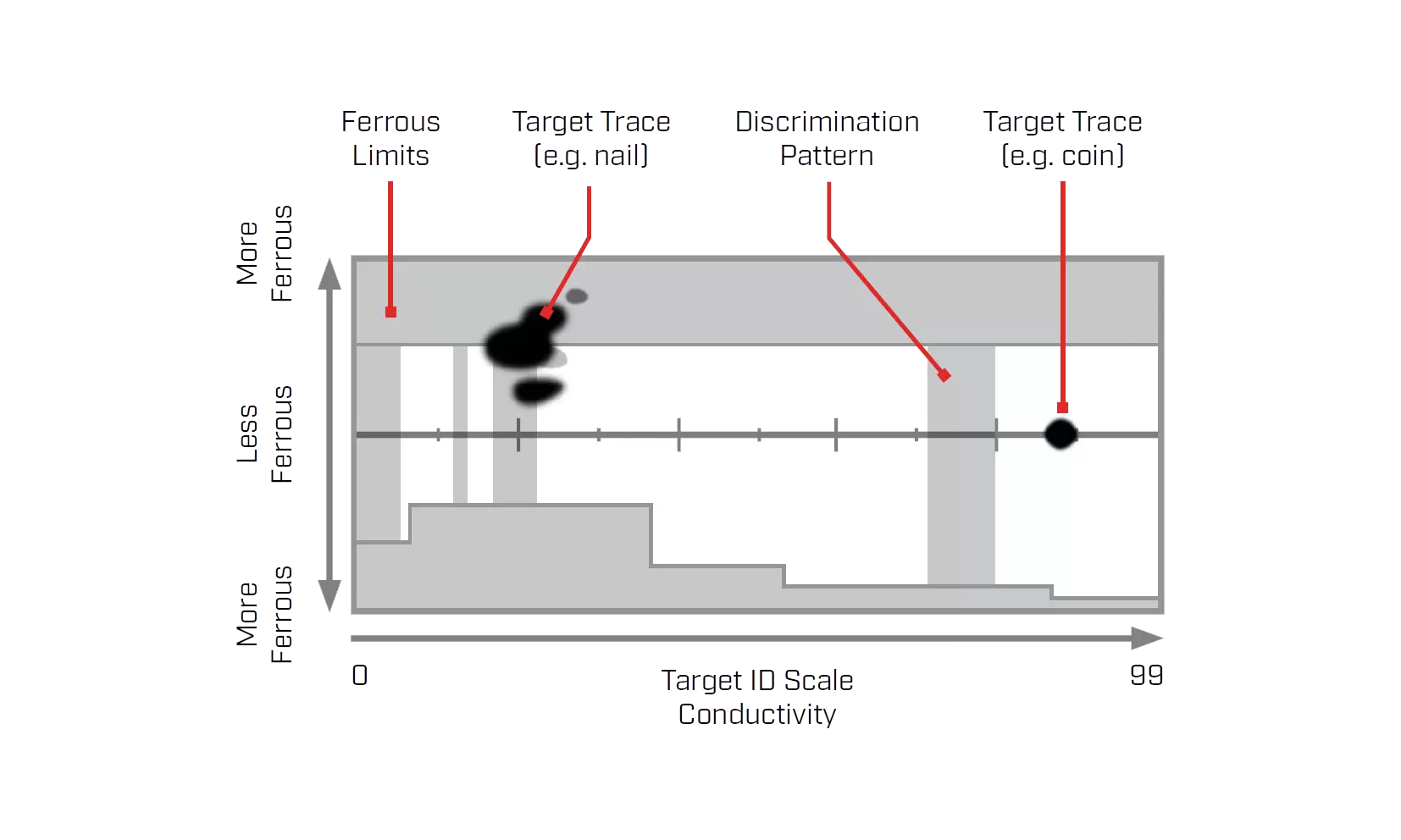

Standard detectors collapse buried objects onto a one-dimensional linear target number line, which frequently causes deep coins and ferrous trash to register as identical numbers. The Manticore eliminates this limitation with its Two-Dimensional Target ID Map, plotting targets across two independent axes: conductivity (0 to 99, featuring 100 conductive segments) and ferrous content (featuring 50 ferrous segments). This split allows a bottle cap and a deep coin to separate visually into distinct territories on the screen.
Layered on top of this mapping system is Target Trace, which analyzes and renders the consistency and probability of a target signal as a live, heat-style visual cloud. A solid, repeatable target paints a tight, bright, and stable signature, while junk and ground noise scatter across the display as a faint, unstable haze. This real-time visualization helps operators identify masked, multi-target, and edge-on coins with high confidence before digging.
Advanced Iron Bias & Fast Recovery Speed
To ensure deep targets can be identified within iron-heavy ground, the Manticore features an advanced iron bias system. This gives the operator granular control over how aggressively the detector discounts the ferrous wrap-around falsing common to old battlefields and public parks, allowing you to tune out flat iron and large rusted relics without sacrificing faint, deep non-ferrous targets.
This iron control is paired with a highly responsive, fast recovery speed. By decreasing the processing time required to reset between consecutive targets, the Manticore prevents close-proximity targets from smearing together. When a valuable coin rests only 1 to 2 inches (2.5 to 5.0 cm) away from a rusted nail, the fast recovery processing isolates the signals, ensuring the keeper rings clean and distinct rather than being masked by the nearby iron.

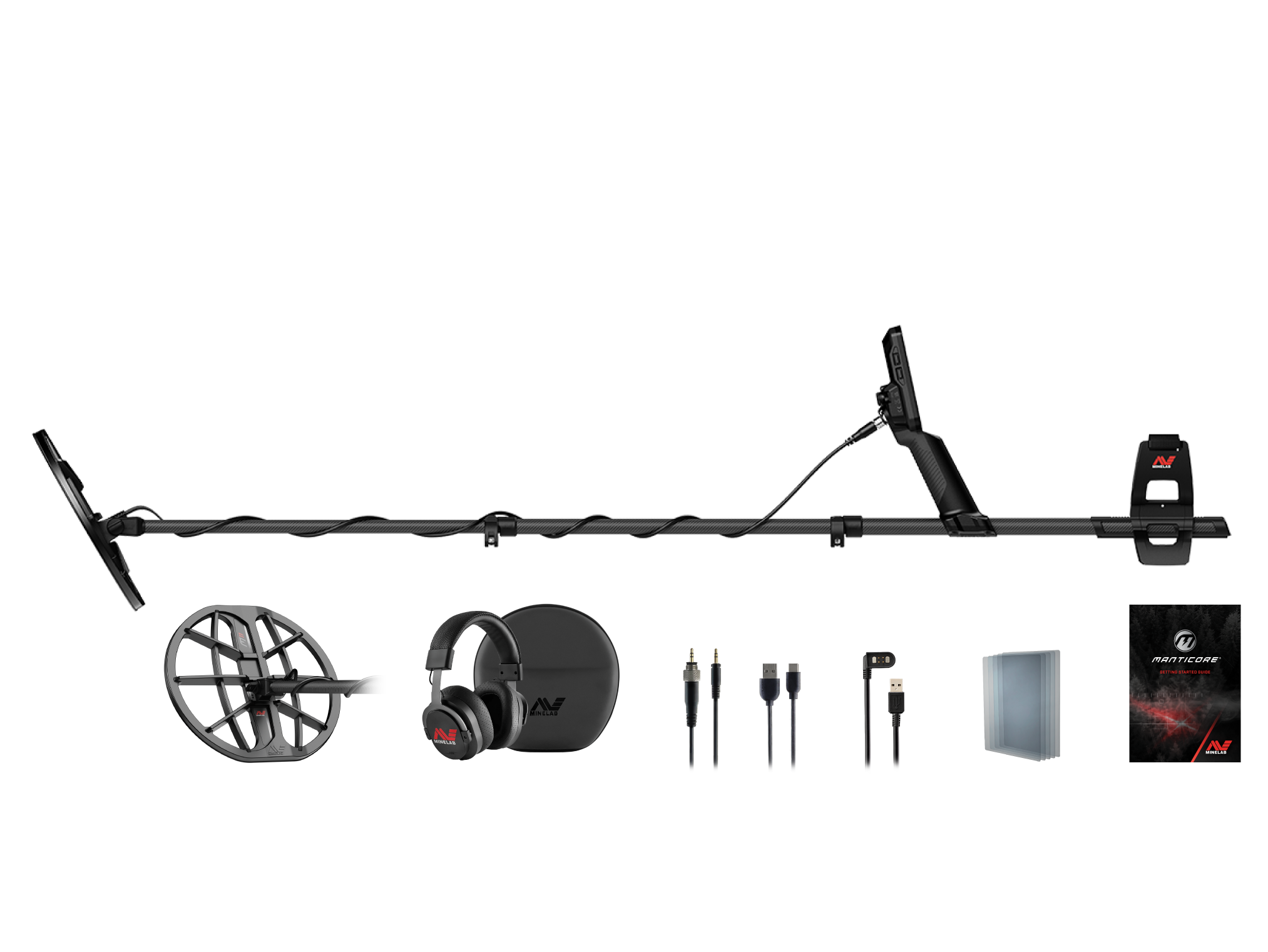

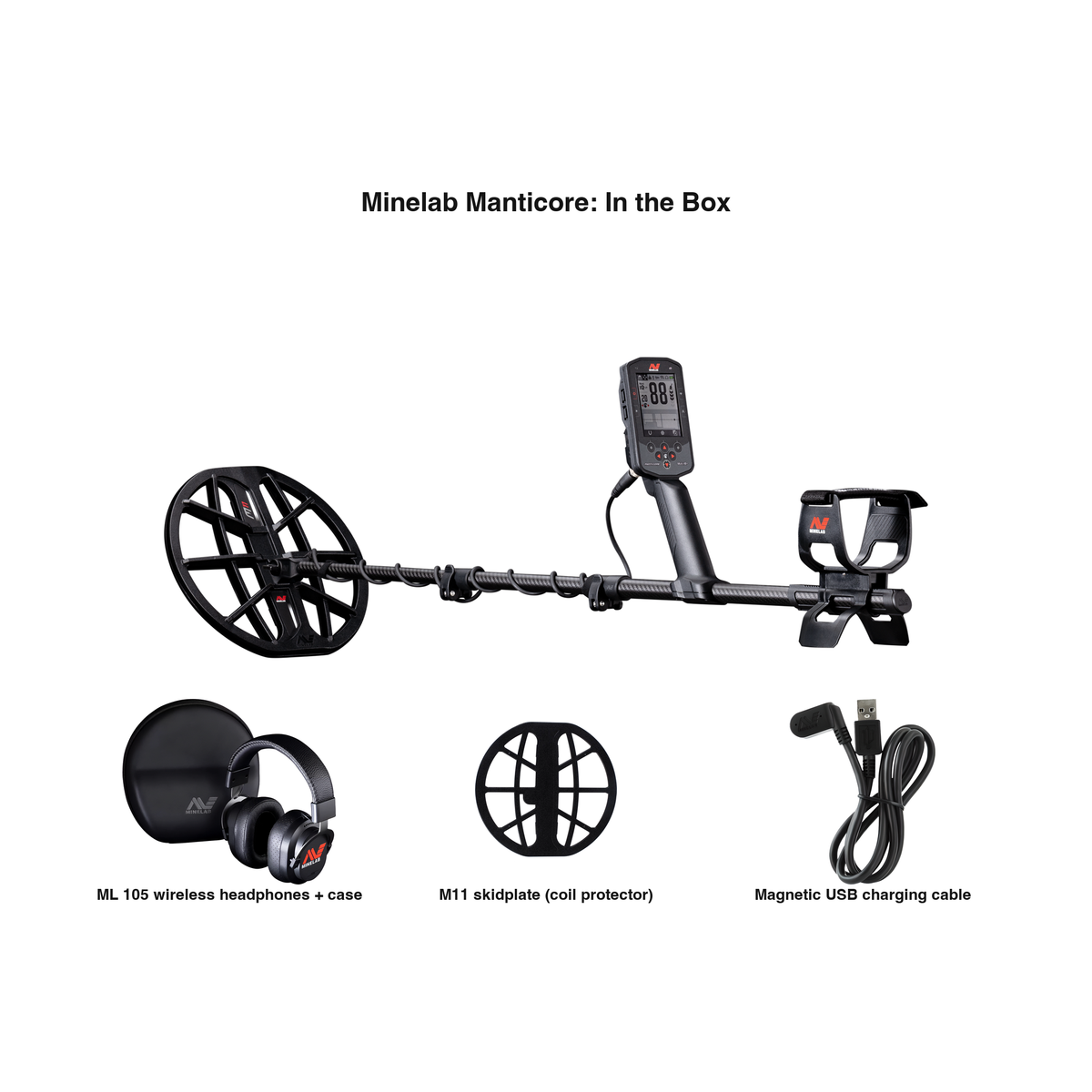

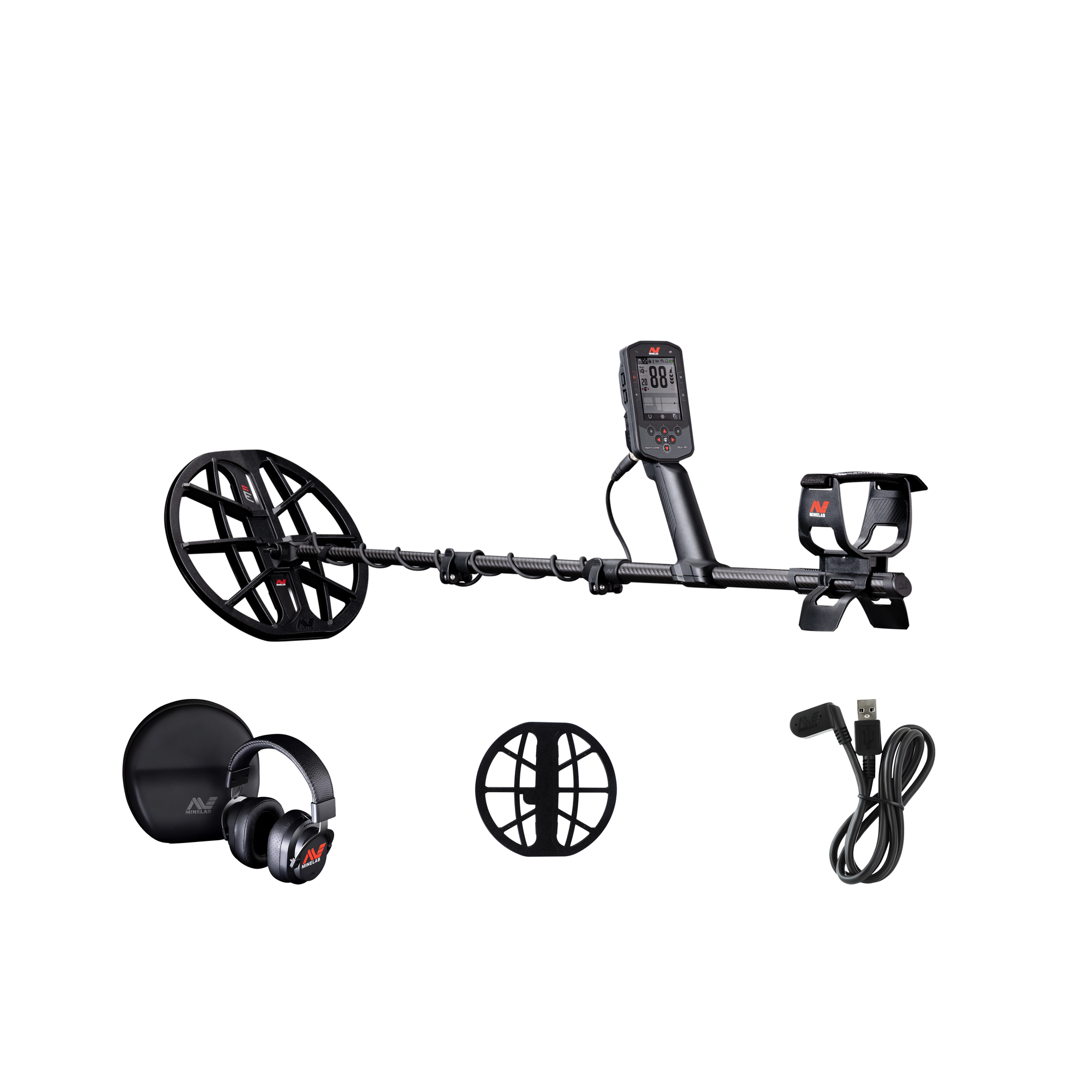

What Comes Standard in the Factory Box
This is the complete, official standard factory Minelab base kit, exactly as it ships from the manufacturer:
- M11 11-inch (28 cm) Double-D Smart Coil: The high-performance, waterproof all-rounder search coil designed for land, beach, or surf hunting.
- ML105 Low-Latency Wireless Headphones: Purpose-built wireless audio for the Manticore platform, delivering crisp, lag-free signal responses.
- Magnetic Charging & Data Cable: Low-profile connection for fast charging of the internal battery and direct firmware updates.
- 3.5 mm (1/8 inch) Wired Headphone Audio Cable: Provides an optional direct wired audio connection when needed.
- 5-Pack of Clear LCD Screen Protectors: Form-fitting protection to keep the full-color display clean in the field.
- 3-Year Manufacturer Factory Warranty: Complete warranty coverage protecting both the control box and the smart search coil.
Minelab Manticore vs Equinox 900: Which Minelab Should You Buy?
The most common decision our customers face is not between brands. It is between Minelab's flagship and Minelab's best-value multi-frequency machine. Both run simultaneous multi-frequency, both are IP68 waterproof to 16 ft (5 m), and both are backed by the same 3 year warranty. The difference is what each machine is built to maximize: the Manticore maximizes raw transmit power and visual target unmasking, while the Equinox 900 maximizes out-of-the-box versatility with two search coils in the factory kit.
| Technical Spec | Minelab Manticore | Minelab Equinox 900 |
|---|---|---|
| Core Engine Technology | Multi-IQ+ simultaneous multi-frequency with up to 50% more transmit power | Multi-IQ simultaneous multi-frequency |
| Target ID Display | Two-Dimensional Target ID Map (100 conductive, 50 ferrous segments) with live Target Trace | Linear 119-segment Target ID number line |
| Search Coils Included | M11 11 in (28 cm) Double-D | EQX11 11 in (28 cm) + EQX06 6 in (15 cm) Double-D: two coils in the box |
| Wireless Headphones Included | ML105 low-latency wireless | ML85 low-latency wireless |
| Selectable Single Frequencies | 5, 10, 15, 20, 40 kHz plus Multi-IQ+ | 4, 5, 10, 15, 20, 40 kHz plus Multi-IQ |
| Weight | 2.9 lb (1.3 kg) with M11 coil | 2.8 lb (1.27 kg) with EQX11 coil |
| Waterproof Rating | IP68, submersible to 16 ft (5 m) | IP68, submersible to 16 ft (5 m) |
| Best For | Maximum depth and visual unmasking of targets in dense iron and heavily hunted ground | Two-coil versatility from day one at a lower price point |
Bottom line: if your sites are iron-choked homesites, pounded parks, or deep relic ground, the Manticore's 2D Target ID Map and extra transmit power are the tools that separate the keeper from the trash. If you want the strongest all-around Minelab package for the money and value a small coil for tight trash out of the box, the Equinox 900 is the smarter buy. Either way you stay inside the same warranty, coil ecosystem philosophy, and update-supported platform family.
Compatible Coils & Accessories
The Manticore runs Minelab's waterproof M-series Double-D smart coils, and every one of them is available here as a genuine Minelab accessory:
- M8 8 x 5.5 in (20 x 14 cm) elliptical: the sniper coil for iron-saturated sites and tight trash.
- M9 9 in (23 cm) round: the middle-ground coil balancing separation and coverage.
- M11 11 in (28 cm) round: the all-rounder, included in this factory kit.
- M15 15 x 12 in (38 x 30 cm) elliptical: the deep-seeking coil for open ground and dry beach coverage.
See it in the field
This detector appears in History Seekers hunts on YouTube and Facebook, where over 1.1 million followers watch us dig relics, coins, and gold across the Southeast and beyond. We rotate machines depending on the site and the ground conditions, so it shows up across many hunts rather than one dedicated video. Every find you see was made with gear we sell and use ourselves.
One more thing worth knowing about who you are buying from. History Seekers is a small American business, not a big box retailer where nobody on staff has ever swung a detector, and not a warehouse that just moves boxes. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. Years of field experience before hire is not a coincidence, it is a requirement. The person who answers your questions may be the same one who packs your order and drives it to the UPS drop-off, and every purchase keeps everyday Americans working.
The story is more important than the artifact.
Technical Specifications
- Detection Engine: Multi-IQ+ high-power simultaneous multi-frequency (5, 10, 15, 20, 40 kHz plus Multi-IQ+)
- Target ID Mapping: Two-Dimensional Target ID Map with 100 conductive segments, 50 ferrous segments, and real-time Target Trace
- Search Modes: 10 customizable search modes: 5 All-Terrain (General, Fast, Low Conductors, High Conductors, Trash Reject), 4 Beach (General, Low Conductors, Deep, Surf & Seawater), and 1 Goldfield
- Iron Control: Advanced iron bias featuring fully adjustable ferrous rejection limits

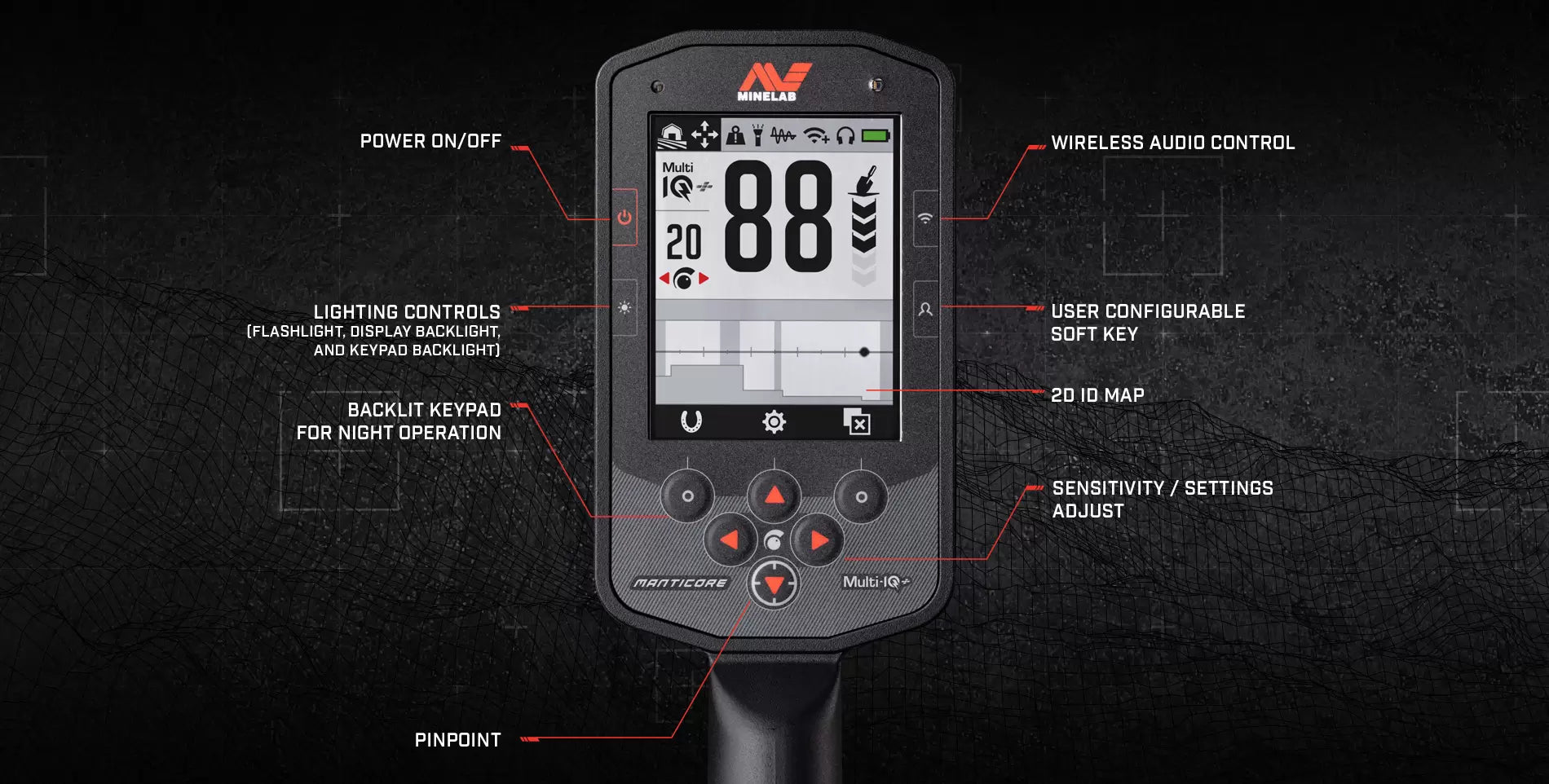

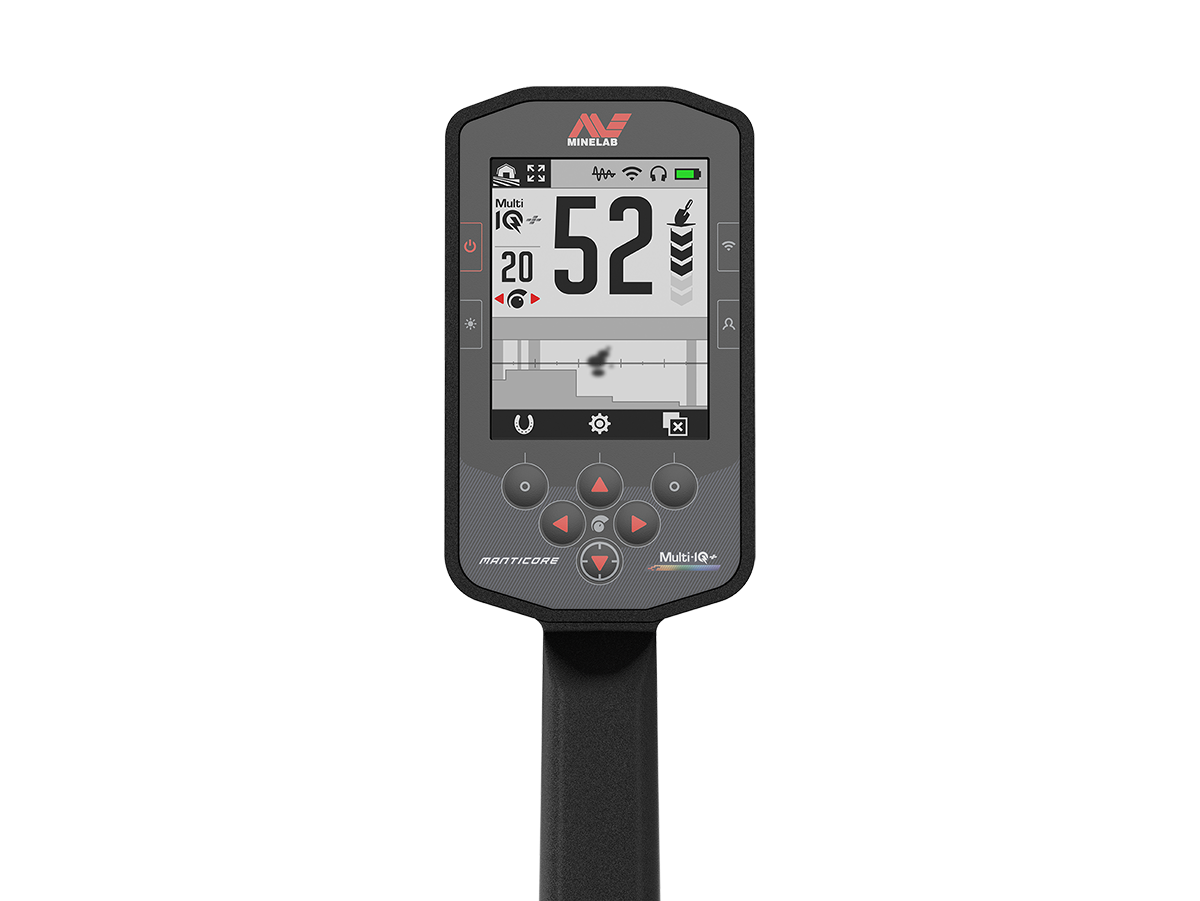

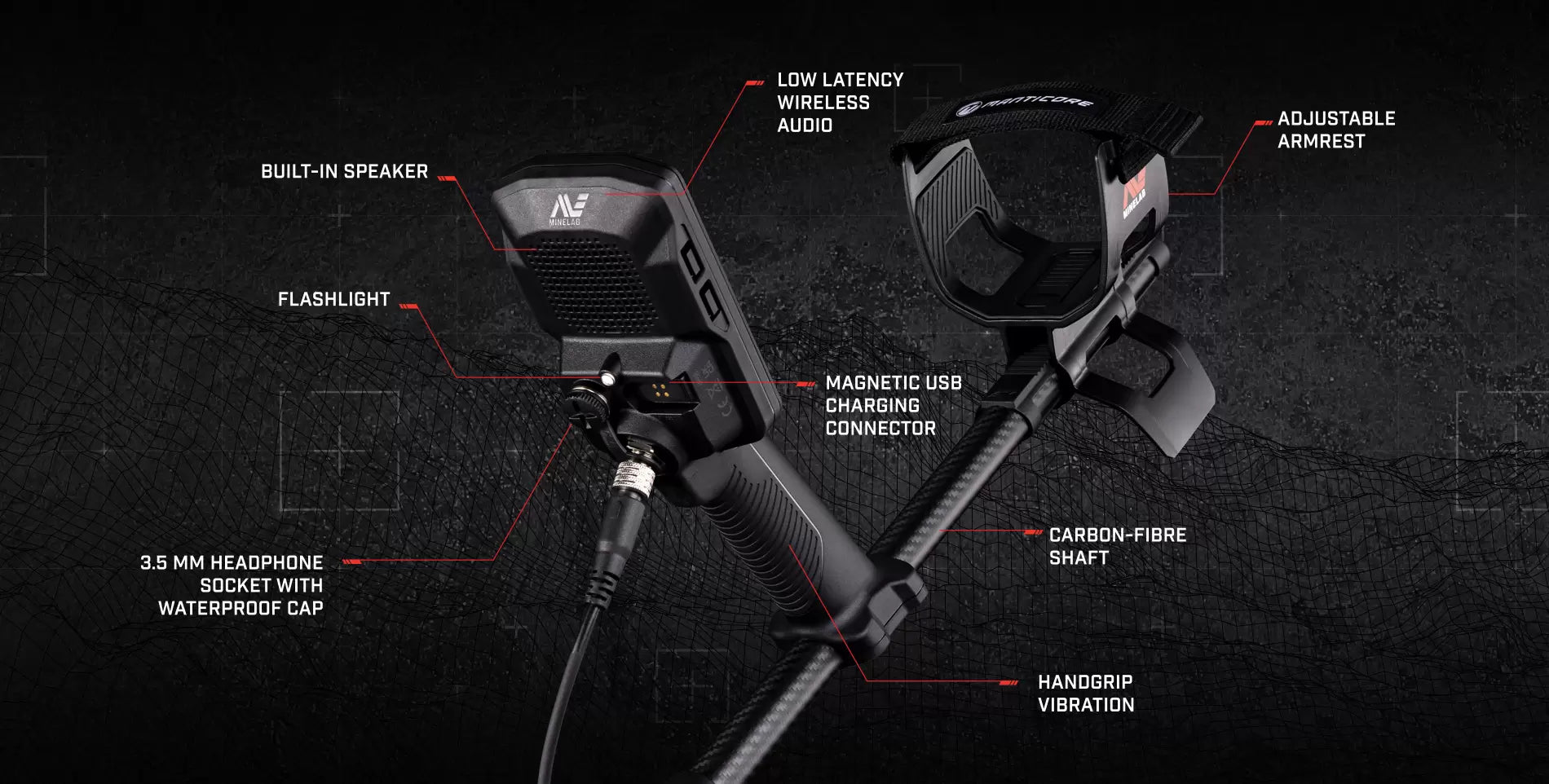

- Display Interface: Full-color LCD with adjustable backlight, backlit keypad, and integrated target flashlight
- Weight Profile: 2.9 lbs (1.3 kg), balanced across a carbon fiber collapsible shaft system

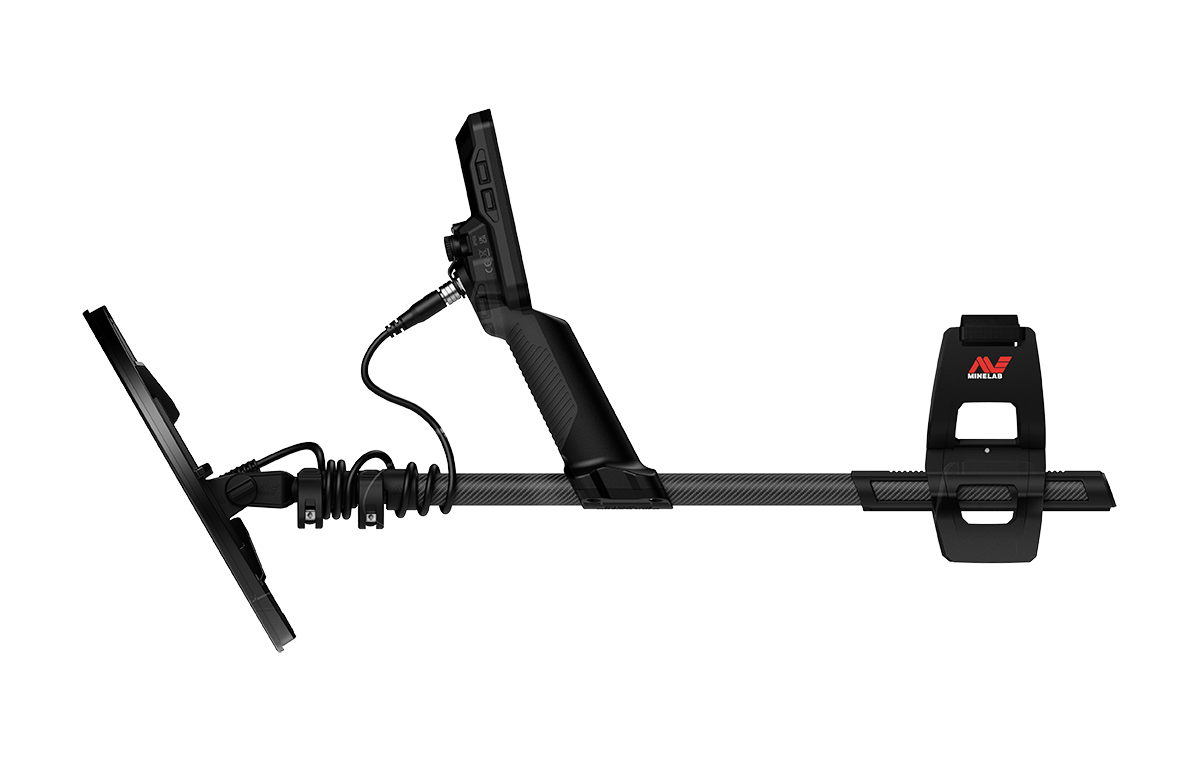

- Physical Length: Fully extended length of 56.7 inches (144 cm) / Collapsed transport length of 24.8 inches (63 cm)
- Waterproof Rating: Industrial IP68 rated, fully submersible and waterproof to 16 feet (5 meters)
- Audio Outputs: Built-in loudspeaker, low-latency wireless (ML105), and a wired 3.5 mm (1/8 inch) output port
- Target Feedback: Proportional handle vibration mode for low-visibility and underwater operation
- Battery Specifications: Internal rechargeable lithium-ion (3.7 V / 6800 mAh), providing up to 9 to 10 hours of continuous field use
- Charge Duration: Approximately 7 hours via a low-profile magnetic USB connectivity cable
- Warranty Protection: 3-year manufacturer factory warranty covering the control box and the search coil
Primary Field Applications
The Minelab Manticore excels in highly challenging environments. On mineralized, iron-laden relic permissions, the combination of high Multi-IQ+ power, adjustable iron bias, and fast processing pulls deep targets out from under dense iron canopies. In heavily searched public parks, the Two-Dimensional Target ID Map and Target Trace reveal masked coins that have been bypassed by single-number systems. In mineralized saltwater surf lines, the dedicated Beach modes and IP68 waterproof rating to 16 feet (5 meters) maintain total stability against ground feedback.
Manticore 2.0: The Free Update That Made a Flagship Better
Minelab ships major feature updates for the Manticore at no charge over a standard USB connection. The 2.0 software added the Stabiliser setting (0 to 12), which steadies audio and Target IDs on iron-infested sites where falsing used to cost real targets, an Enhanced Goldfield mode with greater sensitivity to small gold, soft-key shortcuts, and red ferrous Target ID highlighting. Even the included ML 105 headphones take their own updates. You buy the machine once and it keeps improving.
Two honest mode notes straight from Minelab's manual, worth knowing before you hunt: the High Conductors mode is deliberately high-powered and trims battery runtime by about one hour, and the All-Terrain Fast and Low Conductors modes carry built-in coke rejection, which is why they excel on sites of ancient habitation.
Frequently Asked Questions
Is the Minelab Manticore worth the upgrade from an Equinox 800 or 900?
Yes. For serious operators, the Manticore offers significant engineering advantages. Beyond the 50% power increase driven to the search coil, it transitions from a traditional linear target number line to a full Two-Dimensional Target ID Map with Target Trace visualization. This provides a major advancement in how you identify masked and deep targets. The upgraded processor provides faster recovery speed and more precise iron bias control, while the physical ergonomics, full-color interface, and low-latency audio represent a clear generational step forward.
Which search coils fit the Minelab Manticore?
Four genuine Minelab M-series coils fit the Manticore: the M8 8 x 5.5 in (20 x 14 cm) elliptical, the M9 9 in (23 cm) round, the included M11 11 in (28 cm) round, and the M15 15 x 12 in (38 x 30 cm) elliptical. All four are fully waterproof Double-D smart coils, and all are linked in the Compatible Coils section above.
Can the wireless headphones included with the Manticore be used underwater?
No. The included ML105 wireless headphones are weather-resistant and built to handle rain, splashes, and surf spray during land or shallow wading, but they are not submersible. Because digital wireless radio signals cannot transmit through water, true underwater hunting requires optional wired waterproof headphones plugged directly into the Manticore's waterproof audio port, ensuring clear target feedback while the control box is submerged up to 16 feet (5 meters).
Looking for a different official Minelab configuration? Explore the factory-approved 2026 value bundles:
• Manticore Value Bundle + Backpack ($49 savings)
• Manticore Value Bundle + Backpack & M9 Search Coil ($149 savings)
• Manticore Pro Pack + Backpack & Pro-Find 40 ($98 savings)
• Manticore Ultimate Field Bundle + Backpack, Pro-Find 40 & M9 Search Coil ($198 savings)
History Seekers Metal Detectors is an Authorized Minelab Dealer.
