Description

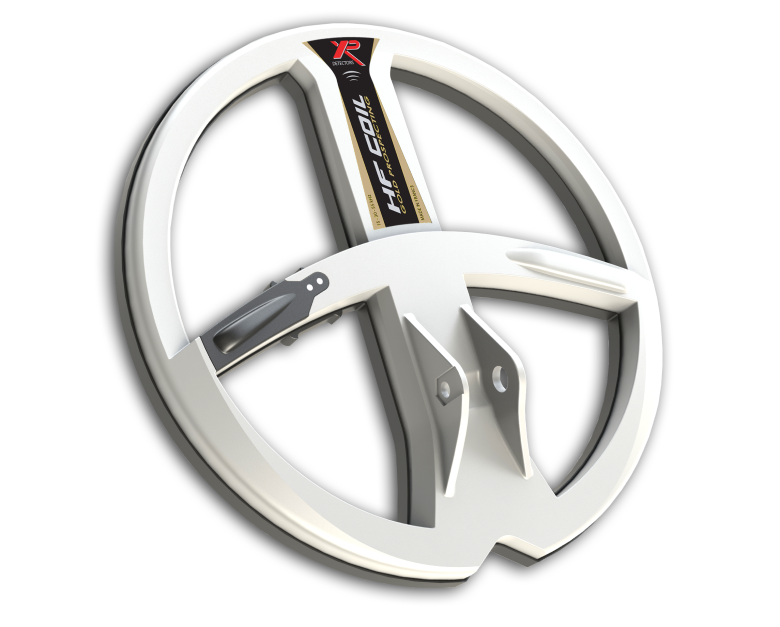

The targets everyone else walks over are usually just too small, not too deep. The XP HF coil in 22.5 cm (9 in) round is the high frequency coil that tunes the original Deus and the ORX for exactly those finds: cut quarters, thin hammered silver, small brass, and the fine gold a mid-frequency coil never even whispers on.
At a glance: The XP HF 22.5 cm (9 in) round coil, reference D01HF, fits the original XP Deus and the XP ORX. Three main frequencies at 14, 28 and 54 kHz with 7 offsets each give 21 frequencies from 13 to 59 kHz. Weighs 350 g (12.3 oz), waterproof to 6 m (20 ft); includes coil cover, fixing kit and lower stem.
Why high frequency, and why the round one
Where the XP X35 coil family spans 35 frequencies from 3.7 to 27.7 kHz for general hunting, this coil starts at 14 kHz and climbs to 54 kHz (59 kHz with offsets). Higher frequency means stronger response from small, low-conductivity targets: fine gold, small hammered coins, thin jewelry chains, tiny colonial brass. The 9 in round footprint keeps useful ground coverage and stable pinpointing, which makes it the better HF choice for general small-target hunting and relic sites with moderate iron. When the iron gets dense or the ground gets hot and mineralized, its sibling, the HF Elliptical, trades footprint for a 74 kHz top band and a blade-shaped sweep. One naming trap worth a sentence: XP's HF2 coil is a different product for the Deus II, so if you run a Deus II you want the HF2 Elliptical, not this coil.
Specifications and what they mean in the field
| Spec | Figure (XP-published) | What it does for you |
|---|---|---|
| Size | 22.5 cm (9 in) round DD | Coverage plus control; the versatile HF footprint |
| Frequencies | 21 frequencies: mains 14, 28, 54 kHz; ranges 13 to 15.7, 26 to 31, 50 to 59 kHz | Small-target and fine-gold sensitivity a mid-frequency coil cannot match |
| Weight | 350 g (12.3 oz) | Lighter than every X35 round; effortless all-day swing |
| Waterproof | Fully waterproof to 6 m (20 ft) | Creek gravel and wet sand hunting without worry |
| Battery | Lithium battery fitted inside the included lower stem, about 20 hours per charge | Longer runtime than the X35 coils; replacement battery available (XP part D088HF) |
| Build | LONGTIME certified, made in France | Designed to last; 5 year XP warranty (battery 2 years) |
Compatibility, stated plainly

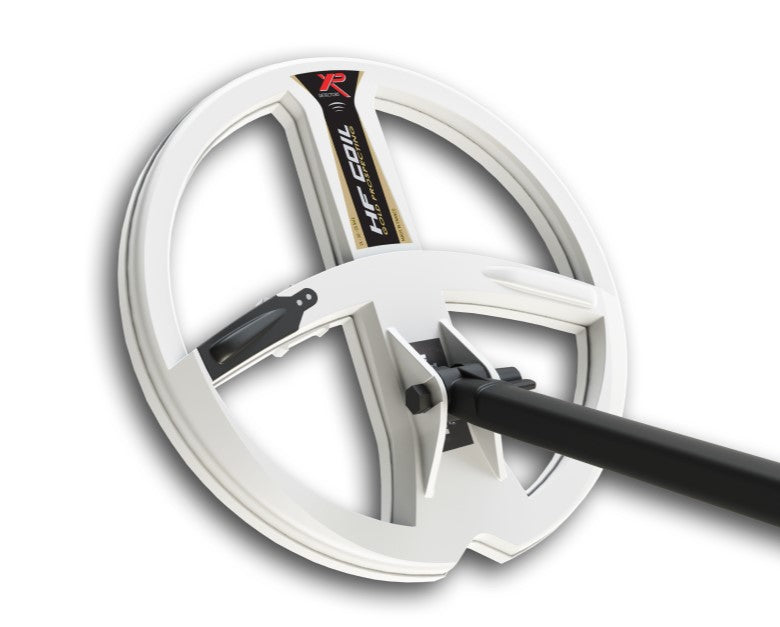

This coil fits the original XP Deus and the XP ORX. It is also a factory XP ORX coil: XP ships an ORX gold pack built around this exact 9 in HF. It is not compatible with the XP Deus II or Icon, which use FMF coils only. Like every original XP Deus coil it pairs wirelessly, but note the battery lives in the lower stem, which is why a dedicated HF stem is included in the box; the X35 in-coil battery kit does not fit the HF pair.
Who it is for
Prospectors working fine gold in creeks and dry washes, relic hunters chasing small brass and buttons, and Deus or ORX owners who keep finding the easy targets gone and want the frequencies that reach what is left. It can find gold jewelry anywhere; for small natural gold, this and its elliptical sibling are the XP Deus family's dedicated tools.
What is included
HF 22.5 cm (9 in) coil, coil cover, fixing kit and lower stem with the battery inside.
