Description
PRE-ORDER: Estimated shipping early 2027. This is an estimated time frame provided by Minelab and is subject to change. Call 256-284-2247 for the latest update, and ask about military discounts before you order.
At a glance

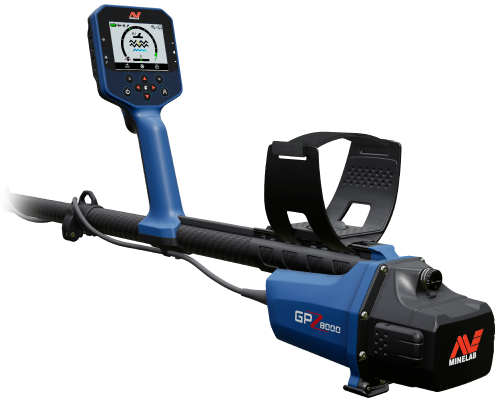

The Minelab GPZ 8000 3 Coil Pack is the complete flagship gold setup: the GeoZVT detector, 2.78 kg (6.1 lb) with the Z18 coil, plus all three Z-Set concentric toroidal search coils, the Z13 13 in (33 cm), Z17 17 in (43 cm), and Z18 18 in (46 cm), two Li-ion batteries, Pro-Swing 125 harness, WM 14 wireless audio, and Sennheiser HD 505 headphones. 3 year warranty.
One machine, every ground condition, no compromises
Gold country never gives you the same ground twice. Deep open flats one week, EMI-soaked conductive soil the next, then a brush-choked gully where a big search coil cannot swing. The GPZ 8000 3 Coil Pack is Minelab's answer to all of it in a single box: the flagship GeoZVT detector with the complete Z-Set concentric toroidal coil range, so the machine adapts to the ground instead of you walking away from it. GeoZVT spans 2 to 50 kHz and Minelab calls the GPZ 8000 their most advanced gold detector; this pack is its most complete configuration.
We were at the US launch in Mariposa, and we swung it on a real claim
History Seekers was fortunate enough to be invited to the GPZ 8000 US launch event in Mariposa, California, where we ran this detector on an actual working gold claim and in the test garden Minelab set up for the event. Two things stuck with us. First, the audio: the clarity through the Sennheiser HD 505 headphones is obvious the moment you put them on, and anyone who knows headphones will recognize that brand as top tier. Fitting that they partnered with Minelab on this detector. Second, the small gold: we were shocked at the clarity and depth it reached on even small pieces, most especially a 1 gram piece of gold at 8 in (20 cm) in mineralized soil. That is the target class that separates real gold machines from spec sheets, and we heard it plainly.

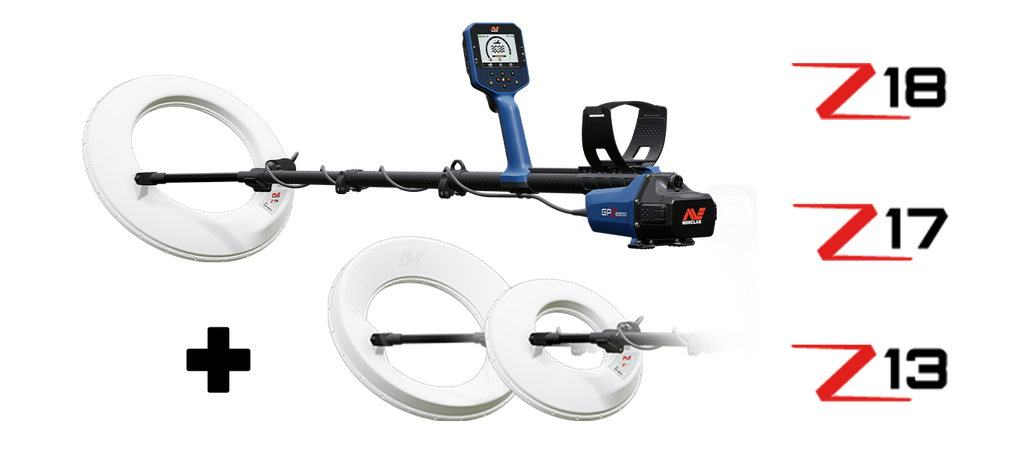

Why the 3 Coil Pack
The coils are not interchangeable accessories, they are three different tools, and Minelab's own manual maps when each one wins. The Z18 18 in (46 cm) is the depth coil: the best depth of the three, for large deep gold and maximum coverage in open country, and the coil the manual says to start with. The Z13 13 in (33 cm) is the precision coil: the most maneuverable, best in vegetation and tight spaces, with better interference handling than the Z18 for small to medium gold in shallower soils. The Z17 17 in (43 cm) is the escalation coil: built for high EMI and highly conductive soils, it makes ground detectable that defeats the other two. And here is the part we did not expect: at the Mariposa launch we ran the Z13 ourselves, and the sensitivity we observed makes it a genuine competitor even on small gold. From a detector designed to sniff out the large nuggets at depth, that kind of small-gold performance from the 13 in (33 cm) coil is the quiet surprise of this pack, and only the 3 Coil Pack puts it in the box. We did not get as much time on the Z17 as the other two, but the prospectors we talked with at the event felt it did better dealing with hot rocks, which fits exactly the job Minelab built it for. Buy the Single Coil Pack and you own the first chapter; buy the 3 Coil Pack and you own the whole playbook from day one. Minelab's manual says it plainly: with the right coil and Ground Type combination, all ground conditions can be managed. Three coils in the case means there is no goldfield you have to walk away from. One precision note, because at least one dealer gets it wrong: these are not Super D coils, and GPZ 7000 coils are not compatible with the GPZ 8000.
Who the 3 Coil Pack Is For
Best for: the prospector whose ground changes: deep open flats, conductive or interference-heavy patches, and brush-choked gullies on the same claim. Experience level: advanced. The GPZ 8000 has no discrimination and no target ID; you dig every signal, and the three coils let you keep hunting when the Z18 alone would send you home.
If your patches are open country and depth is the only question, the GPZ 8000 Single Coil Pack is the same machine with the Z18 only, and the Z13 and Z17 can be bought separately later. If you are new to natural gold, the Gold Monster 2000 is the lighter, simpler start, and the GPX 6000 is the faster all-day pulse induction machine. The previous ZVT flagship, the GPZ 7000, keeps its own coil family; nothing carries over between the two.
Single Coil Pack or 3 Coil Pack?
| Pack | Minelab part | Coils | Everything else |
|---|---|---|---|
| Single Coil Pack | 3301-0101 | Z18 18 in (46 cm) | Identical: detector, two batteries, chargers, HD 505 headphones, WM 14, PRO-SWING 125 harness, GA 10 guide arm |
| 3 Coil Pack | 3301-0102 | Z18 18 in (46 cm), Z17 17 in (43 cm), Z13 13 in (33 cm) | Identical |
Choose the 3 Coil Pack when your ground is varied or you already know interference and brush are part of your season; choose the Single Coil Pack when open-country depth is the job and you would rather add a coil later.
Exclusive History Seekers bonus: free with every Minelab GPZ 8000 3-coil pack
Buy your Minelab GPZ 8000 3-coil pack from History Seekers and receive a free 1-year subscription to American Digger Magazine, the definitive print resource for relic hunters, coin shooters, and serious diggers. Real finds, real research, and real history delivered directly to your door. This bonus is available exclusively through HistorySeekers.net.
Notice: the free subscription offer applies strictly to listed prices. It cannot be combined with other discount codes or promotions. If a coupon or promotional discount is used at checkout, the free magazine subscription is excluded.
Hear the ground, not just the target
Echo Sonic Pro audio sends different ground and target information to each ear, which is why Minelab ships genuine Sennheiser HD 505 audiophile headphones in the box instead of the usual throwaway set. Four named Ground Types (Difficult Deep, Difficult High Yield, Normal Deep, Normal Extra Deep) tune the machine to your soil, automatic noise cancel sweeps 4096 channels, and sensitivity runs 1 to 10 manual plus Auto and Auto+ levels that let the detector manage itself while you concentrate on swinging. A live Mineralization Level readout helps you map the soil boundaries where gold likes to hide, and the coil-plus-Ground-Type combinations in the manual turn this pack into a system: optimize for depth, for small gold in shallow soil, or for ground nobody else can even run a detector on. Setup is three steps: charge, hold Quick-Trak for ten seconds, detect.
Ground Types and the Settings That Matter
The GPZ 8000 has no discrimination to tune; what you tune is how it hears the ground. The four Ground Types are the big lever, and the manual says which ground each one is for:
- Difficult Deep (the default): the stable all-round choice for mixed ground where mineralization and conductivity occur together and vary across the patch. If you are not sure which Ground Type to pick, the manual says to start here.
- Difficult High Yield: iron-rich, highly mineralized soil with low conductivity; stable, with good depth on small to medium gold. It handles conductivity poorly, so the manual reserves it for quiet conditions, shallow soil, or ground known to hold only small gold, paired with the Z13 or Z17.
- Normal Deep: quiet, consistent ground where conductivity is present but mineralization is low; very good depth on medium to larger gold.
- Normal Extra Deep: maximum depth on medium to large gold in benign, homogeneous, low-conductivity ground. The trade for that depth is poor handling of heavy mineralization and conductivity, so it belongs on quiet ground only, not everywhere.
Around the Ground Type: Sensitivity runs manual 1 to 10 plus Auto and Auto+, which let the detector set itself while you learn the audio; Noise Cancel sweeps 4096 channels automatically (128 channels when set by hand) and is the first thing to run near power lines or another detector; Quick-Trak ground balances in ten seconds; and the Mineralization Level readout is a prospecting tool in its own right, because the manual teaches reading its jumps as soil boundaries and building a map of where gold is likely to sit. Echo Sonic Pro sends different ground information to each ear, and the manual uses which ear gets noisy to tell you whether conductivity or mineralization is the problem and which Ground Type to move to.

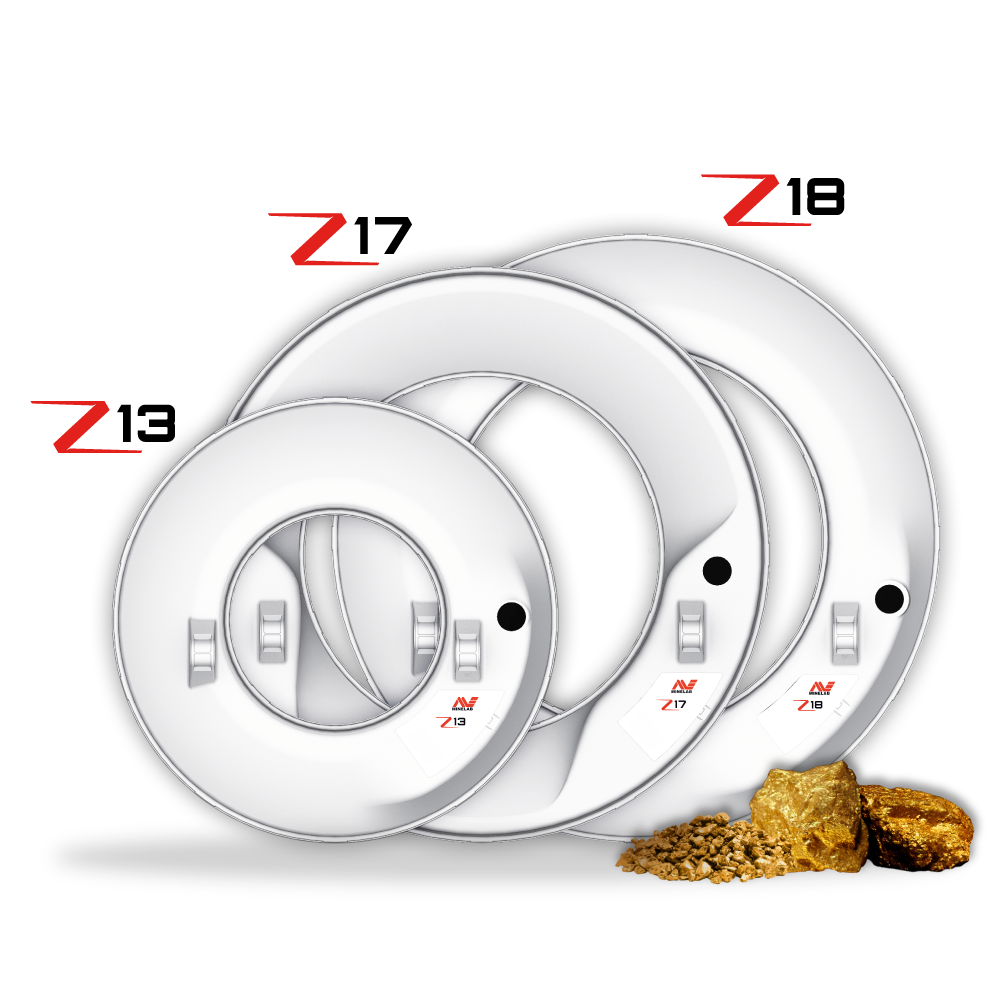

Which Coil When: Z18, Z13, Z17
Minelab's manual maps the three Z-Set coils to conditions and gives an order to try them:
- Z18 18 in (46 cm): start here, every time you begin somewhere new or in deep soil. The best depth of the three and maximum coverage for large, deep gold in open country; the trade is that it is the most affected by EMI and the least suited to dense vegetation.
- Z13 13 in (33 cm): in shallow soil, or when conditions get too challenging for the Z18, change to the Z13. The most maneuverable coil, best among vegetation, obstacles and tight spaces, for small to medium gold, with better EMI handling than the Z18 and the least fatigue.

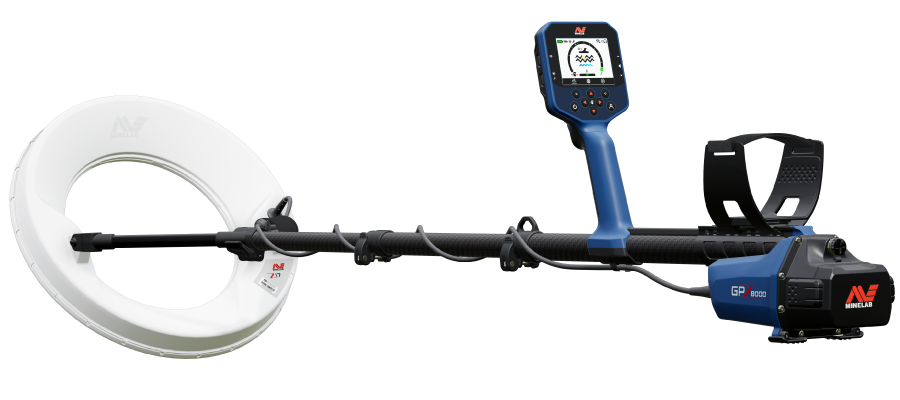

- Z17 17 in (43 cm): the all-rounder for high EMI and highly conductive ground. If conditions and interference are too severe for the Z18 and Z13, change to the Z17; it gives the best stability in EMI-heavy ground and good depth on small and medium gold.
All three are in this box, which is the point of the pack: the manual's own escalation, Z18 to Z13 to Z17, never means a second purchase.
Built for all-day remote-country hunts
Two 5833 mAh Li-ion batteries ship standard at roughly 10 hours each, and the box includes a universal AC charger, a USB-C car charger, and a crocodile-clip adapter that charges straight off a 12 V vehicle battery, a detail that matters when the nearest outlet is a long drive from your patch. The Pro-Swing 125 harness moves the weight to your hips, the GA 10 guide arm steadies the swing, and the hybrid carbon fiber and fiberglass shaft collapses to 40.2 in (102 cm) for transport. The WM 14 wireless audio module is in the box too, with Minelab's low-latency wireless link and a built-in speaker.
Specifications
| Feature | Minelab GPZ 8000 3 Coil Pack |
|---|---|
| Technology | GeoZVT with Echo Sonic Pro stereo audio |
| Operating frequency | 2 to 50 kHz |
| Search coils | Z18 18 in (46 cm), Z17 17 in (43 cm), Z13 13 in (33 cm) Z-Set concentric toroidal, all waterproof, all included |
| Ground Types | Difficult Deep (default), Difficult High Yield, Normal Deep, Normal Extra Deep |
| Sensitivity | Manual 1 to 10, Auto (11), Auto+ (12) |
| Noise cancel | Auto (4096 channels) or manual (128 channels) |
| Weight | 2.78 kg (6.1 lb) with the Z18 coil |

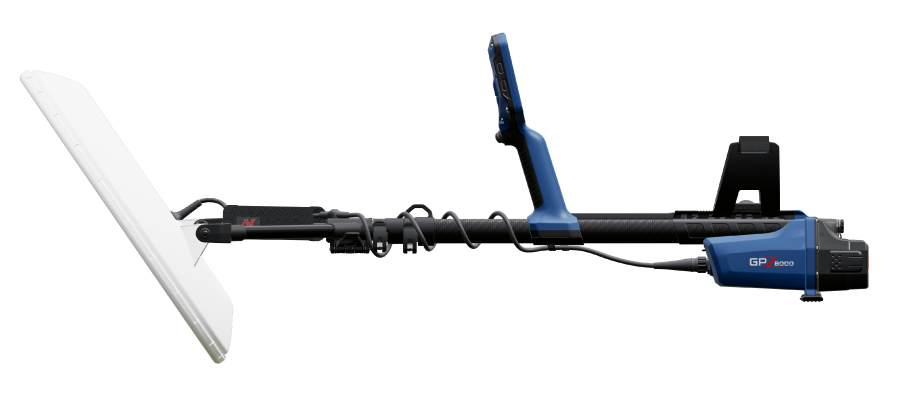

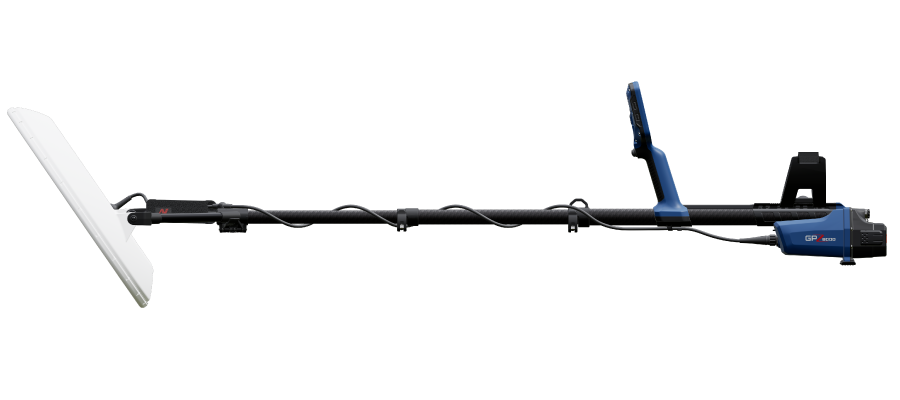

| Length | Extended 69.7 in (177 cm), collapsed 40.2 in (102 cm) |
| Display | 3.5 in (8.9 cm) color LCD with backlight and dual-LED flashlight |
| Waterproof | Detector and coils IP67, submersible to 3.3 ft (1 m) for up to 30 minutes |
| Batteries | Two Li-ion 5833 mAh included, approx. 10 hours each, approx. 4 hour charge |
| Audio | Sennheiser HD 505 wired headphones + WM 14 wireless audio module, both included |
| Warranty | 3 years |

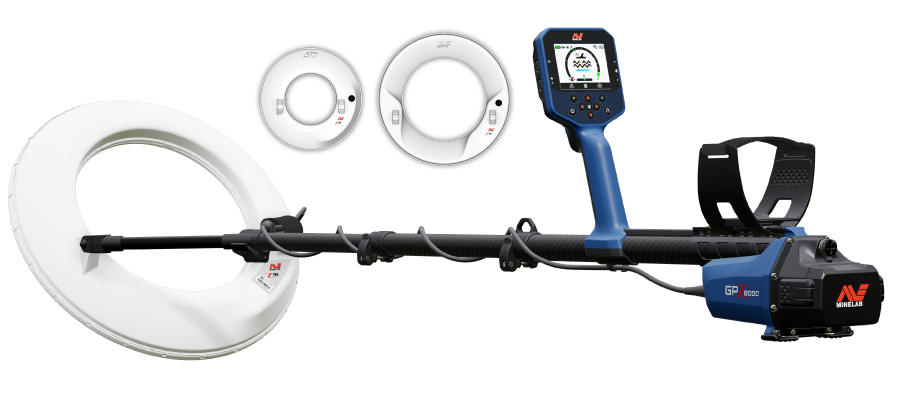

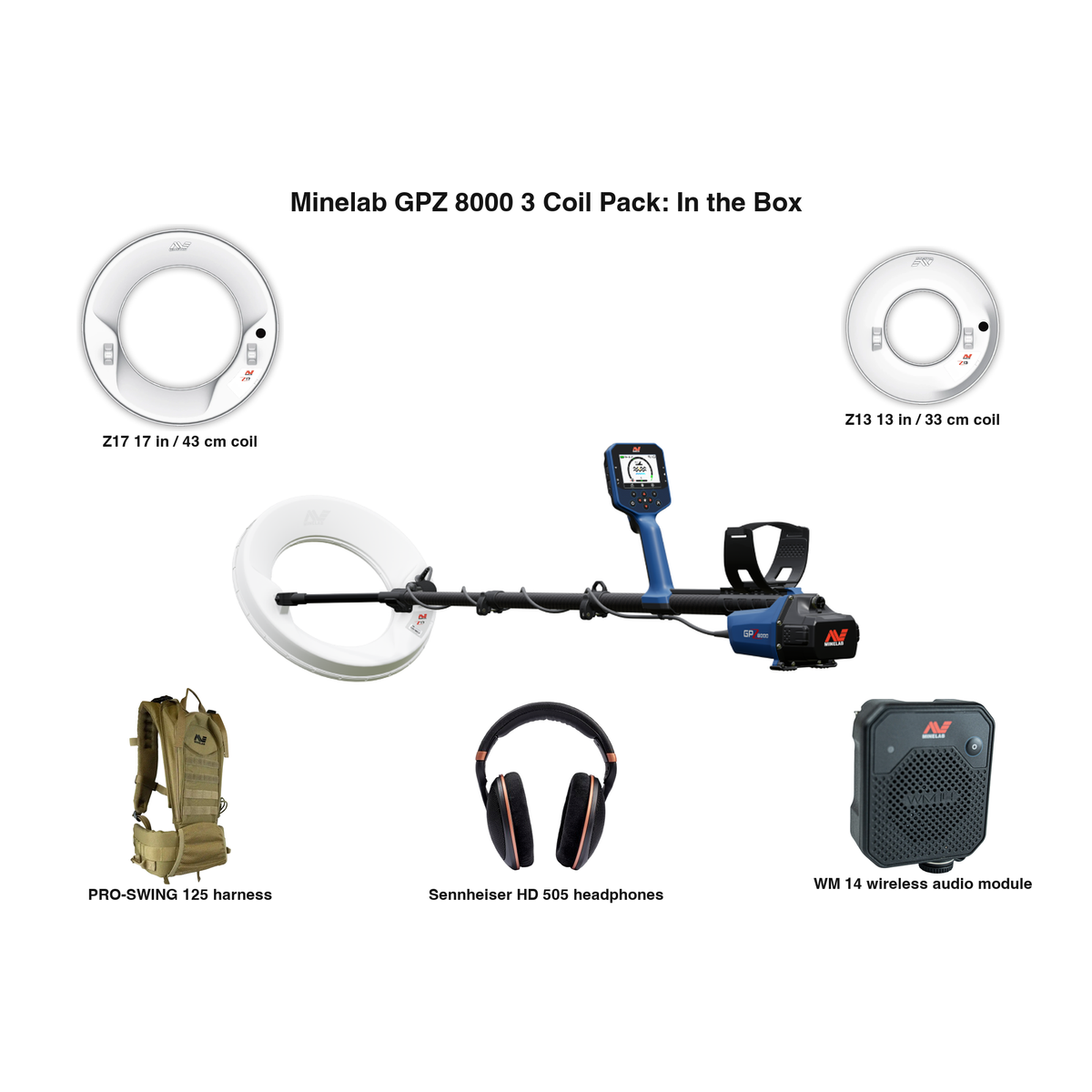

What is in the box
GPZ 8000 detector, Z18, Z17, and Z13 search coils with skid plate, second detector battery, universal AC charger, USB-C car charger, crocodile-clip 12 V adapter, two USB-C cables, Sennheiser HD 505 wired headphones with hard case, Minelab auxiliary curly cable (forms a waterproof seal at the headphone socket), standard auxiliary cable, WM 14 wireless audio module, 1/4 in (6.35 mm) headphone adapter, GA 10 guide arm, bungee loops, Pro-Swing 125 harness, screen protector kit, and a specimen container for the gold.
Where the GPZ 8000 Works Well, and Where It Does Not
Mineralized and conductive goldfields: the ground GeoZVT and the Ground Types were built for. The Difficult types take iron-rich soil, Normal Deep takes quiet conductive ground, and the Z17 coil takes the interference nobody else can run in.
Worked-out patches: deep, large gold that earlier machines left behind is the GPZ 8000's reason to exist; the Z18 with Normal Extra Deep on quiet ground reaches it.
Shallow water: IP67 to 3.3 ft (1 m) for 30 minutes lets you follow a gully into a creek. It is not a dive machine, and the HD 505 headphones are not waterproof; only the headphone socket is, with the supplied curly cable locked in.
Brush and tight gullies: the Z18 is the wrong coil there; the Z13 is the one to fit. It is in this box.
Where it is the wrong buy: coins, relics and parks (there is no discrimination), a first gold detector for most people, and any job that needs a target ID.
Know before you buy
The GPZ 8000 is a pure prospecting machine: there is no discrimination and no target ID, so plan on digging your signals. IP67 means creek crossings and rain, not diving, and the HD 505 headphones themselves are not waterproof. The detector battery requires a USB-C Power Delivery charger of at least 30 W (all included chargers qualify). Both the detector and the WM 14 are software-updatable over USB-C, so the machine grows with Minelab's firmware (no update has been published as of October 2026; the launch software is current). As a professional gold unit, this item is a final sale under our refund policy. Active and retired military: a 15% military discount exists on Minelab detectors. Call us at 256-284-2247 for details and to order with the discount; it cannot be combined with other promotions, including the free magazine subscription.
Frequently Asked Questions
What is the difference between the GPZ 8000 3 Coil Pack and the Single Coil Pack?
The detector and every accessory are identical. The Single Coil Pack (Minelab part 3301-0101) includes the Z18 18 in (46 cm) coil only; the 3 Coil Pack (3301-0102) adds the Z17 17 in (43 cm) coil for high-EMI and conductive ground and the Z13 13 in (33 cm) coil for small gold in shallow soil, vegetation and tight spaces.
Which coil should I start with?
The Z18. The manual says to start with it every time you begin somewhere new or in deep soil: it has the best depth of the three and the most coverage. Change to the Z13 in shallow soil, brush or tight spaces, or when the Z18 struggles; change to the Z17 only when interference and conductivity are too severe for both.
Does the GPZ 8000 have discrimination?
No. The GPZ 8000 has no discrimination and no target ID. It is a pure prospecting machine that reports every metal target through Echo Sonic Pro audio, so you dig your signals; Ground Type, sensitivity, noise cancel and the Mineralization Level readout are the controls you tune.
Are GPZ 7000 coils compatible with the GPZ 8000?
No. The GPZ 8000 accepts only the Z-Set concentric toroidal coils (Z18, Z17, Z13). The GPZ 7000's Super-D coils do not fit, and the GPZ 8000 is not a Super D machine.
Is the GPZ 8000 waterproof?
The detector, the coils and the WM 14 module are rated IP67: submersible to 3.3 ft (1 m) for up to 30 minutes, which covers creek crossings and rain, not diving. The Sennheiser HD 505 headphones are not waterproof; only the headphone socket is protected, and only when the supplied curly cable's overmold is locked in.
Can I buy the Z13 and Z17 separately later instead of the 3 Coil Pack?
Yes. Minelab sells the Z13 and Z17 as separate coils, so a Single Coil Pack can grow into the full range as your ground demands it. The 3 Coil Pack is Minelab's own factory part number (3301-0102) with all three coils in one box; call us and we will work out which route fits your patches.
How does the GPZ 8000 3 Coil Pack help you find gold across different ground?
The machine is Minelab's deepest-seeking gold platform, and the three coils let you match it to the ground instead of compromising: the Z18 pushes maximum depth on open patches, the Z13 picks small gold out of shallow, tight or brushy workings, and the Z17 keeps you detecting in interference and conductive soil that defeats the other two. One detector, three configurations, from sub-gram pieces to deep targets, without carrying a second machine.
Is the GPZ 8000 3 Coil Pack a final sale?
Yes. As a professional gold detector it is a final sale under the History Seekers refund policy, so call 256-284-2247 before you order if you have any doubt about which pack you need. The 3-year Minelab warranty covers the control box and the coils, with service through Minelab's authorized US service center.
Where can I buy the Minelab GPZ 8000 3 Coil Pack from an authorized dealer?
Here. History Seekers Metal Detectors is an authorized Minelab dealer; every GPZ 8000 we sell is new, ships from Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. We price match a competitor's current listing for a new unit after verification, and Minelab's military discount program applies to the GPZ 8000; contact us directly to order under it (not combinable with other promotions).
Who you are buying from
History Seekers Metal Detectors is an authorized Minelab dealer; every GPZ 8000 we sell is new, ships from Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. We hunt with the gear we sell, and the person who answers your call has real dirt time. Every purchase keeps everyday Americans working.
