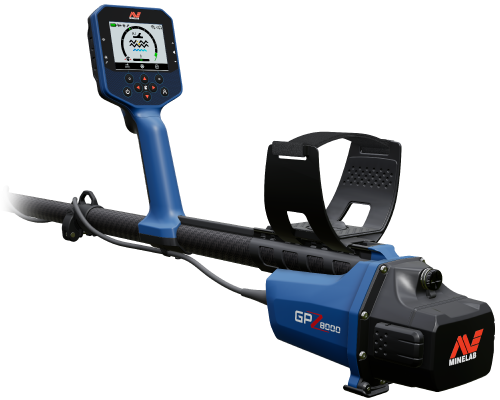

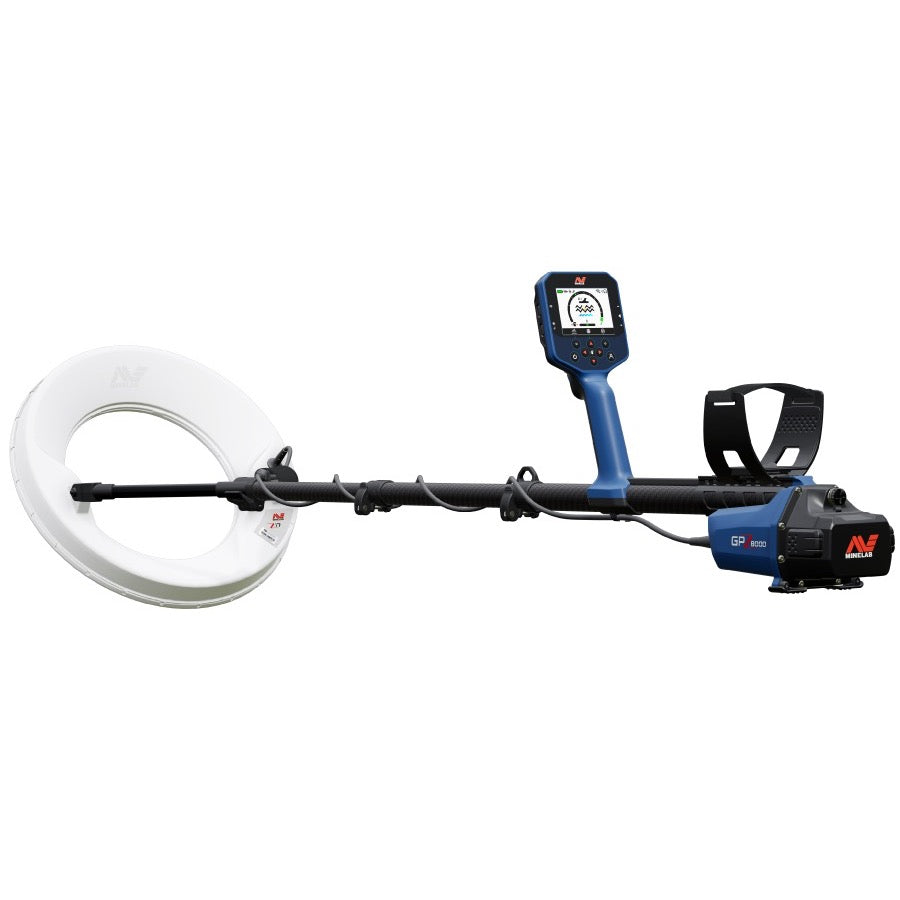

Minelab GPZ 8000 Single Coil Pack

At a glance

The Minelab GPZ 8000 Single Coil Pack is the flagship GeoZVT gold detector with the Z18 18 in (46 cm) concentric toroidal search coil for maximum depth. 2.78 kg (6.1 lb) with the Z18 coil, 2 to 50 kHz operation, IP67 waterproof to 3.3 ft (1 m), two Li-ion batteries, Pro-Swing 125 harness, WM 14 wireless audio, and Sennheiser HD 505 headphones included. 3 year warranty.

The gold that is left is the gold nobody else can hear

Every serious prospector knows the problem: the easy gold came out of the ground decades ago. What remains sits deeper, in worse ground, in patches everyone calls worked out. The Minelab GPZ 8000 exists for exactly that gold. GeoZVT, the next generation of Minelab's ZVT technology, spans 2 to 50 kHz and pairs with the all-new Z-Set concentric toroidal coil design to reach deeper in mineralized ground while avoiding the soil saturation that limits traditional coils. Minelab calls it their most advanced gold detector, and we have swung it ourselves.

We were at the US launch in Mariposa, and we swung it on a real claim

History Seekers was fortunate enough to be invited to the GPZ 8000 US launch event in Mariposa, California, where we ran this detector on an actual working gold claim and in the test garden Minelab set up for the event. Two things stuck with us. First, the audio: the clarity through the Sennheiser HD 505 headphones is obvious the moment you put them on, and anyone who knows headphones will recognize that brand as top tier. Fitting that they partnered with Minelab on this detector. Second, the small gold: we were shocked at the clarity and depth it reached on even small pieces, most especially a 1 gram piece of gold at 8 in (20 cm) in mineralized soil. That is the target class that separates real gold machines from spec sheets, and we heard it plainly.

Why the Single Coil Pack

The Z18 18 in (46 cm) search coil in this pack is the depth coil of the Z-Set range, and it is the coil Minelab's own manual tells you to start with: maximum depth on medium to deep gold and the widest ground coverage of the three coils. If your ground is open country and your target is deep nuggets, this pack is the straight line to it. The Z13 and Z17 coils can be added later as your ground demands, or step up to the GPZ 8000 3 Coil Pack and own the complete range from day one. One important precision note, because at least one dealer gets it wrong: the GPZ 8000 does not use Super D coils. The Z-Set concentric toroidal system is new for this machine, and GPZ 7000 coils are not compatible.

Who the GPZ 8000 Is For, and Who Should Buy the GPX 6000 or Gold Monster 2000 Instead

Best for: deep nuggets in mineralized, conductive or interference-heavy ground, and worked patches where the shallow gold is gone. Experience level: advanced. It is a professional prospecting tool with no discrimination and no target ID: you dig every signal, and the reward is the deepest ZVT platform Minelab makes.

It is not a park or relic machine, and it is not the first gold detector for most people. The manual's Automatic Operation and the Auto and Auto+ sensitivity levels let a newer operator run the factory defaults safely, but a prospector starting out is better served by the Gold Monster 2000, lighter and simpler, and a prospector who wants all-day speed over maximum depth by the GPX 6000, 2.1 kg (4.6 lb) pulse induction with two coils in the US box. Buy the GPZ 8000 when your patches are deep, hot and hammered, and you intend to work them properly.

GPZ 8000 vs GPZ 7000 vs GPX 6000: which Minelab gold detector do you need?

Three Minelab machines share our gold wall, and they are not interchangeable. The Minelab GPZ 7000 is the previous ZVT flagship: still a deep-gold benchmark, but its GPZ 14 Super-D coil and the rest of the GPZ 7000 coil range do not fit the GPZ 8000, so nothing carries over except your experience. The Minelab GPX 6000 is the lighter choice at 2.1 kg (4.6 lb): a GeoSense-PI pulse induction machine with two coils in the US box, and the right call for a prospector who wants all-day speed over maximum depth. The GPZ 8000 is for the hunter whose ground has been pounded by both: GeoZVT depth, Z-Set coils that resist soil saturation, stereo audio that separates ground from target, and a harness-carried 2.78 kg (6.1 lb) with the Z18 coil fitted. If your target is the deepest gold left on a worked patch, this is the one; if you are new to pulse induction or ZVT, start with the GPX 6000.

Exclusive History Seekers bonus: free with every Minelab GPZ 8000

Buy your Minelab GPZ 8000 from History Seekers and receive a free 1-year subscription to American Digger Magazine, the definitive print resource for relic hunters, coin shooters, and serious diggers. Real finds, real research, and real history delivered directly to your door. This bonus is available exclusively through HistorySeekers.net.

Notice: the free subscription offer applies strictly to listed prices. It cannot be combined with other discount codes or promotions. If a coupon or promotional discount is used at checkout, the free magazine subscription is excluded.

Hear the ground, not just the target

Echo Sonic Pro audio is the feature you will not appreciate until the first session: the left and right sides of your headphones carry different ground and target information, which is why Minelab ships genuine Sennheiser HD 505 audiophile headphones in the box instead of the usual throwaway set. Four named Ground Types (Difficult Deep, Difficult High Yield, Normal Deep, Normal Extra Deep) tune the machine to your soil, automatic noise cancel sweeps 4096 channels, and sensitivity runs 1 to 10 manual plus Auto and Auto+ levels that let the detector manage itself while you concentrate on swinging. A live Mineralization Level readout even helps you map soil boundaries where gold likes to hide. Setup is three steps: charge, hold Quick-Trak for ten seconds, detect.

Ground Types and the Settings That Matter

The GPZ 8000 has no discrimination to tune; what you tune is how it hears the ground. The four Ground Types are the big lever, and the manual says which ground each one is for:

• Difficult Deep (the default): the stable all-round choice for mixed ground where mineralization and conductivity occur together and vary across the patch. If you are not sure which Ground Type to pick, the manual says to start here.
• Difficult High Yield: iron-rich, highly mineralized soil with low conductivity; stable, with good depth on small to medium gold. It handles conductivity poorly, so the manual reserves it for quiet conditions, shallow soil, or ground known to hold only small gold, paired with the Z13 or Z17.
• Normal Deep: quiet, consistent ground where conductivity is present but mineralization is low; very good depth on medium to larger gold.
• Normal Extra Deep: maximum depth on medium to large gold in benign, homogeneous, low-conductivity ground. The trade for that depth is poor handling of heavy mineralization and conductivity, so it belongs on quiet ground only, not everywhere.

Around the Ground Type: Sensitivity runs manual 1 to 10 plus Auto and Auto+, which let the detector set itself while you learn the audio; Noise Cancel sweeps 4096 channels automatically (128 channels when set by hand) and is the first thing to run near power lines or another detector; Quick-Trak ground balances in ten seconds; and the Mineralization Level readout is a prospecting tool in its own right, because the manual teaches reading its jumps as soil boundaries and building a map of where gold is likely to sit. Echo Sonic Pro sends different ground information to each ear, and the manual uses which ear gets noisy to tell you whether conductivity or mineralization is the problem and which Ground Type to move to.

Which Coil When: Z18, Z13, Z17

Minelab's manual maps the three Z-Set coils to conditions and gives an order to try them:

• Z18 18 in (46 cm): start here, every time you begin somewhere new or in deep soil. The best depth of the three and maximum coverage for large, deep gold in open country; the trade is that it is the most affected by EMI and the least suited to dense vegetation.
• Z13 13 in (33 cm): in shallow soil, or when conditions get too challenging for the Z18, change to the Z13. The most maneuverable coil, best among vegetation, obstacles and tight spaces, for small to medium gold, with better EMI handling than the Z18 and the least fatigue.
• Z17 17 in (43 cm): the all-rounder for high EMI and highly conductive ground. If conditions and interference are too severe for the Z18 and Z13, change to the Z17; it gives the best stability in EMI-heavy ground and good depth on small and medium gold.

The Single Coil Pack ships with the Z18. The Z13 and Z17 are sold separately by Minelab and are the coils to add when your ground asks for them; the 3 Coil Pack puts all three in the box from day one.

Built for all-day remote-country hunts

Two 5833 mAh Li-ion batteries ship standard at roughly 10 hours each, and the box includes a universal AC charger, a USB-C car charger, and a crocodile-clip adapter that charges straight off a 12 V vehicle battery, a detail that matters when the nearest outlet is a long drive from your patch. The Pro-Swing 125 harness moves the weight to your hips, the GA 10 guide arm steadies the swing, and the hybrid carbon fiber and fiberglass shaft collapses to 40.2 in (102 cm) for transport. The WM 14 wireless audio module is in the box too, with Minelab's low-latency wireless link and a built-in speaker.

Specifications

Feature	Minelab GPZ 8000 Single Coil Pack
Technology	GeoZVT with Echo Sonic Pro stereo audio
Operating frequency	2 to 50 kHz
Search coil	Z18 18 in (46 cm) Z-Set concentric toroidal, waterproof
Coil compatibility	Z-Set concentric toroidal coils only (Z18, Z17, Z13); GPZ 7000 coils do not fit
Ground Types	Difficult Deep (default), Difficult High Yield, Normal Deep, Normal Extra Deep
Sensitivity	Manual 1 to 10, Auto (11), Auto+ (12)
Noise cancel	Auto (4096 channels) or manual (128 channels)
Weight	2.78 kg (6.1 lb) with the Z18 coil
Length	Extended 69.7 in (177 cm), collapsed 40.2 in (102 cm)
Display	3.5 in (8.9 cm) color LCD with backlight and dual-LED flashlight
Waterproof	Detector and coil IP67, submersible to 3.3 ft (1 m) for up to 30 minutes
Batteries	Two Li-ion 5833 mAh included, approx. 10 hours each, approx. 4 hour charge
Audio	Sennheiser HD 505 wired headphones + WM 14 wireless audio module, both included
Warranty	3 years

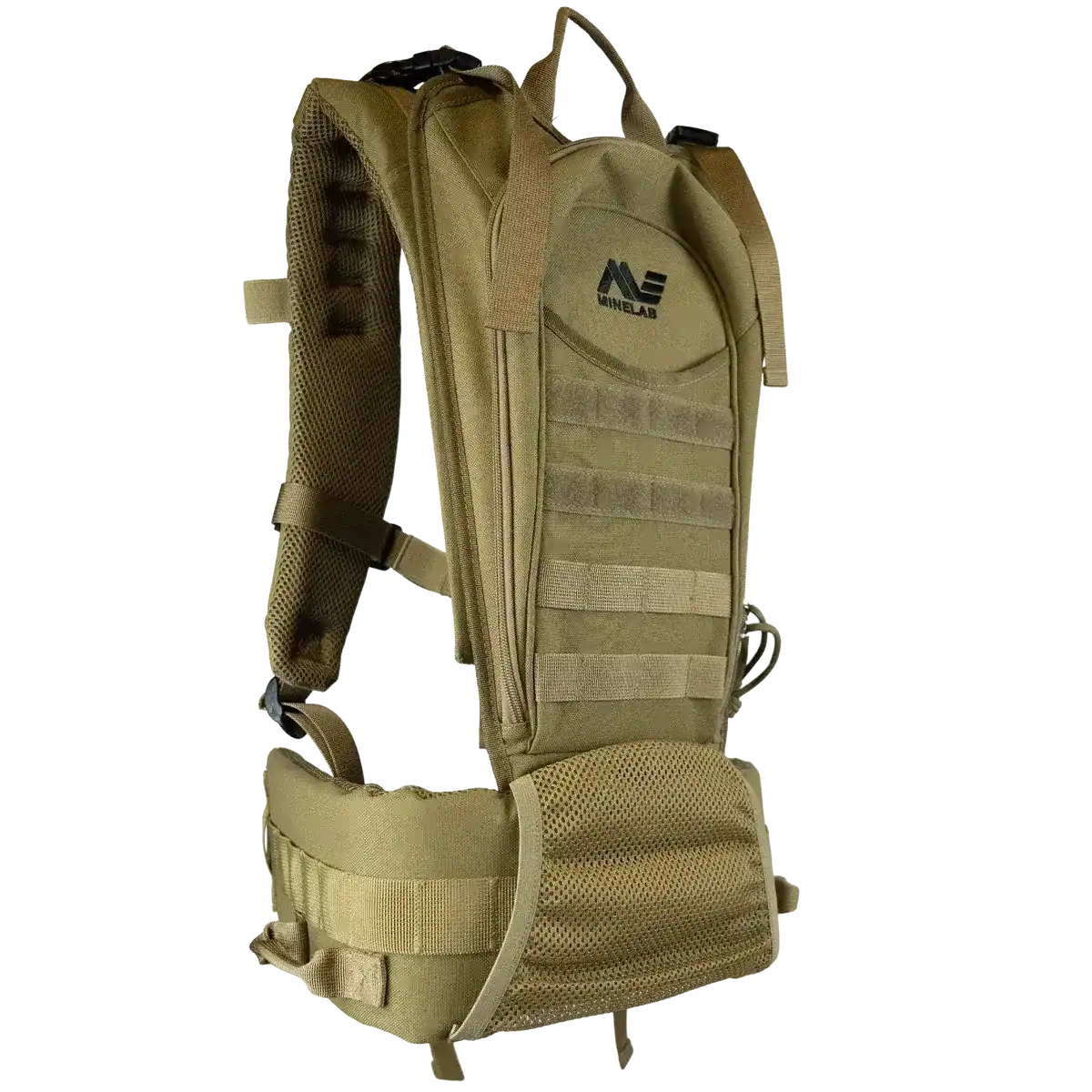

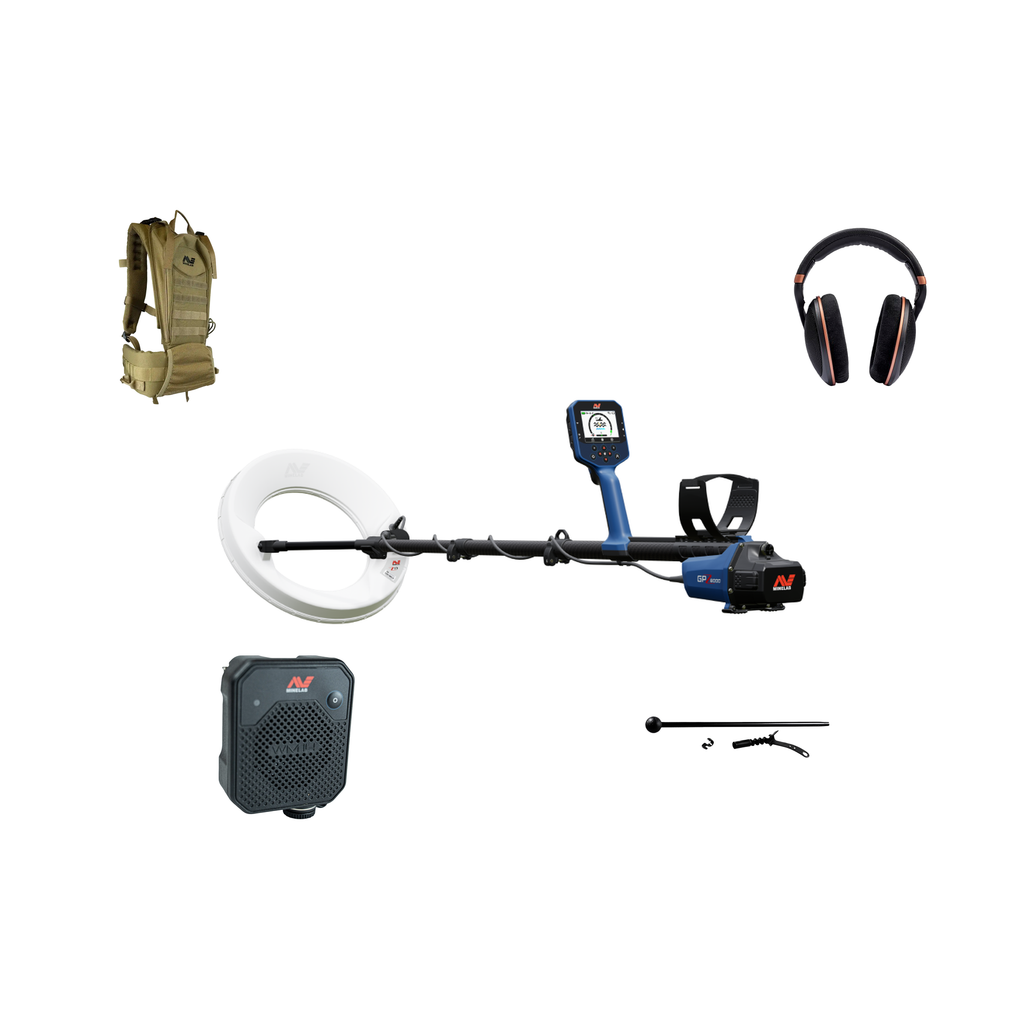

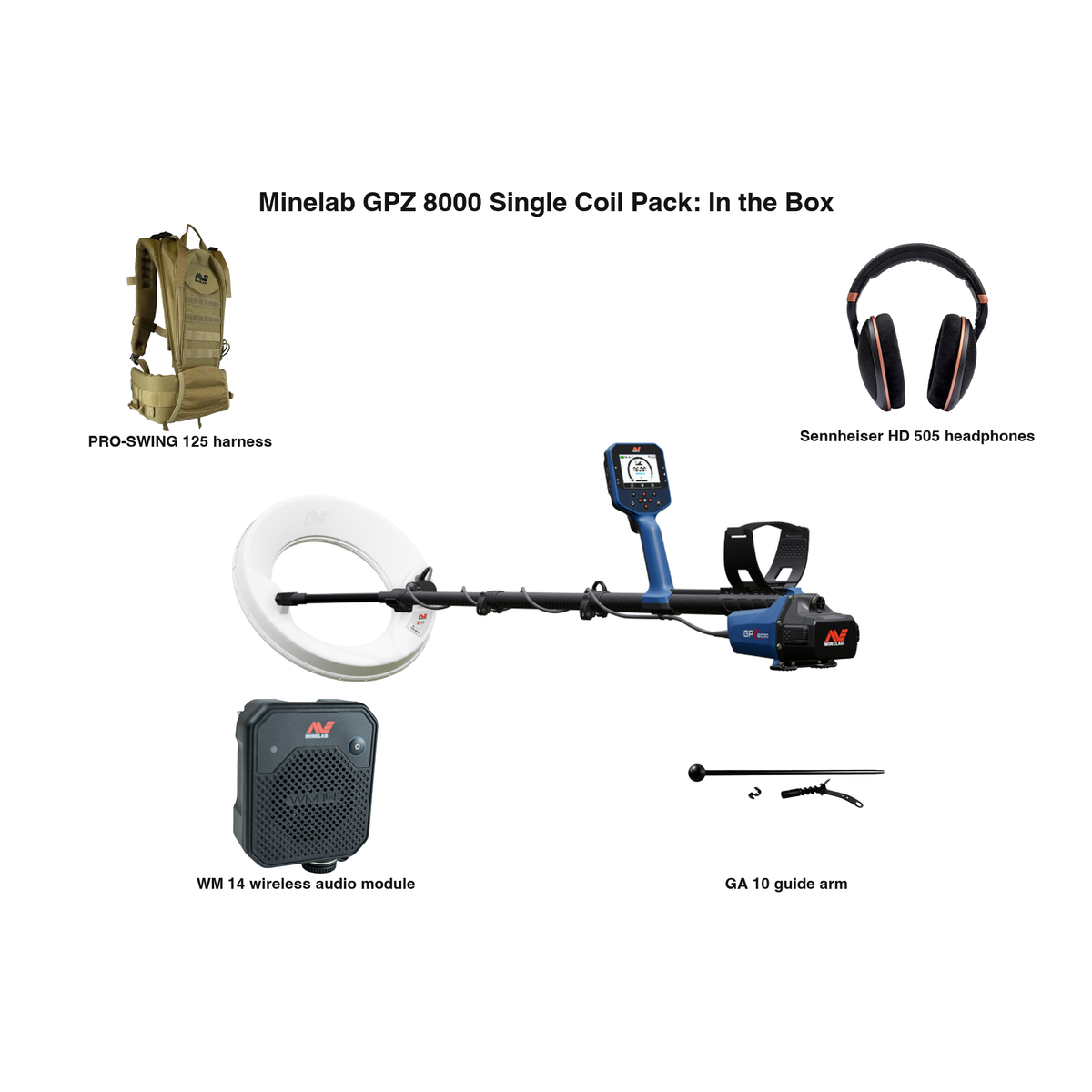

What is in the box

GPZ 8000 detector with Z18 search coil and skid plate, second detector battery, universal AC charger, USB-C car charger, crocodile-clip 12 V adapter, two USB-C cables, Sennheiser HD 505 wired headphones with hard case, Minelab auxiliary curly cable (forms a waterproof seal at the headphone socket), standard auxiliary cable, WM 14 wireless audio module, 1/4 in (6.35 mm) headphone adapter, GA 10 guide arm, bungee loops, Pro-Swing 125 harness, screen protector kit, and a specimen container for the gold.

Where the GPZ 8000 Works Well, and Where It Does Not

Mineralized and conductive goldfields: the ground GeoZVT and the Ground Types were built for. The Difficult types take iron-rich soil, Normal Deep takes quiet conductive ground, and the Z17 coil takes the interference nobody else can run in.

Worked-out patches: deep, large gold that earlier machines left behind is the GPZ 8000's reason to exist; the Z18 with Normal Extra Deep on quiet ground reaches it.

Shallow water: IP67 to 3.3 ft (1 m) for 30 minutes lets you follow a gully into a creek. It is not a dive machine, and the HD 505 headphones are not waterproof; only the headphone socket is, with the supplied curly cable locked in.

Brush and tight gullies: the Z18 is the wrong coil there; the Z13 is the one to fit. It is sold separately by Minelab, or comes in the 3 Coil Pack.

Where it is the wrong buy: coins, relics and parks (there is no discrimination), a first gold detector for most people, and any job that needs a target ID.

Know before you buy

The GPZ 8000 is a pure prospecting machine: there is no discrimination and no target ID, so plan on digging your signals. IP67 means creek crossings and rain, not diving, and the HD 505 headphones themselves are not waterproof. The detector battery requires a USB-C Power Delivery charger of at least 30 W (all included chargers qualify). Both the detector and the WM 14 are software-updatable over USB-C, so the machine grows with Minelab's firmware (no update has been published as of October 2026; the launch software is current). As a professional gold unit, this item is a final sale under our refund policy. Active and retired military: a 15% military discount exists on Minelab detectors. Call us at 256-284-2247 for details and to order with the discount; it cannot be combined with other promotions, including the free magazine subscription.

Frequently Asked Questions

Which coil comes with the GPZ 8000 Single Coil Pack?

The Z18 18 in (46 cm) Z-Set concentric toroidal coil, the depth coil of the range. Minelab's manual says to start with the Z18: it gives the best depth on medium to large gold and the widest coverage in open ground, at the cost of being the most affected by electrical interference and the least suited to dense vegetation.

What is the difference between the Single Coil Pack and the 3 Coil Pack?

The detector and every accessory are identical. The Single Coil Pack includes the Z18 coil only; the GPZ 8000 3 Coil Pack adds the Z17 17 in (43 cm) all-rounder for high-EMI and conductive ground and the Z13 13 in (33 cm) coil for small gold in shallow soil, vegetation and tight spaces.

Does the GPZ 8000 have discrimination or target ID?

No. The GPZ 8000 has no discrimination and no target ID. It is a pure prospecting machine that reports every metal target through Echo Sonic Pro audio, so you dig your signals. Ground Type, sensitivity, noise cancel and the Mineralization Level readout are the controls you tune, not a discrimination scale.

Are GPZ 7000 coils compatible with the GPZ 8000?

No. The GPZ 8000 accepts only the Z-Set concentric toroidal coils (Z18, Z17, Z13). The GPZ 7000's Super-D coils, the GPZ 14 among them, do not fit, and the GPZ 8000 is not a Super D machine, whatever a few dealer pages say.

Can I add the Z13 and Z17 coils later?

Yes. Both coils are sold separately and mount on the same detector, so a Single Coil Pack can grow into the full three-coil range as your ground demands it. If you already know you will want all three, the 3 Coil Pack is the way to own them from day one.

Can the GPZ 8000 find gold on patches that older detectors already worked out?

That is precisely where it proves itself. The GPZ 8000 is Minelab's current flagship gold platform, built on ZVT technology to detect gold deeper and across more size ranges than the machines that originally worked those patches, so hammered ground becomes productive again. Jewelry and surface gold are incidental for a machine in this class; it is bought for deep nuggets in mineralized goldfields. This Single Coil Pack is the focused entry to the platform; hunters who want coil flexibility out of the box should look at the GPZ 8000 3 Coil Pack.

Is the GPZ 8000 waterproof?

The detector, the Z18 coil and the WM 14 module are rated IP67: submersible to 3.3 ft (1 m) for up to 30 minutes, which covers creek crossings and rain, not diving. The Sennheiser HD 505 headphones are not waterproof; only the headphone socket is protected, and only when the supplied curly cable's overmold is locked in.

Is the GPZ 8000 worth it over the GPZ 7000?

For a first GPZ, yes. The GPZ 8000 is a new platform: GeoZVT with the Z-Set coils, Echo Sonic Pro stereo audio through Sennheiser HD 505 headphones, two batteries, the PRO-SWING 125 harness and the WM 14 module in the box, and a detector rated IP67 to 3.3 ft (1 m). We do not quote a depth comparison between the two; the case rests on the platform and the kit. If you already own a GPZ 7000 with coils, nothing carries over: the GPZ 14 and the other Super-D coils do not fit the GPZ 8000, so moving up means new coils. The GPZ 7000 remains a deep-gold benchmark in its own right.

Which Z-Set coil should I add first?

The Z13 13 in (33 cm) for most people. The manual puts it next after the Z18: for shallow soil, for ground that gets too challenging for the Z18, and for vegetation, obstacles and tight spaces, with better EMI handling and less fatigue. Add the Z17 17 in (43 cm) only if interference and conductivity defeat both the Z18 and the Z13; it is the coil for high-EMI, highly conductive ground. Both are sold separately by Minelab; call us and we will sort the right one for your patch.

Is the GPZ 8000 a good first gold detector?

For most people, no. It has no discrimination and no target ID, it is a final sale, and its depth is wasted until you can read ground. The manual's Automatic Operation and the Auto / Auto+ sensitivity levels do let a careful newcomer run the factory defaults, so it is not out of reach, but the Gold Monster 2000 is the lighter, simpler way into natural gold and the GPX 6000 the faster all-day machine. Buy the GPZ 8000 when you already know your patches are deep and hot.

Where can I buy a Minelab GPZ 8000 online from an authorized dealer?

Here. History Seekers Metal Detectors is an authorized Minelab dealer; every GPZ 8000 we sell is new, ships from Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. As a professional gold detector it is a final sale, so call 256-284-2247 before you order and we will confirm the pack and the coil plan with you. We price match a competitor's current listing for a new unit after verification, and Minelab's military discount program applies; contact us directly to order under it.

Is History Seekers an authorized Minelab dealer, and what warranty and return terms apply to the GPZ 8000?

History Seekers Metal Detectors is an authorized Minelab dealer; every GPZ 8000 we sell is new, ships from Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. The warranty covers the control box and the coil, and warranty service goes through Minelab's authorized US service center. As a professional gold detector the GPZ 8000 is a final sale under our refund policy, so call us at 256-284-2247 before you order if you have any doubt about which pack you need. Minelab's 15% military discount program applies to the GPZ 8000; contact us directly to order under it (not combinable with other promotions).

Who you are buying from

History Seekers Metal Detectors is an authorized Minelab dealer; every GPZ 8000 we sell is new, ships from Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. We hunt with the gear we sell, and the person who answers your call has real dirt time. Every purchase keeps everyday Americans working.
