Description
One coil cannot do both jobs. The wide coil that covers a beach or a plowed field in reasonable time is the same coil that averages three targets into one mushy signal under a park bench, and the small coil that picks a dime out of a nail bed makes a football field take all day. Most detectorists learn this a year in and go shopping for a second coil and a set of wireless headphones that actually pair. The Minelab Vanquish 560 Pro-Pack is Minelab's answer to that shopping trip, done at the factory: the fully featured Vanquish 560 with the V12X 12 x 9 in (30 x 23 cm) Double-D search coil for coverage, the V8X 8 x 5 in (20 x 13 cm) Double-D search coil for precision, and ML60 wireless earbuds in the box, all on a Multi-IQ platform whose entire body, control box included, is IP68 rated to 16 ft (5 m). It is the same detector as the Vanquish 560; step down to the Vanquish 460 for the entry price and the compact V10X coil.

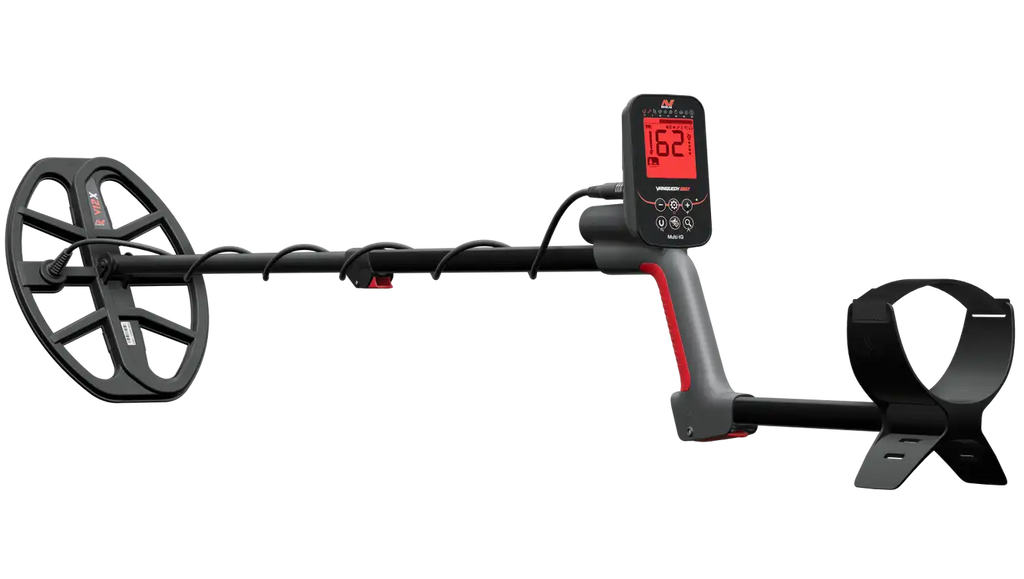

Why the Vanquish 560 Pro-Pack
The Pro-Pack runs the same Multi-IQ simultaneous multi-frequency engine as the 560, reading multiple frequencies at once so the target ID you see on dry dirt is the one you see in wet salt sand and mineralized red clay, with no frequency to pick and no ground balance routine to learn. Four search modes (Park, Field, Beach and a custom User Profile), 30 discrimination segments across a 119-level target ID scale (ferrous -19 to 0, non-ferrous 1 to 99), 10 sensitivity levels, automatic 19-channel noise cancel and five target tones come standard. The 560 platform also carries Iron Bias from -1 to 2, four levels, and that -1 setting is the aggressive unmasking position Equinox owners prize: the Vanquish 460 stops at 0 and cannot go there.
What sets the Pro-Pack apart from the base 560 is the second search coil and the wireless audio. Run the V12X for depth and coverage in open ground, then click on the V8X when the site turns into a trash pit, a tot lot or a cellar hole full of nails; both coils share one connector, so the swap takes seconds. The ML60 earbuds use Bluetooth LE Audio with the LC3 codec for low-latency target feedback, and they are the guaranteed match for this detector's wireless, which older Bluetooth headsets cannot join. No cable on the swing, and handgrip vibration backs the audio up when surf noise or a headwind gets loud.
Most dealer pages sell this kit on the count, two coils and earbuds, and stop there. Several of them also print a spec sheet that contradicts their own copy: we have seen the Pro-Pack listed at 2.6 lb next to 1.26 kg, with a 10 x 7 in coil, three search modes and no Pinpoint mode. Minelab's manual and product page say 2.8 lb (1.26 kg) with the V12X fitted, a V12X and a V8X, four modes and a Pinpoint mode with a five-level depth indicator. The one dealer framing worth adopting is the honest one: the detector inside is identical to the standard 560, so buy the Pro-Pack for the small coil and the wireless audio, and buy the 560 if you will never want either. We would rather you know that before you order than after.
Technical Specs and Benefits
| Spec (Minelab manual and usa.minelab.com) | What It Does in the Field |
|---|---|
| Multi-IQ simultaneous multi-frequency | Stable target IDs from dry soil to wet salt sand and mineralized ground; nothing to select, nothing to balance. |
| 4 search modes: Park, Field, Beach, User Profile | Presets tuned for parks, farm fields and beaches, plus one slot that saves your own settings for the V8X sites you revisit. |
| 30 discrimination segments; 119-level target ID (ferrous -19 to 0, non-ferrous 1 to 99) | Notch coins in and pull tabs out with precision; the same ID scale as the Equinox and Manticore, so what you learn here carries up. |
| 10 sensitivity levels; automatic noise cancel (19 channels) | Back off in high-EMI parks or hot ground; the detector picks its own quiet channel. |
| Iron Bias -1 to 2 (four levels) | At -1 the machine lets a coin under a nail speak; at 2 it silences bottle caps in a picnic area. The 460 does not reach -1. |
| 5 target tones; 10 volume levels and 10 ferrous volume levels | Ferrous grunts low, coins ring high, and iron can be turned down to a whisper without turning the good signals down with it. |
| Pinpoint mode with 5-level depth indicator | Zero in and cut a smaller plug, which matters most on manicured park grass and in a plowed field where a wide hole loses the target. |
| Audio: built-in speaker, ML60 wireless earbuds (Bluetooth LE Audio, LC3 codec), 3.5 mm (1/8 in) headphone socket | Wireless out of the box with the earbuds Minelab built for it; a wired headset still plugs in. Wireless requires LE Audio LC3 headphones, and older Bluetooth headsets will not pair. |

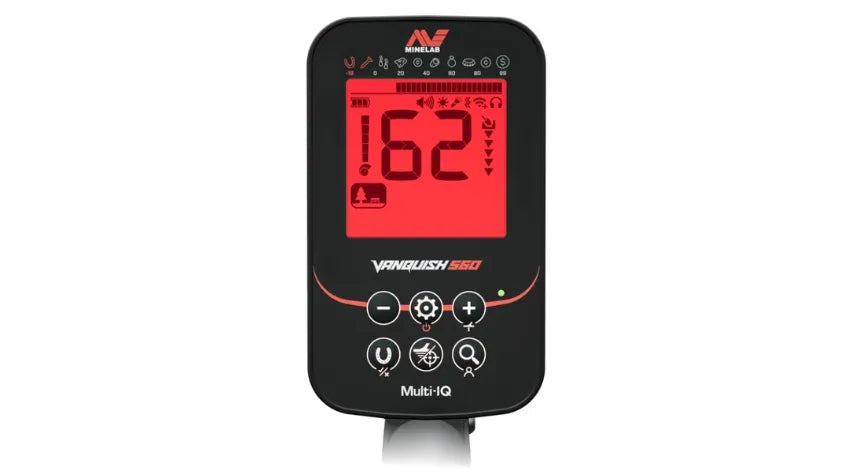

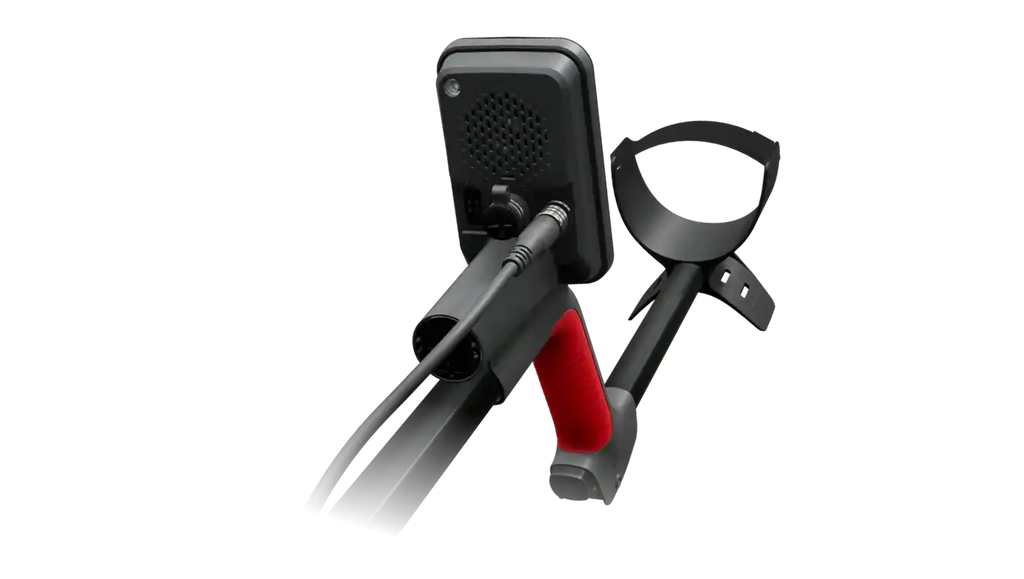

| Red-backlit monochrome LCD, keypad backlight, built-in flashlight, handgrip vibration | Readable at dawn and dusk, and a signal you can feel in surf noise or with the speaker muted. |
| IP68 waterproof, whole detector, to 16 ft (5 m) | Wade creeks, work the wet sand and dunk the control box without a second thought. Rare in this class. |
| V12X 12 x 9 in (30 x 23 cm) Double-D search coil with skid plate | Coverage and depth for open fields, dry sand and the wet slope; the coil you swing most days. |

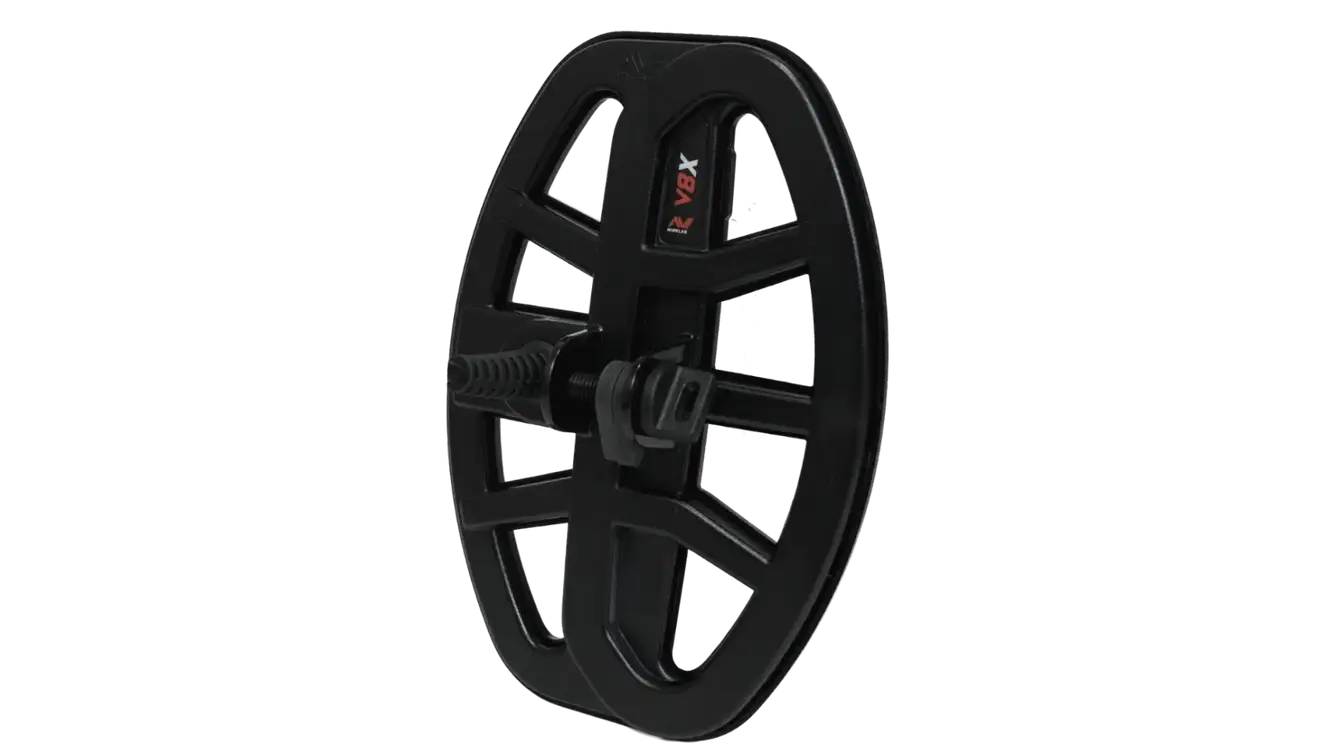

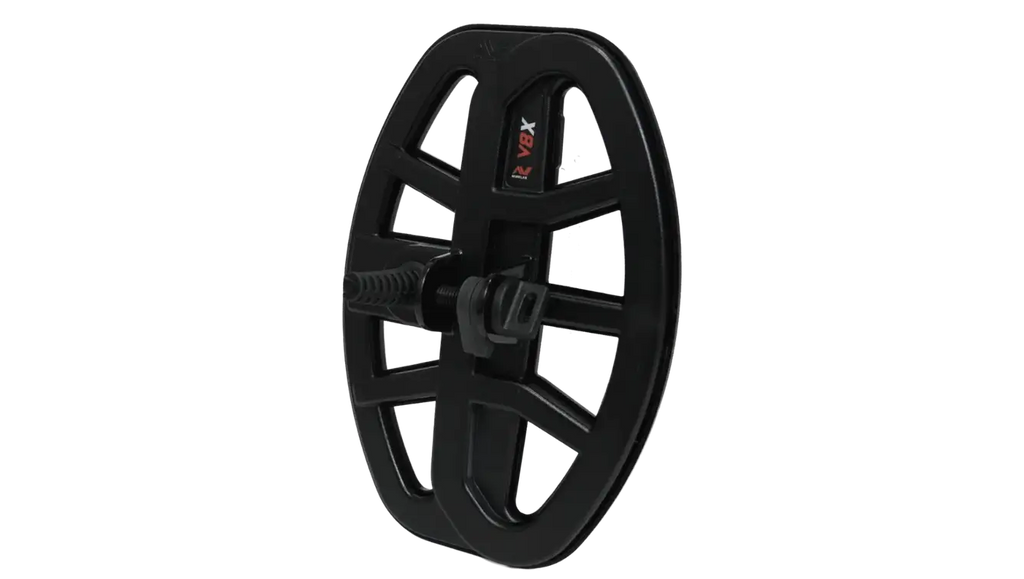

| V8X 8 x 5 in (20 x 13 cm) Double-D search coil with skid plate | A tight footprint that separates targets in nail-choked cellar holes, tot lots and creek gravel, and fits between roots and rocks. |
| Coil compatibility: V8X, V10X, V12X and Minelab Equinox EQX06, EQX11, EQX15 | Your Equinox coils cross over; the V-series coils interchange across the whole Vanquish 60 Series. |
| Internal 3.7 V / 4500 mAh lithium-ion, up to 10 hours; magnetic USB-C charge and data cable | A full day on one charge, no battery door to flood, and Minelab software updates over the same cable. |

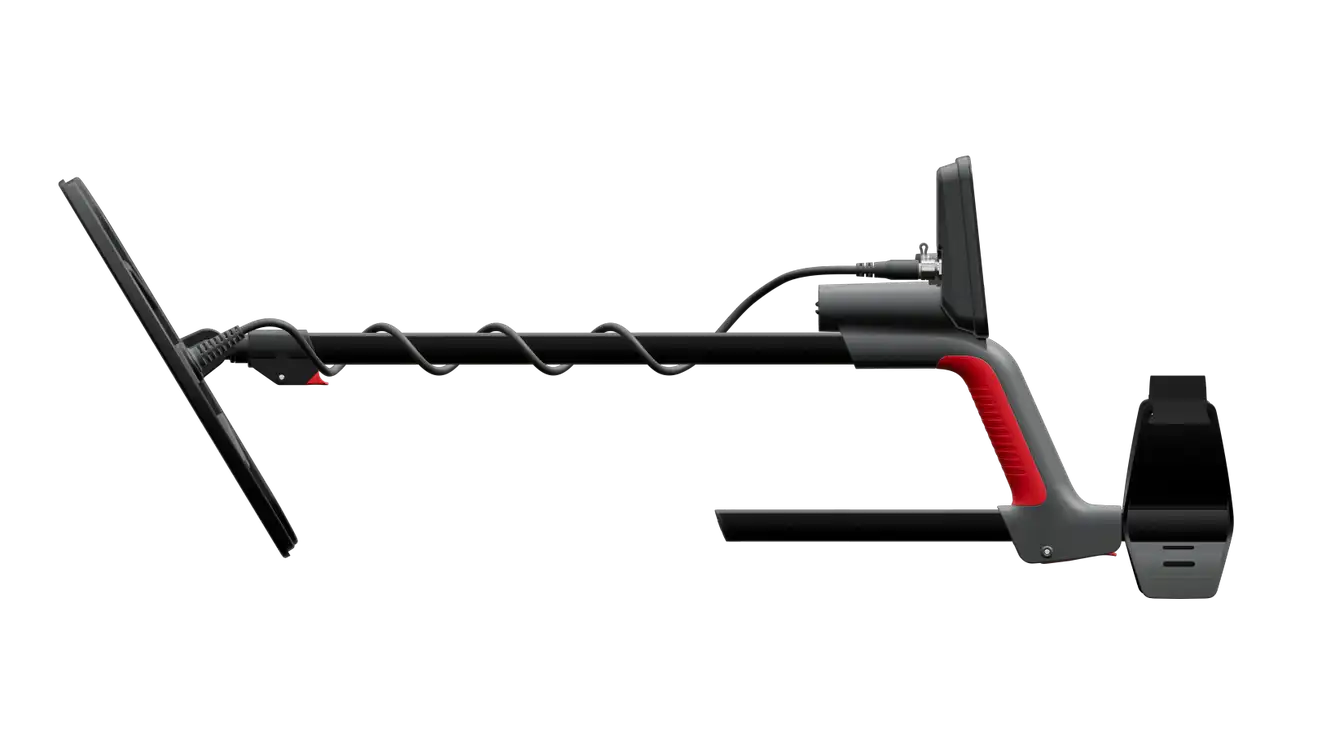

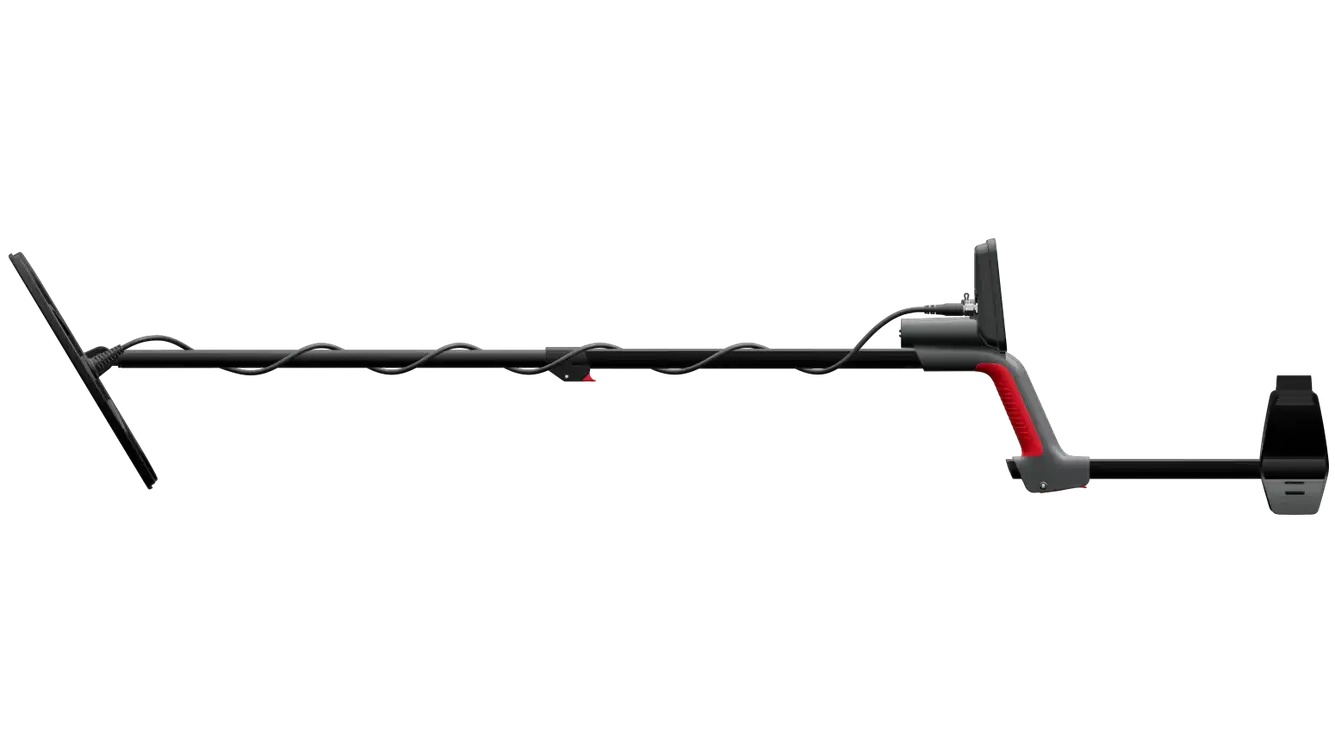

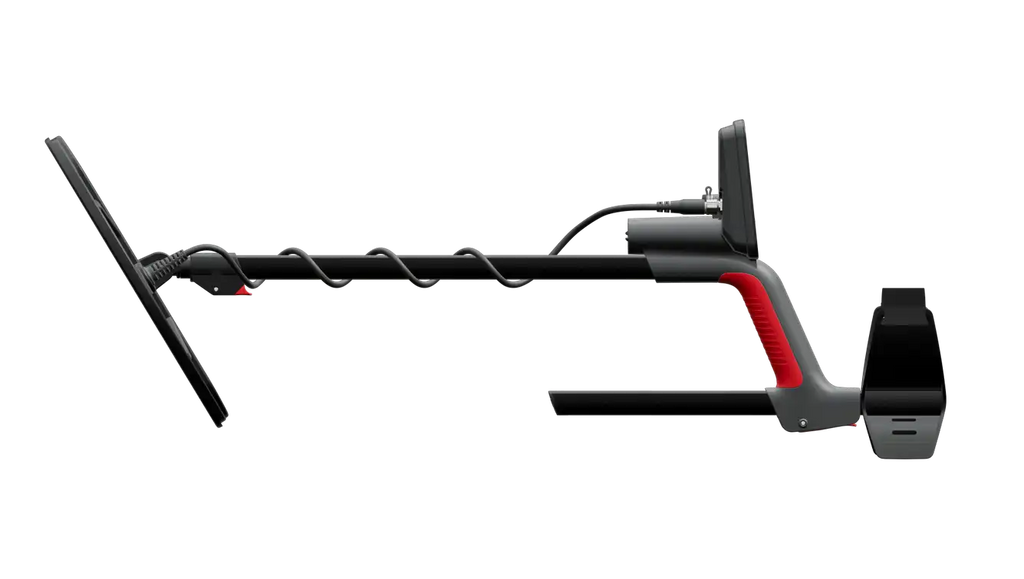

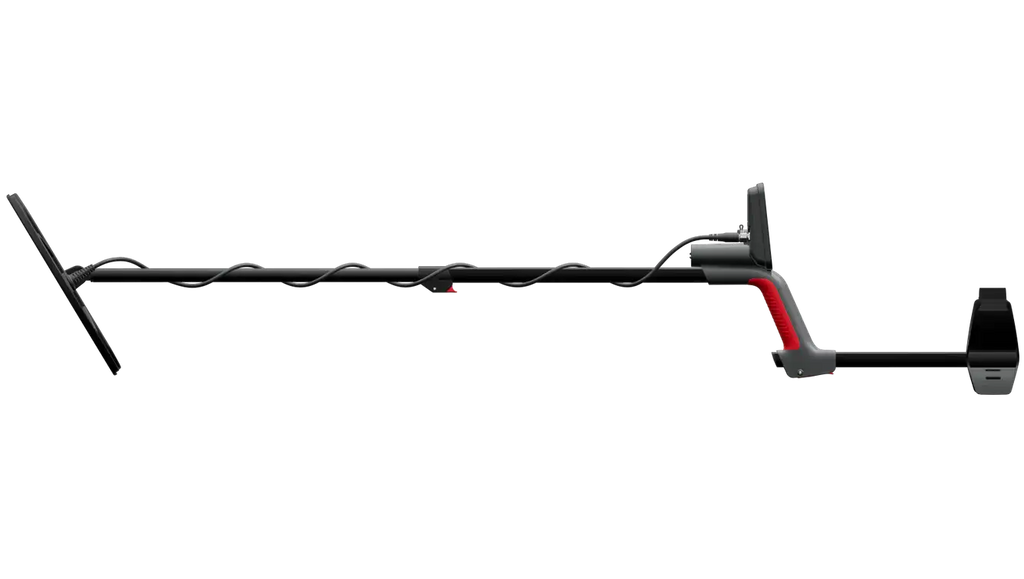

| Length 31.2 in (79.5 cm) collapsed to 56 in (142 cm) extended; 2.8 lb (1.26 kg) with the V12X coil | Collapses for the truck or a daypack; light enough for a long beach session, and lighter still with the V8X fitted. |
| Operating temperature 14 to 104 F (-10 to 40 C) | Winter creek hunts and summer beaches are both inside the rating. |
Vanquish 460 vs 560 vs 560 Pro-Pack: Which One Do You Need?
All three run Multi-IQ, are IP68 waterproof to 16 ft (5 m) with the whole detector submersible, update their software over the USB-C cable, and carry the 3-year Minelab warranty. They differ in coil, tones, Iron Bias and what is in the box.
| Feature | Vanquish 460 | Vanquish 560 | Vanquish 560 Pro-Pack |
|---|---|---|---|
| Search coil(s) | V10X 10 x 7 in (25 x 18 cm) DD | V12X 12 x 9 in (30 x 23 cm) DD | V12X 12 x 9 in (30 x 23 cm) plus V8X 8 x 5 in (20 x 13 cm) DD |
| Search modes | Park, Field, Beach, User Profile | Park, Field, Beach, User Profile | Park, Field, Beach, User Profile |
| Discrimination segments | 30 | 30 | 30 |
| Sensitivity levels | 10 | 10 | 10 |
| Iron Bias | 0 to 2 | -1 to 2 | -1 to 2 |
| Target tones | 3 | 5 | 5 |
| Audio included | Wired 3.5 mm headphones | Wired 3.5 mm headphones | ML60 wireless earbuds (Bluetooth LE Audio); wired headphones not included |
| Wireless audio | Yes (LC3 codec) | Yes (LC3 codec) | Yes (LC3 codec) |
| Display and light | Red backlight LCD, flashlight | Red backlight LCD, flashlight | Red backlight LCD, flashlight |
| Handgrip vibration | Yes | Yes | Yes |
| Weight | 2.6 lb (1.16 kg) | 2.8 lb (1.26 kg) | 2.8 lb (1.26 kg) with the V12X fitted |
| Coil compatibility | V-series and Equinox EQX coils | V-series and Equinox EQX coils | V-series and Equinox EQX coils |
| Best for | The full feature set and the compact V10X coil at the lowest price | Deeper coverage, more tones, finer iron control | The complete two-coil kit with wireless earbuds |
Choose the Vanquish 460 for the full 60 Series feature set at the lowest cost with a coil that separates well in trash. Choose the Vanquish 560 for the larger V12X search coil, five target tones and Iron Bias that reaches -1, with wired headphones in the box. Choose the Pro-Pack when you already know you want both coils and wireless audio; it is the same 560 with the V8X and the ML60 earbuds added and the wired headphones left out. Everything that fits all three is on our Vanquish 460 and 560 accessories page.
Vanquish 560 Pro-Pack vs X-Terra Elite Expedition Pack
Minelab sells two factory two-coil kits with the V12X and the V8X, and they get cross-shopped every week. Both are Multi-IQ, both are IP68 to 16 ft (5 m), both carry Iron Bias -1 to 2 and a 3-year Minelab warranty. The difference is how much you want to adjust.
| Feature | Vanquish 560 Pro-Pack | X-Terra Elite Expedition Pack |
|---|---|---|
| Frequency technology | Multi-IQ simultaneous multi-frequency | Multi-IQ; Park and Field also offer a 15 kHz single frequency |
| Coils in the box | V12X 12 x 9 in (30 x 23 cm) and V8X 8 x 5 in (20 x 13 cm) DD | V12X 12 x 9 in (30 x 23 cm) and V8X 8 x 5 in (20 x 13 cm) DD |
| Wireless audio in the box | ML60 earbuds, Bluetooth LE Audio (LC3) | ML 85 wireless headphones |
| Sensitivity | 10 levels | 25 levels |
| Target tones | 5 | 1, 2, 5, All Tones, Depth |
| Ground balance and recovery speed | Fully automatic operation (Minelab's words) | Auto, manual, tracking; recovery speed 1 to 3 |
| Battery | Internal 4500 mAh, up to 10 hours | Internal 5100 mAh |
| Weight | 2.8 lb (1.26 kg) with V12X | 2.9 lb (1.3 kg) |
| Best fit | Turn-on-and-go two-coil kit with the shortest menu | The same two coils for the detectorist who wants to tune ground balance, recovery speed and 25 sensitivity steps |
Choose the Vanquish 560 Pro-Pack if you want the two coils, whole-machine waterproofing and Multi-IQ with the least to learn. The Minelab X-Terra Elite Expedition Pack is the same coil pair on a machine with manual and tracking ground balance, a recovery-speed control and over-ear ML 85 headphones, for the buyer who intends to tune.
Two search coils, two jobs
The V12X 12 x 9 in (30 x 23 cm) Double-D search coil gives you wide coverage and depth for parks, fields and beaches, and it is the coil to leave on for the wet slope at low tide. The V8X 8 x 5 in (20 x 13 cm) Double-D search coil tightens the detection footprint for better separation around obstacles and in dense trash: nail-filled cellar holes, tot lots with pull tabs every foot, creek gravel between rocks. Both coils share the same connector and both come with a skid plate, so swapping in the field takes seconds and the coil you are not using rides in the pack. Save a User Profile for each coil and the switch is two button presses.
Your Equinox coils cross over
Here is a detail most buyers miss: the Vanquish 60 Series accepts the Minelab Equinox EQX06, EQX11 and EQX15 coils as well as its own V-series coils. If you already own an Equinox, this makes a superb waterproof second machine, and your existing coils come with you. It also means the V8X, V10X and V12X coils interchange across the whole Vanquish family, so a household running more than one Minelab, whether it is a spouse, a kid learning the hobby or your own backup, shares one set of coils instead of buying doubles. Minelab does not state the reverse, so do not count on a V-series coil fitting an Equinox.
Who It's For
The Vanquish 560 Pro-Pack belongs with the buyer who hunts more than one kind of site, the beach and creek hunter who needs the control box to survive a dunk, the coin shooter working iron-choked old parks who wants a small coil on day one, and the Equinox owner who wants a waterproof second detector that takes the same coils. Beginner to intermediate, with Park mode ready to swing as soon as the battery is charged, and enough headroom in Iron Bias and the User Profile to keep an experienced detectorist busy.
Honest limits: the detector inside is identical to the standard Vanquish 560, so the Pro-Pack is only the better buy if you want the V8X and the wireless audio. Wireless is Bluetooth LE Audio with the LC3 codec only; the ML60 earbuds in the box are the sure thing, older Bluetooth headsets will not pair, and wired headphones are not included with this kit. The earbuds are for land, beach and wading; when the control box goes under, the detector's IP68 rating is the detector's, and the built-in speaker or a wired headset on the 3.5 mm (1/8 in) socket is the audio path. The battery is internal, so 10 hours is the day with no field swap. There is no gold prospecting mode, and at 2.8 lb (1.26 kg) with the V12X it is a little heavier than the 460 with its V10X.

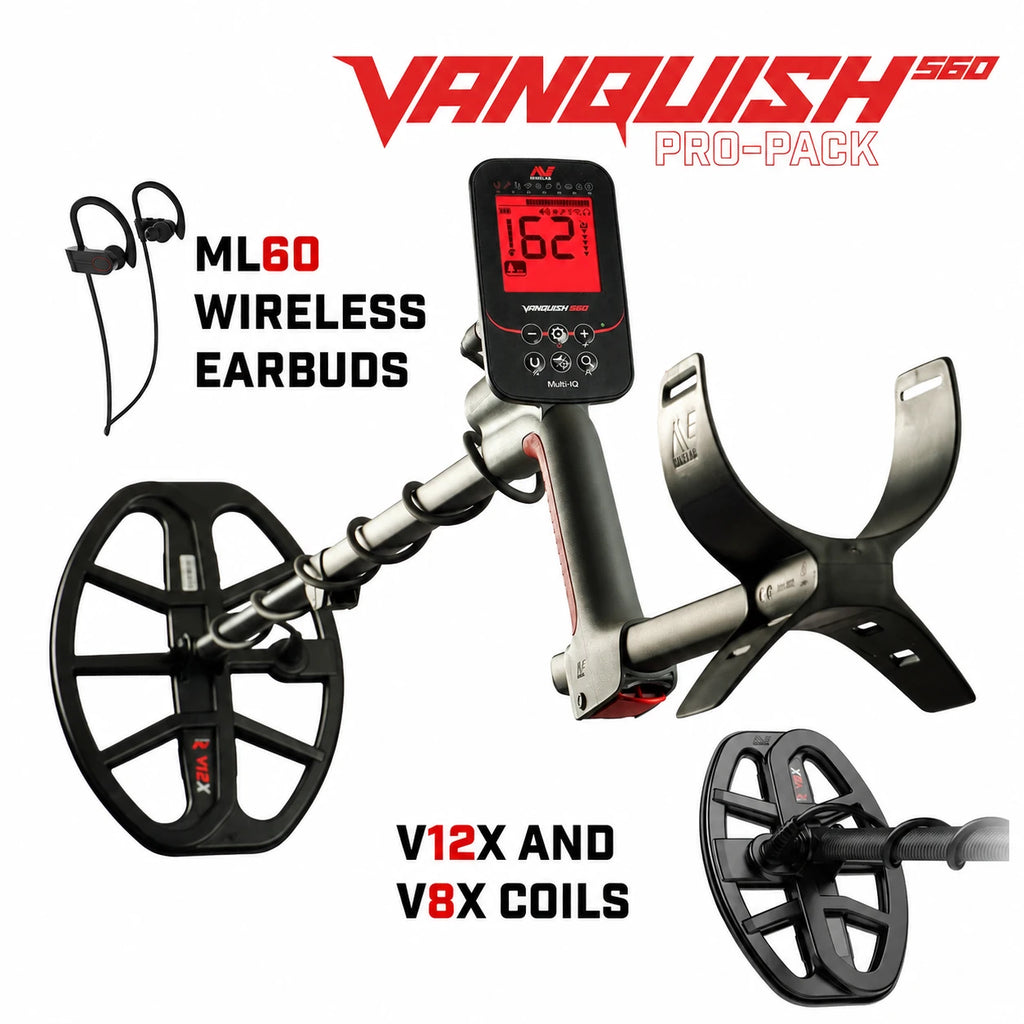

What Comes Standard in the Factory Box
- Minelab Vanquish 560 detector
- V12X 12 x 9 in (30 x 23 cm) Double-D search coil with skid plate
- V8X 8 x 5 in (20 x 13 cm) Double-D search coil with skid plate
- ML60 wireless earbuds with Bluetooth LE Audio (LC3 codec)
- Removable armrest with strap
- USB-C magnetic charging and data cable
- Getting Started Guide
- 3-year Minelab warranty
The Pro-Pack includes the ML60 wireless earbuds in place of the wired 3.5 mm headphones that ship with the standard 560. Minelab's manual and software updates are on Minelab's Vanquish 560 Pro-Pack page. The same kit also ships in two factory bundles: the Vanquish 560 Pro-Pack Bundle with the Minelab backpack and the Vanquish 560 Pro-Pack Bundle with the PRO-FIND 35 pinpointer and Adventure Pack.
Minelab Military Discount
Minelab offers a 15% military discount on Minelab detectors, and the Vanquish 560 Pro-Pack qualifies. Contact us directly at 256-284-2247 for details and to order with the discount. Not combinable with other promotions or discounts.
See it in the field
History Seekers hunts run on YouTube and Facebook, where over 1.1 million followers watch us dig relics, coins, and gold across the Southeast and beyond. We rotate machines depending on the site and the ground conditions, and every find you see was made with gear we sell and use ourselves.
One more thing worth knowing about who you are buying from. History Seekers is a small American business, not a big box retailer where nobody on staff has ever swung a detector, and not a warehouse that just moves boxes. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. Years of field experience before hire is not a coincidence, it is a requirement. The person who answers your questions may be the same one who packs your order and drives it to the UPS drop-off, and every purchase keeps everyday Americans working.
Frequently Asked Questions
Is the Minelab Vanquish 560 Pro-Pack fully waterproof?
Yes, the whole detector. The Vanquish 560 is IP68 rated with the entire machine, control box included, submersible to 16 ft (5 m) per Minelab. That is the big 60 Series upgrade over the previous-generation Vanquish 540 Pro-Pack, whose coil was rated to 3.3 ft (1 m) but whose control box was only water resistant and could not go under. The ML60 earbuds are wireless earbuds for land and wading, not dive gear; a wired headset plugs into the 3.5 mm socket for submerged hunting.
What does the 560 Pro-Pack include that the standard Vanquish 560 does not?
The detector is identical. The Pro-Pack adds the V8X 8 x 5 in (20 x 13 cm) Double-D search coil with its skid plate for trashy, tight sites alongside the standard V12X 12 x 9 in (30 x 23 cm) coil, and swaps the wired 3.5 mm headphones for ML60 wireless earbuds with Bluetooth LE Audio. Multi-IQ, the four search modes, 30 segments, Iron Bias -1 to 2, five tones, the IP68 rating and the 3-year Minelab warranty are the same on both. The wireless on both is Bluetooth LE Audio with the LC3 codec only, so most older Bluetooth headsets will not pair; the ML60 earbuds in the Pro-Pack box are Minelab's own LE Audio earbuds and the guaranteed match, and a 3.5 mm (1/8 in) socket remains for wired headphones. Choose the Pro-Pack if you want the small coil and wireless audio; choose the standard 560 if you do not.
Vanquish 460 vs 560 vs 560 Pro-Pack: which one do I need?
All three are fully featured, fully submersible 60 Series Multi-IQ machines with four modes (Park, Field, Beach, User Profile), 30 discrimination segments, 10 sensitivity levels, wireless Bluetooth LE Audio, and a backlit display with flashlight and vibration. The 460 comes with the compact V10X 10 x 7 in (25 x 18 cm) coil, three target tones and Iron Bias 0 to 2, and it is the lightest at 2.6 lb (1.16 kg). The 560 steps up to the V12X 12 x 9 in (30 x 23 cm) coil, five target tones and Iron Bias reaching -1 for aggressive unmasking in iron-choked ground, with wired headphones in the box. The 560 Pro-Pack is that same 560 plus the V8X 8 x 5 in (20 x 13 cm) coil and ML60 wireless earbuds, without the wired headphones. Pick the 460 for the lowest cost and a coil that separates well in trash, the 560 for coverage and finer iron control, and the Pro-Pack when you know you want both coils and wireless audio from day one.
Will my Equinox coils fit the Vanquish 560 Pro-Pack?
Yes. Per Minelab's Vanquish 460/560 manual, the Vanquish 60 Series accepts the Equinox EQX06, EQX11 and EQX15 coils as well as its own V8X, V10X and V12X coils. If you already own an Equinox, your coils cross over, which makes the Pro-Pack an excellent waterproof second machine, and the V-series coils interchange across the whole Vanquish family for a spouse or a kid learning the hobby. Minelab does not state the reverse, so do not count on a V-series coil fitting an Equinox.
Vanquish 560 Pro-Pack vs X-Terra Elite Expedition Pack: which two-coil kit should I buy?
Both are Minelab factory kits with the V12X 12 x 9 in (30 x 23 cm) and V8X 8 x 5 in (20 x 13 cm) coils, both run Multi-IQ, both are IP68 waterproof to 16 ft (5 m), and both carry Iron Bias -1 to 2 and a 3-year Minelab warranty. The Vanquish 560 Pro-Pack is the turn-on-and-go version: 10 sensitivity levels, five tones, fully automatic operation, ML60 Bluetooth LE Audio earbuds and a 4500 mAh battery good for up to 10 hours, at 2.8 lb (1.26 kg). The X-Terra Elite Expedition Pack adds 25 sensitivity levels, manual and tracking ground balance, a recovery-speed control, a 15 kHz single-frequency option in Park and Field, tone options of 1, 2, 5, All Tones and Depth, over-ear ML 85 wireless headphones and a 5100 mAh battery, at 2.9 lb (1.3 kg). Buy the Pro-Pack for the shortest menu; buy the Expedition Pack if you want to tune.
Can the Vanquish 560 Pro-Pack find gold?
Gold jewelry, comfortably; the Pro-Pack's V8X coil is a good tool for picking rings out of trashy parks, and the V12X covers beaches. What the 560 does not offer is a gold prospecting mode; its modes are Park, Field and Beach plus a User Profile. Nuggets in mineralized goldfields belong to machines built for them: the Minelab Equinox 900 with its Gold mode as the hybrid step, or the Minelab Gold Monster 2000 as the dedicated one.
Is History Seekers an authorized Minelab dealer?
Yes. History Seekers Metal Detectors is an authorized Minelab dealer; every Vanquish 560 Pro-Pack we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Minelab also offers a 15% military discount on Minelab detectors; contact us directly at 256-284-2247 to order with it. Setup questions are answered by detectorists who run these machines on real permissions.
History Seekers Metal Detectors is an authorized Minelab dealer; every Vanquish 560 Pro-Pack we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Your setup questions get answered by detectorists who run these machines on real permissions, and we will help you decide which coil goes on first, pair the earbuds, save your User Profiles and get you digging keepers instead of nails. Because at History Seekers, the story is more important than the artifact.
