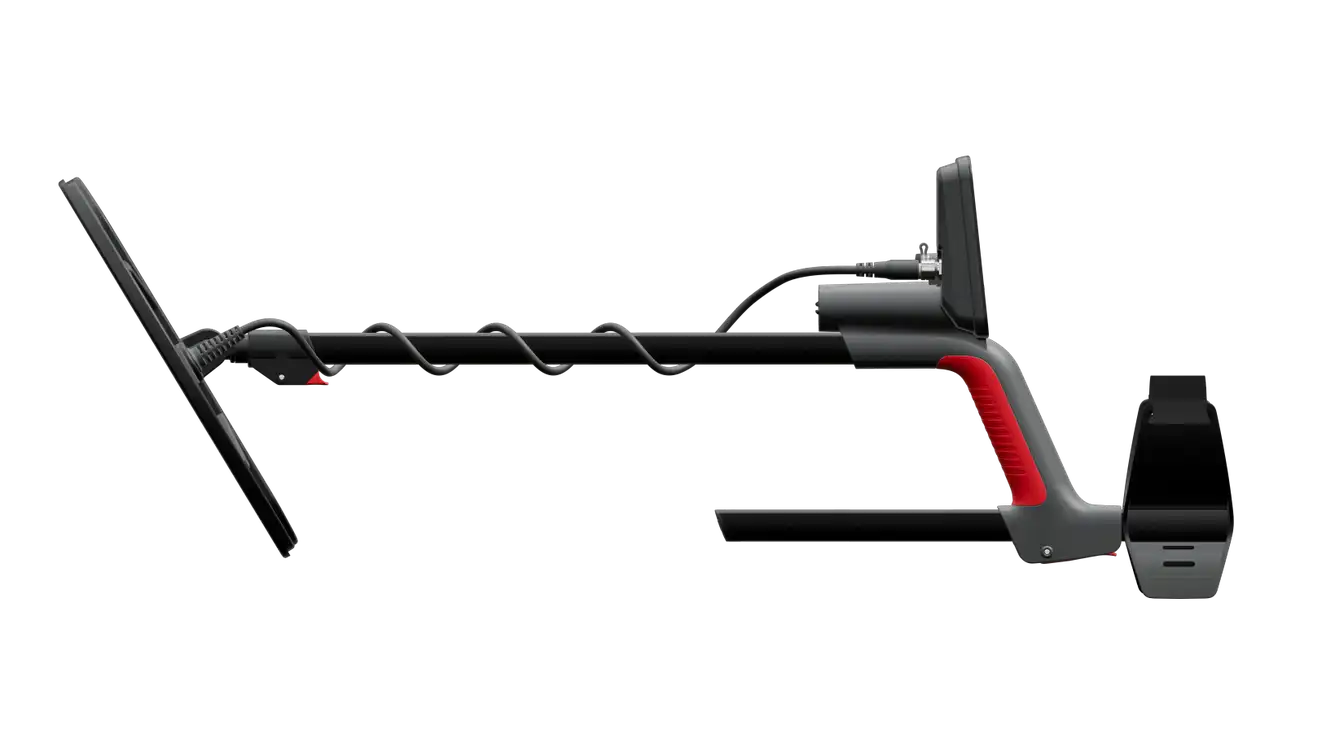

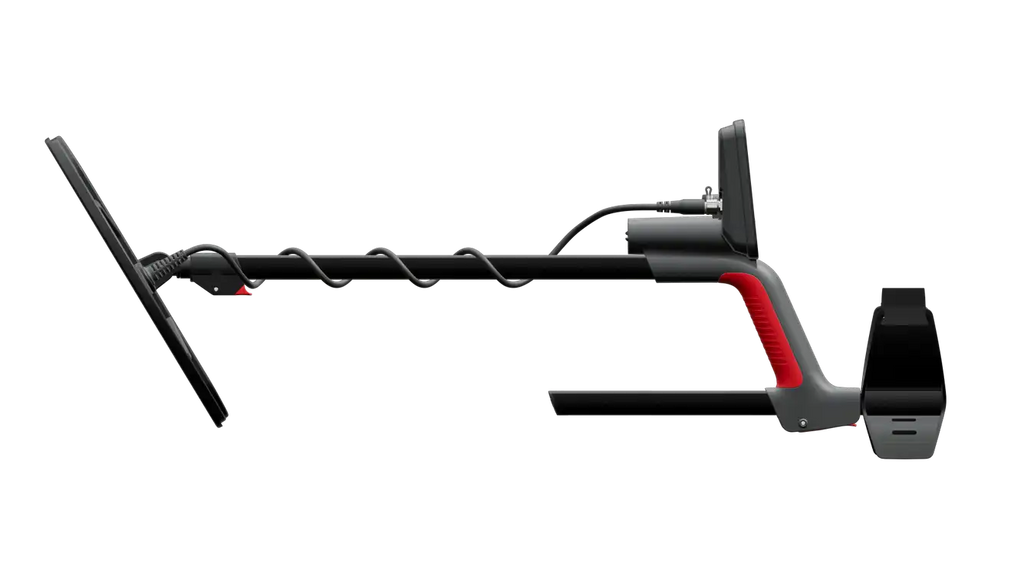

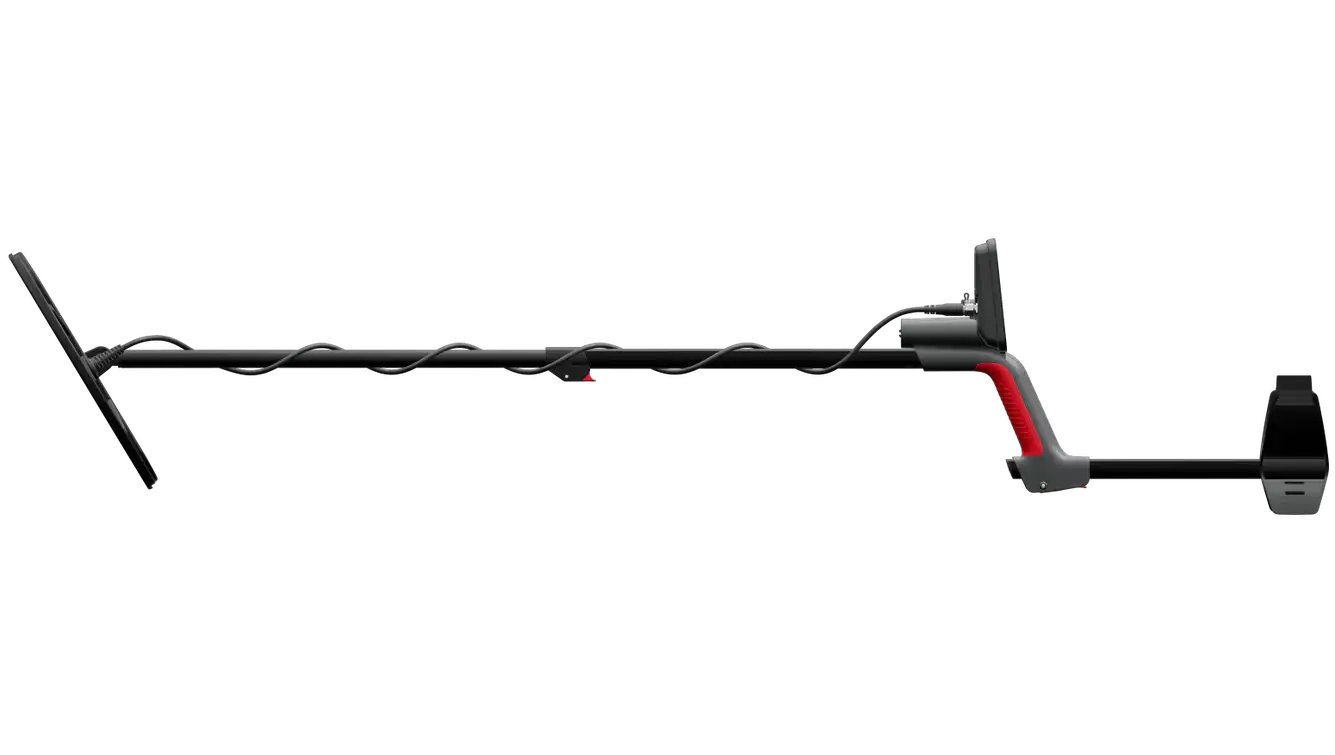

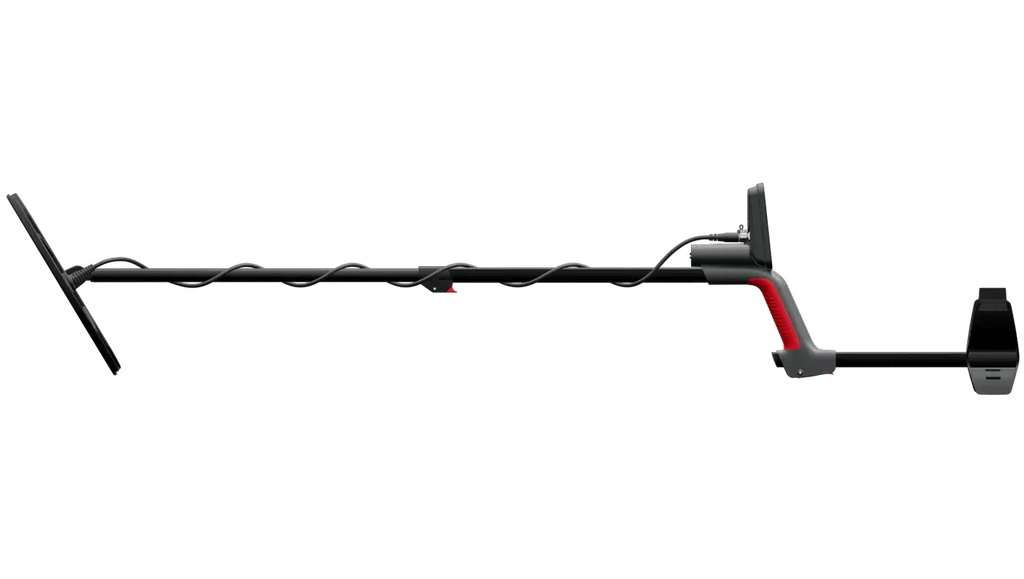

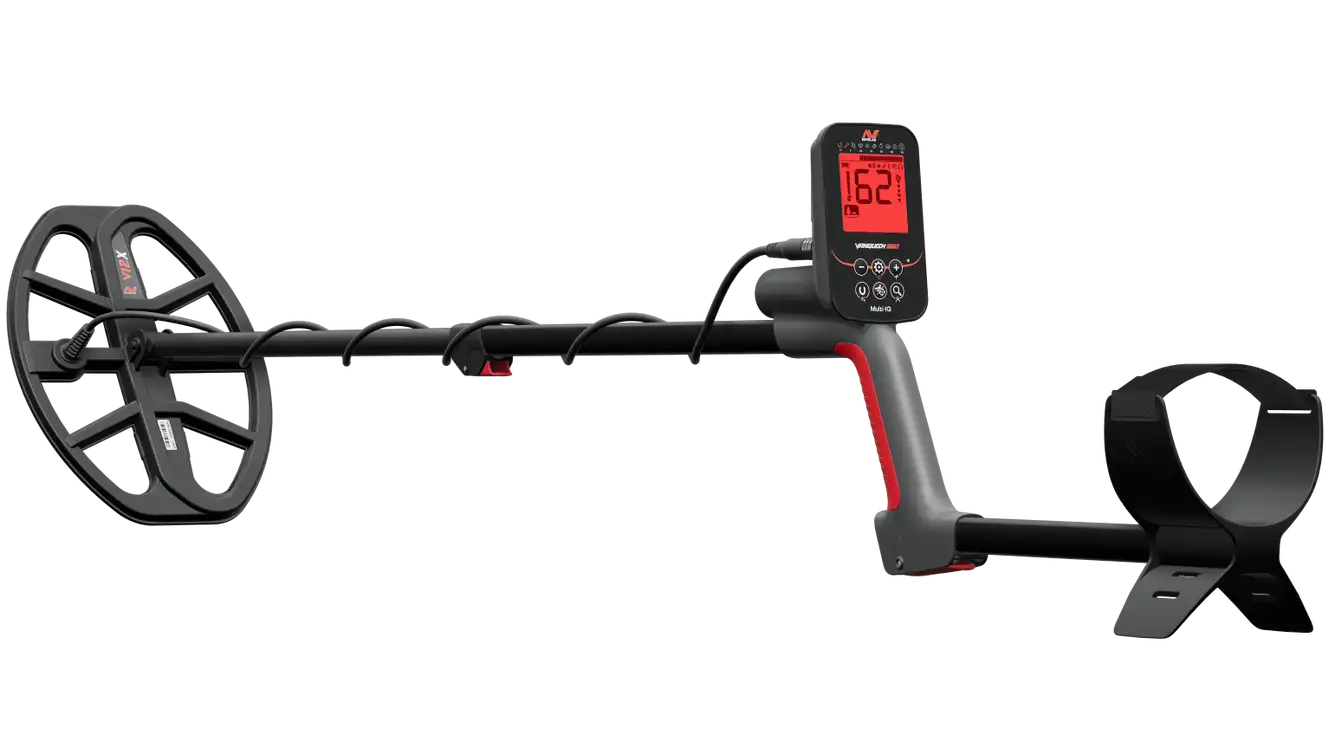

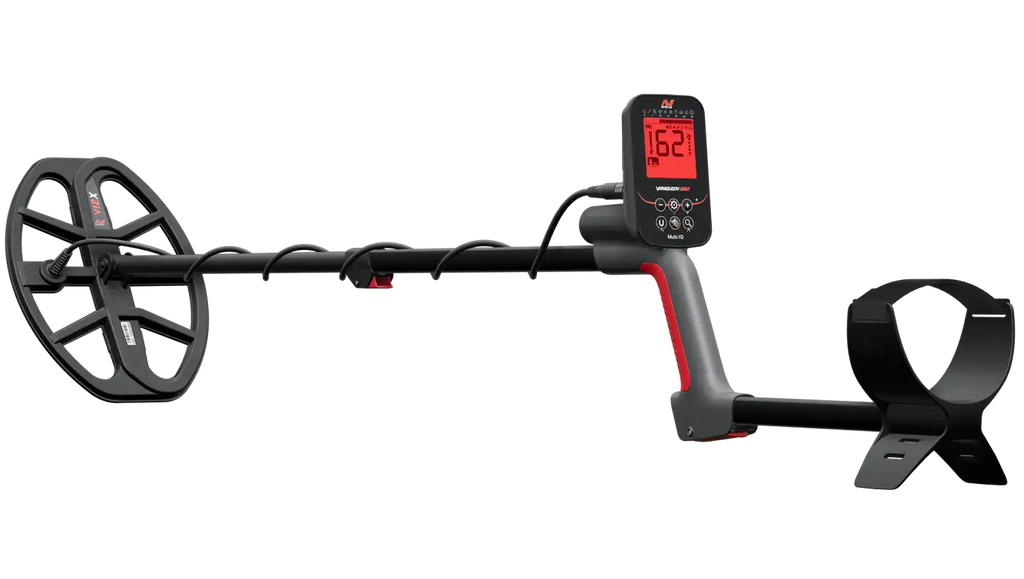

Minelab Vanquish 560 Waterproof Multi-Frequency Metal Detector with V12X Search Coil

Old homesites and hard-hunted parks share one problem: the best target on the site is usually lying next to a nail, and a detector that cannot separate the two either goes quiet over it or digs you a hole full of iron. The Minelab Vanquish 560 is the machine in the Vanquish 60 Series built for that ground. It runs Minelab's Multi-IQ simultaneous multi-frequency, adds five target tones and an Iron Bias control that reaches -1 for aggressive unmasking, and swings the V12X 12 x 9 in (30 x 23 cm) Double-D search coil for coverage and depth. The whole detector, control box included, is IP68 rated to 16 ft (5 m). It is the current-generation machine that takes the Vanquish 540's place in the lineup, ships with Minelab wired 3.5 mm headphones, and steps up to the Vanquish 560 Pro-Pack for a second precision coil and ML60 wireless earbuds.

Why the Vanquish 560

Multi-IQ reads multiple frequencies at once, so the target ID you see on dry dirt is the one you see in wet salt sand and mineralized red clay, with no frequency to pick and no ground balance routine to learn. The 560 shares the Vanquish 460's four modes (Park, Field, Beach, and a custom User Profile), 30 discrimination segments across a 119-level target ID scale (ferrous -19 to 0, non-ferrous 1 to 99), 10 sensitivity levels, automatic 19-channel noise cancel, and wireless audio, then steps up in three ways that matter in tough ground. The V12X 12 x 9 in (30 x 23 cm) Double-D coil covers more ground per swing and reaches deeper while the Double-D pattern holds target separation in iron-heavy soil. Five target tones instead of three, with 10 volume levels and a separate 10-level ferrous volume, let you turn the iron down in your ears while coins and rings stay loud. And Iron Bias runs four levels, from -1 to 2: the -1 setting is the aggressive unmasking setting Equinox owners prize, and the 460 cannot go there.

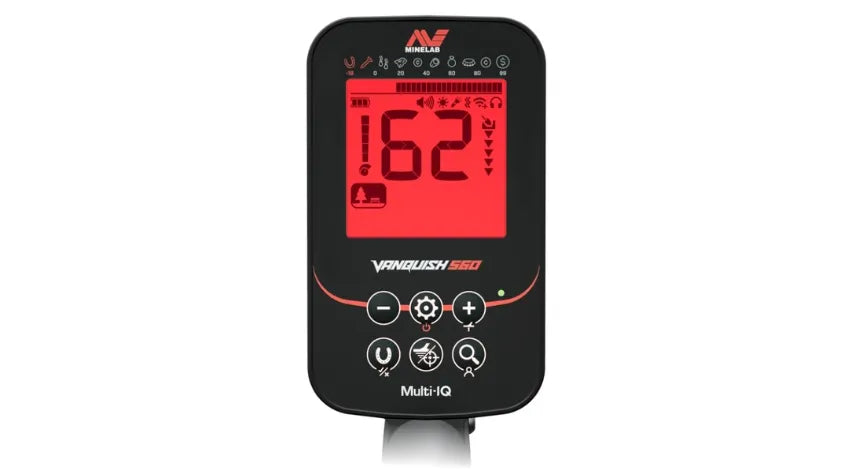

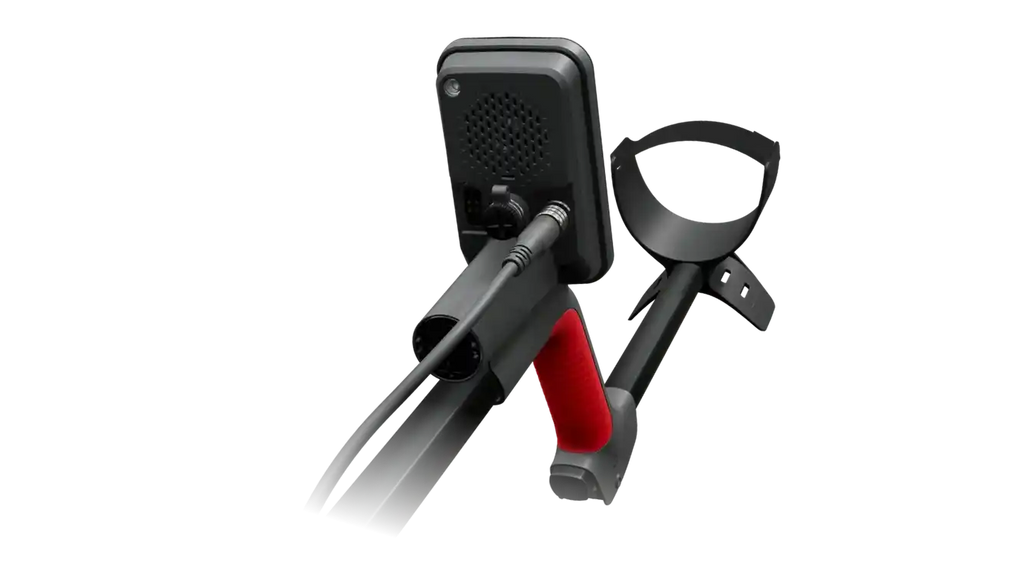

The hardware matches the engine. Audio runs three ways: the built-in speaker, the Minelab wired 3.5 mm headphones in the box, or wireless Bluetooth LE Audio (LC3 codec). A red-backlit monochrome display with keypad backlight, a built-in flashlight, and handgrip vibration keep you on target at dawn, at dusk, and in noisy surf. The internal 4500 mAh lithium-ion battery runs up to 10 hours and charges over a magnetic USB-C cable that doubles as the data cable for Minelab software updates, so the machine you buy keeps improving. It collapses to 31.2 in (79.5 cm) for the truck, extends to 56 in (142 cm), and weighs 2.8 lb (1.26 kg) with the V12X coil fitted.

Most dealer pages sell the 560 on two words, waterproof and Multi-IQ, and the details drift from there: one top result still carries the older Vanquish 540's page title and a 3.3 ft (1 m) coil rating in its description, several print the 560 at 2.6 lb, and one lists a swappable battery and gold as a best-for use. Minelab's manual says 2.8 lb (1.26 kg) with the V12X coil, an internal battery, no gold mode, and 16 ft (5 m) for the entire detector. The framing worth borrowing is the honest one. What you gain coming from a single-frequency machine is target ID stability across changing ground and an ID scale that matches the Equinox and Manticore. What you gain over the 460 is coverage, two more tones, and one more Iron Bias step. What the Pro-Pack adds is a second coil and wireless earbuds. That is the whole ladder, and we would rather you know it before you buy.

Technical Specs and Benefits

Vanquish 460 vs 560 vs 560 Pro-Pack: Which One Do You Need?

All three run Multi-IQ, are IP68 waterproof to 16 ft (5 m) with the whole detector submersible, update their software over the USB-C cable, and carry the 3-year Minelab warranty. They differ in coil, tones, Iron Bias, and what is in the box.

Choose the 560 for the biggest stock coil in the series, five tones, and Iron Bias that reaches -1 for iron-choked ground. Step down to the Vanquish 460 for the same feature set on the compact V10X coil at the lowest cost. Step up to the Vanquish 560 Pro-Pack for the second V8X precision search coil and ML60 wireless earbuds included. Everything that fits all three is on our Vanquish 460 and 560 accessories page.

Your Equinox coils cross over

Here is a detail most buyers miss: the Vanquish 60 Series accepts the Minelab Equinox EQX06, EQX11, and EQX15 coils as well as its own V-series coils. If you already own an Equinox, this makes a superb waterproof backup, and your existing coils come with you. It also means the V8X, V10X, and V12X coils interchange across the whole Vanquish family, so a household running more than one Minelab, whether it is a spouse, a kid learning the hobby, or your own second machine, shares one set of coils instead of buying doubles. Minelab does not state the reverse, so do not count on a V-series coil fitting an Equinox.

Who It's For

The Vanquish 560 belongs with the coin and relic hunter working old homesites and farm fields where the good targets hide among nails, the beach and creek hunter who wants the biggest stock coil in the series and a control box that survives a dunk, the first-time buyer who would rather start on multi-frequency with the full tone and iron controls than upgrade to them later, and the Equinox owner who wants a waterproof second detector that takes the same coils. Beginner to intermediate, with Park mode ready to swing as soon as the battery is charged. If you want manual ground balance, tracking, and a recovery-speed control on top of Multi-IQ, that is the Minelab X-Terra Elite; the Minelab X-Terra Pro is the selectable single-frequency machine with those controls.

Honest limits: there is no gold prospecting mode, so nugget hunting in mineralized goldfields is outside its lane. Wireless audio is Bluetooth LE Audio with the LC3 codec only; older Bluetooth headsets will not pair, and the wired headphones in the box are the sure thing. The battery is internal, so 10 hours is the day; there is no field swap. At 2.8 lb (1.26 kg) with the V12X, it carries a little more than the 460 with its V10X, and the 12 x 9 in coil that covers open ground so well is not the tool for a foot-square patch of nails; that is what the Pro-Pack's V8X is for, and the V8X fits this machine if you add one later.

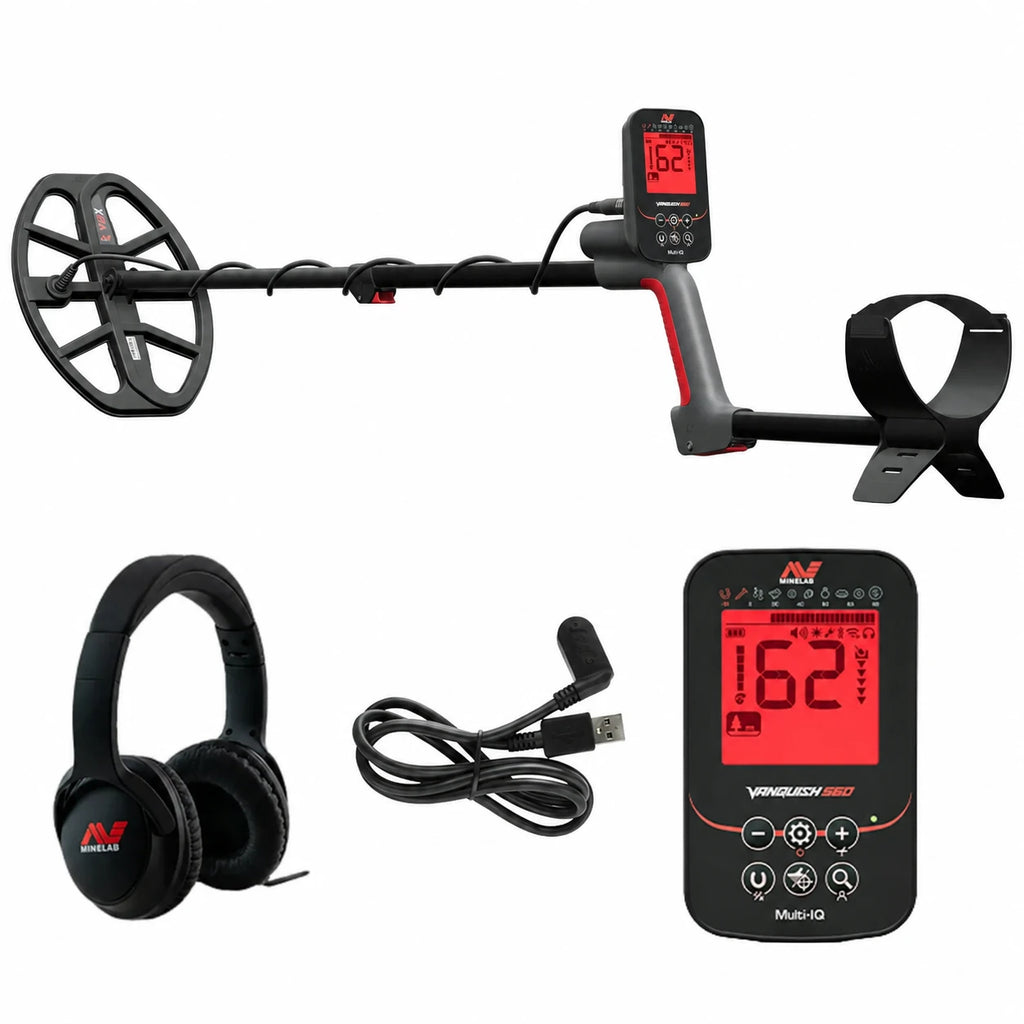

What Comes Standard in the Factory Box

• Minelab Vanquish 560 detector
• V12X 12 x 9 in (30 x 23 cm) Double-D search coil with skid plate
• Minelab wired 3.5 mm (1/8 in) headphones
• Removable armrest with strap
• USB-C magnetic charging and data cable
• Getting Started Guide
• 3-year Minelab warranty

Minelab's manual and software updates are on Minelab's Vanquish 560 page. The same platform ships as the Vanquish 560 Pro-Pack (V12X plus V8X coils and ML60 earbuds) and in two Pro-Pack factory bundles: the Pro-Pack with Minelab backpack and the Pro-Pack with PRO-FIND 35 pinpointer and Adventure Pack.

Minelab Military Discount

Minelab offers a 15% military discount on Minelab detectors, and the Vanquish 560 qualifies. Contact us directly at 256-284-2247 for details and to order with the discount. Not combinable with other promotions or discounts.

See it in the field

History Seekers hunts run on YouTube and Facebook, where over 1.1 million followers watch us dig relics, coins, and gold across the Southeast and beyond. We rotate machines depending on the site and the ground conditions, and every find you see was made with gear we sell and use ourselves.

One more thing worth knowing about who you are buying from. History Seekers is a small American business, not a big box retailer where nobody on staff has ever swung a detector, and not a warehouse that just moves boxes. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. Years of field experience before hire is not a coincidence, it is a requirement. The person who answers your questions may be the same one who packs your order and drives it to the UPS drop-off, and every purchase keeps everyday Americans working.

Frequently Asked Questions

Is the Minelab Vanquish 560 waterproof?

Yes, the whole detector. The Vanquish 560 is IP68 rated with the entire machine, control box included, submersible to 16 ft (5 m) per Minelab. That is the big 60 Series upgrade over the older Vanquish 440 and 540, whose control boxes were only water resistant and could not go under. The battery is internal and charges through a magnetic USB-C cable, so there is no battery door to flood.

Vanquish 560 vs 460: which one do I need?

Both are fully featured, fully submersible 60 Series Multi-IQ machines with four modes (Park, Field, Beach, User Profile), 30 discrimination segments, 10 sensitivity levels, wireless Bluetooth LE Audio, and a backlit display with flashlight and vibration. The 560 steps up in three ways: the larger V12X 12 x 9 in (30 x 23 cm) coil for coverage and depth, five target tones instead of three, and Iron Bias that reaches -1 for aggressive unmasking in iron-choked ground. The 460 keeps the compact V10X 10 x 7 in (25 x 18 cm) coil, three tones, and Iron Bias 0 to 2 at a lower price and lower weight. Choose the 560 for old sites, farm fields, and beaches where coverage and iron control matter; choose the 460 for a lighter, lower-cost machine with a coil that separates well in tight trash.

Vanquish 560 vs 560 Pro-Pack: what is the difference?

Same detector, different box. The Vanquish 560 ships with the V12X 12 x 9 in (30 x 23 cm) coil and Minelab wired 3.5 mm headphones. The 560 Pro-Pack adds a second coil, the V8X 8 x 5 in (20 x 13 cm) Double-D for trash-filled sites and small targets, and swaps the wired headphones for Minelab ML60 Bluetooth LE Audio earbuds. Choose the 560 if you will hunt on the V12X with the speaker or wired headphones; choose the Pro-Pack if you want a small coil for iron-heavy ground and wireless audio in the box from day one.

Which wireless headphones work with the Vanquish 560?

Only headphones that support Bluetooth LE Audio with the LC3 codec; Minelab states the 460 and 560 are compatible with LE Audio LC3 headphones only, so most older Bluetooth headsets will not pair. Minelab's ML60 earbuds, included with the Vanquish 560 Pro-Pack, are the guaranteed match. The 560 also has a built-in speaker and a 3.5 mm jack, and Minelab wired headphones come in the box.

Will my Equinox coils fit the Vanquish 560?

Yes. Per Minelab's Vanquish 460/560 manual, the Vanquish 60 Series accepts the Equinox EQX06, EQX11, and EQX15 coils as well as its own V8X, V10X, and V12X coils. If you already own an Equinox, your coils cross over, which makes the 560 an excellent waterproof backup, and the V-series coils interchange across the whole Vanquish family for a spouse or a kid learning the hobby. Minelab does not state the reverse, so do not count on a V-series coil fitting an Equinox.

Can the Vanquish 560 find gold?

Gold rings and jewelry, yes; Multi-IQ handles those anywhere, including wet beach sand, and the five tones and Iron Bias help pull a small gold ring out of pull-tab trash. The Vanquish 560 has Park, Field, Beach, and User Profile modes and no dedicated gold prospecting mode, so tiny natural nuggets in mineralized goldfields are outside its lane. If prospecting calls, the Minelab Equinox 900 adds a true Gold mode, and the Minelab Gold Monster 2000 is the purpose-built step.

Is History Seekers an authorized Minelab dealer?

History Seekers Metal Detectors is an authorized Minelab dealer; every Vanquish 560 we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Minelab also offers a 15% military discount on Minelab detectors; contact us directly at 256-284-2247 to order with it. Setup questions are answered by detectorists who run these machines on real permissions.

History Seekers Metal Detectors is an authorized Minelab dealer; every Vanquish 560 we sell is new, sourced through Minelab's authorized US distributor, and carries the full 3-year Minelab warranty. Your setup questions get answered by detectorists who run these machines on real permissions, and we will help you pick a second coil, set your Iron Bias for the ground you hunt, and get you digging keepers instead of nails. Because at History Seekers, the story is more important than the artifact.
