Description
The coil bolt is the one fastener on a modern Minelab that gets worked by hand every coil change, and plastic threads keep score. The one that cracks does it far from home. Minelab lists this two-pack for seven of its machines, which is the whole list of coil mounts most owners will ever touch.
At a glance

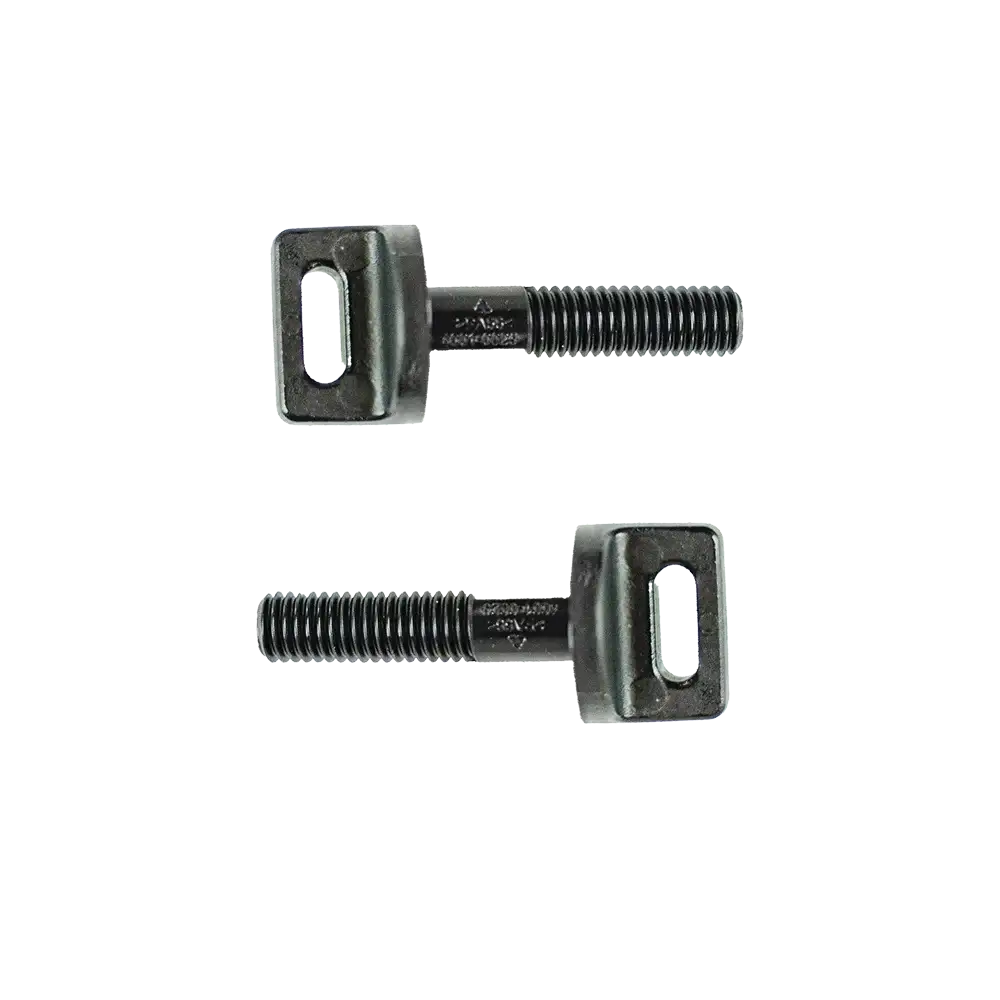

Genuine Minelab coil bolt set, 2 pack, part 3011-0487, UPC 811493019178. Minelab's own listing: Replacement coil bolt for your GPX 6000, GOLD MONSTER 1000, MANTICORE, EQUINOX, X-TERRA ELITE, X-TERRA PRO or VANQUISH metal detector (2 pack per Minelab's product image). Sold by History Seekers Metal Detectors, an authorized Minelab dealer; same-brand fitment, Minelab's own description, nothing invented.
Why this part
Minelab's own page names the fit: GPX 6000, GOLD MONSTER 1000, MANTICORE, EQUINOX, X-TERRA ELITE, X-TERRA PRO and VANQUISH. That is wider than most dealer pages print and it is the reason to keep a set in the pouch no matter which of those machines you run. Two bolts means one machine gets a fresh bolt and the kit gets a spare, or two lower shafts each get their own; a bolt that will not hold torque lets the coil flop, and the fix is a small part that should already be in the bag. Genuine matters on a part this small because the thread form and the tab head are what the yoke and the coil ears were cut for.
Which Minelab machine is this for?
| Machine or coil | Fits? | Note |
|---|---|---|
| Minelab GPX 6000 | Yes | |
| Minelab GOLD MONSTER 1000 | Yes | |
| Minelab MANTICORE | Yes | |
| Minelab EQUINOX (700, 900 and the 600/800) | Yes | |
| Minelab X-TERRA ELITE and X-TERRA PRO | Yes | |
| Minelab VANQUISH (460, 560) | Yes | All per Minelab's coil bolt page. |
Specs and what they mean in the field
| Spec | Value (Minelab) | What it does for you |
|---|---|---|
| Pack | 2 coil bolts (Minelab product image) | One on the machine, one in the pouch. |
| Fit | Seven Minelab platforms (Minelab) | GPX 6000, GOLD MONSTER 1000, MANTICORE, EQUINOX, X-TERRA ELITE, X-TERRA PRO, VANQUISH. |
| Head | Tool-free tab, as pictured | Hand-tight, no wrench. |
| Part | 3011-0487, UPC 811493019178 | Genuine Minelab. |
Fitting it and keeping it working
Hand-tight is the torque: snug the tab until the coil holds its angle, no further, because a cracked bolt is almost always an over-tightened one. Keep the washers with the bolt, and if a coil has started to droop at the end of a swing with the bolt tight, the bolt threads are worn and this is the part.
Frequently Asked Questions
Which machines do these bolts fit?
Minelab lists the coil bolt for the GPX 6000, GOLD MONSTER 1000, MANTICORE, EQUINOX, X-TERRA ELITE, X-TERRA PRO and VANQUISH detectors.
How many bolts come in the set?
Two, as shown in Minelab's product photo, so one machine gets a fresh bolt and the pouch gets a spare.
Why replace a coil bolt?
Threads wear and tab heads crack, usually far from home. A worn bolt that will not hold torque lets the coil flop; a spare in the pouch ends the hunt-ending version of that problem.
How tight should a coil bolt be?
Hand-tight: snug until the coil holds its angle through a swing, no more. Over-tightening is what cracks the tab.
Is this a genuine Minelab part?
Yes, Minelab part 3011-0487, sold by History Seekers, an authorized Minelab dealer.
Who you are buying from
History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. We run the Minelab machines these parts fit, and the person who answers your call has replaced this part on one. Every purchase keeps everyday Americans working.
History Seekers Metal Detectors is an authorized Minelab dealer; every part we sell is genuine Minelab. Call 256-284-2247 if you are not sure which part your machine takes; we will check the part number against your model before you order. Because at History Seekers, the story is more important than the artifact.
