Description

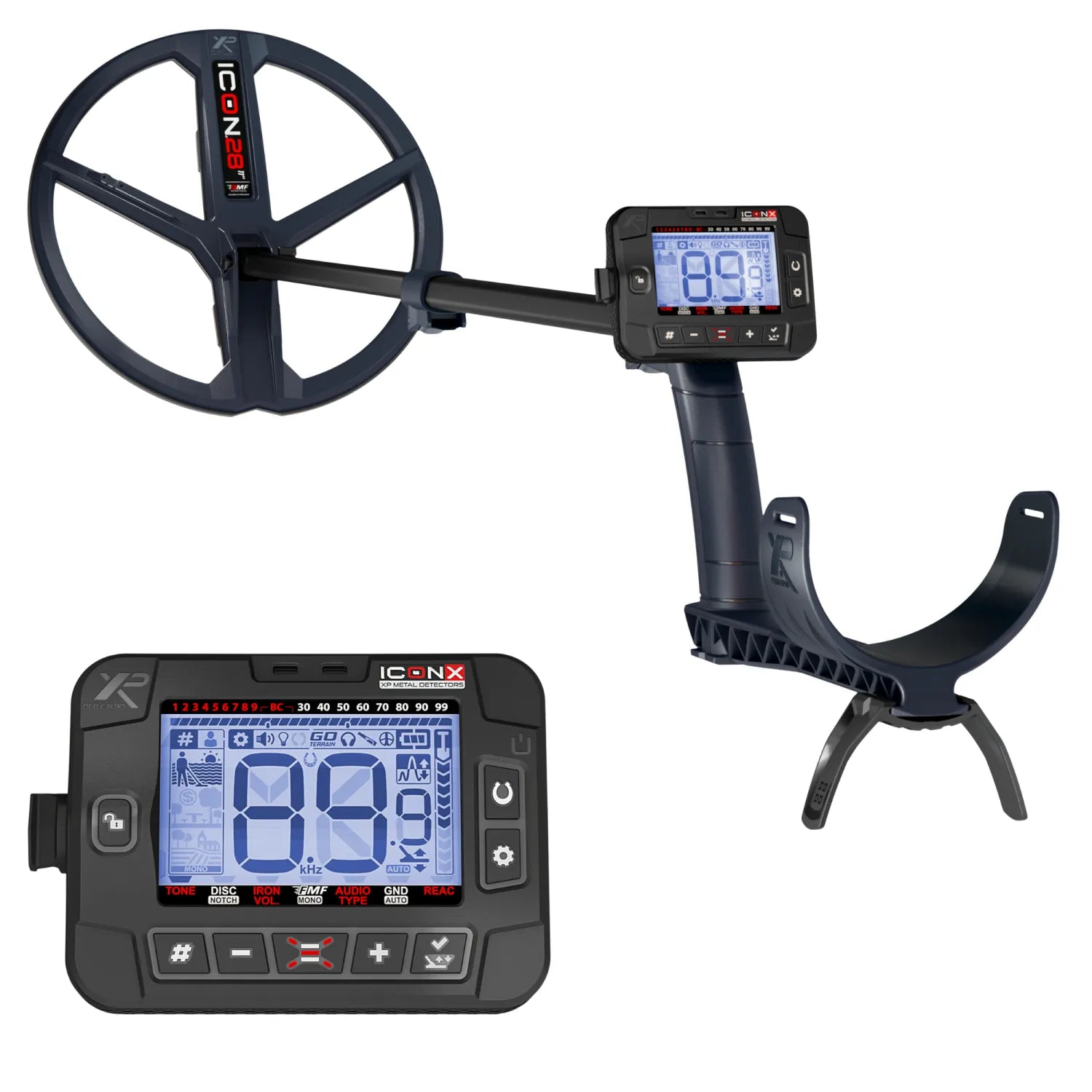

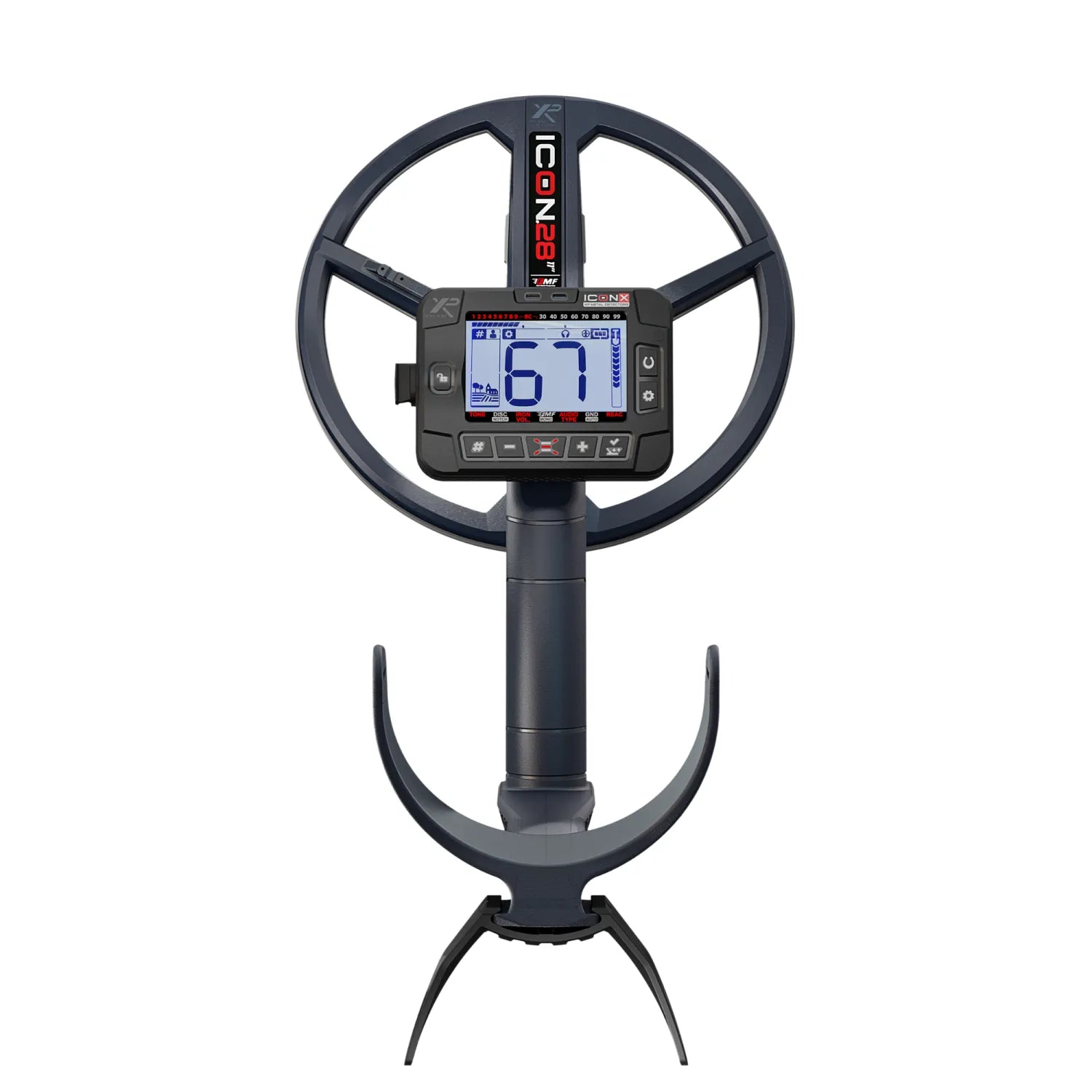

Most "no headphones" detector packages are a compromise. This one is a decision. The XP ICON X in its base configuration is the full ICON X: the same ICON X remote control, the same ICON 28 coil at 11 in (28 cm), the same S-Telescopic Lite Carbon stem, and the same simultaneous Fast Multi Frequency (FMF) engine as the headphone package. What it leaves out is the one part of a detector that is personal. If you already own XP wireless audio, prefer the built-in speaker, or want over-ear cups or bone conduction instead of the standard WSA ST, this is the configuration that lets you choose.
Why This Configuration
XP sells the ICON X two ways: with WSA ST wireless headphones, or as this remote-and-coil package. The detector is identical. Buy the headphone package when you want one box that is ready to swing; buy this one when the headphones in that box are not the headphones you would pick. Three buyers land here. A detectorist who already runs an XP WSA ST, WSA XL ST or WS6 ST with a DEUS II and wants a second machine that pairs with the audio already in the truck. A speaker hunter who keeps both ears on the field and never wears cups. And the water hunter who plans to run the BH-02 bone-conduction headset below the surface, where the wireless headphones cannot go anyway.
Within the ICON family, the question is ICON or ICON X. The ICON X adds a 28 kHz single frequency on top of the 4 and 14 kHz the ICON offers, carries all six factory programs with six user slots instead of three and three, runs seven reactivity levels (0 to 6) instead of five, resolves the ferrous zone of the target ID in 0.5-point steps instead of 1-point steps, offers six audio types including the enhanced response curve, and rides a carbon middle stem that trims the fully equipped weight to about 1.6 lb (710 g). Both share the FMF engine, the 25 sensitivity levels, the 28-segment notch, the ground modes and the 16 ft (5 m) rating. If you hunt one kind of site with a preset and never touch the menus, the ICON saves money. If you work trashy ground, fine jewelry or wet salt sand and want the extra reactivity, resolution and the 28 kHz option, the ICON X is the one to own.
Other dealers sell this package as a gold machine on the strength of that 28 kHz frequency, and as waterproof to 16 ft (5 m) with no fine print. We would rather you know what XP actually prints. The ICON X has no gold prospecting program; 28 kHz helps on small jewelry and thin low-conductive targets, and that is the honest claim. And 16 ft (5 m) is reachable only with the BH-02 bone-conduction headset and the underwater waveguide fitted; with the standard remote cap alone, the limit is 5 ft (1.5 m) for 30 minutes. Both facts are in the spec table below, because a buyer who knows them chooses the right accessories the first time.
ICON vs ICON X at a Glance
- Which one do I need? ICON for preset, turn-on-and-hunt detecting on parks, fields and beaches. ICON X for trashy sites, small jewelry, wet salt sand and anyone who tunes reactivity and audio by hand.
- Single frequencies: ICON 4 and 14 kHz; ICON X 4, 14 and 28 kHz. Both run simultaneous FMF multi-frequency.
- Programs: ICON 3 factory + 3 user; ICON X 6 factory + 6 user (Field, Trashy Field, Forest, Park, Wet Beach, Beach & Surf).
- Reactivity: ICON 5 levels (1 to 5); ICON X 7 levels (0 to 6).
- Ferrous target ID resolution: ICON 1 point; ICON X 0.5 point.
- Audio types: ICON 3; ICON X 6, including the enhanced response curve.
- Stem: ICON S-Telescopic Lite; ICON X S-Telescopic Lite Carbon (carbon middle section). ICON X about 1.6 lb (710 g) fully equipped without the remote on the stem.
- Same on both: ICON 28 coil at 11 in (28 cm), 25 sensitivity levels, 28-segment notch, Grab / Tracking / Standard / Pro ground modes, IP68 to 16 ft (5 m) with BH-02 and waveguide, about 11 hours per charge, Go Terrain app, MI-6 pairing.
- This package: ICON X remote, ICON 28 coil, carbon stem, charging cable. No headphones; the remote has a built-in speaker.
Technical Specs and Benefits
| Spec (XP manual and xpmetaldetectors.com) | What It Does in the Field |
|---|---|
| FMF simultaneous multi-frequency, programs spanning 4 to 40 kHz, automatic and manual frequency shift | Several frequencies at once means silver, copper and small gold jewelry all register on one pass, and the auto frequency scan at every start-up steps around interference from power lines and nearby detectors. |
| Single frequencies 4, 14 and 28 kHz (28 kHz is ICON X only) | Drop to 4 kHz for deep high-conductors, 14 kHz for general coins, 28 kHz for thin chains, small earrings and low-conductive relics that lower frequencies read past. |
| 6 factory programs + 6 user programs: Field, Trashy Field, Forest, Park, Wet Beach, Beach & Surf | Pick the site, hunt. Factory programs reset to stock at every power-on, so experiments cost nothing; your saved user program sits beside each one. |
| Reactivity 7 levels (0 to 6); sensitivity 25 levels | Low reactivity reaches deeper in clean ground; high reactivity separates a coin from the nail beside it in a trashy park. |
| Target ID conductivity scale -6.4 to 99; discrimination -6 to 99 with 0.5-point ferrous resolution | Half-point steps in the iron zone let you pass bent nails and still hear the small, deep relic that reads just above them. |
| Multi-Notch, 28 segments, with a dedicated ferrous bottle-cap filter; automatic Silencer; All-metal on its own key | Ferrous bottle caps print two segments (around 10 and 60 to 70); the filter rejects them so you stop digging them. One key opens everything up when you want to hear it all. |
| Tones: Pitch, 2, 3, 5 and Full Tones; PWM and SQUARE audio with Stereo Audio Morphing; 6 audio types including the enhanced response curve | Audio Morphing overlays a second sound only on shallow targets, so depth is audible as texture, not just volume. The enhanced curve lifts faint deep signals. |
| Ground balance: Grab, Tracking, Standard and Pro | Pro mode on the beach programs opens the normally masked ground zone, so black sand, ferrite and deep masked targets become audible instead of silent. |
| Non-motion pinpoint with audio and visual locating | Hold the coil still, center the target, cut a smaller plug. |
| IP68: 16 ft (5 m) with the BH-02 bone-conduction headset and waveguide; standard remote cap alone 5 ft (1.5 m) for 30 minutes; keypad lock for diving | Wading, surf and shallow freshwater with the stock cap. Real submerged hunting needs the BH-02 (its connector replaces the cap) and the waveguide that carries the coil signal under water. |
| XP wireless protocol, about 4 ms latency, 36 automatic channels | No cable from coil to remote to headphones, and no lag between the coil passing a target and the tone in your ear. |
| Sunlight-readable LCD with adjustable low-power backlight (0 to 20) | Readable at noon on a beach, dim enough at dusk not to kill the battery. |
| LiPo batteries: remote 365 mAh, coil 700 mAh; about 11 hours per charge, about 3 hours to charge; one three-output cable charges remote, coil and headphones together from any certified 5 V / 1 A USB supply | A full day on one charge. One cable, one wall brick, everything topped up overnight. |
| Weight about 1.6 lb (710 g) fully equipped without the remote on the stem; about 1.8 lb (830 g) with the remote mounted; remote about 3.9 oz (110 g); coil about 13 oz (370 g) with cover | Light enough to swing all day one-handed, and the remote can ride on your belt or chest to take it lighter still. |
| S-Telescopic Lite Carbon stem: 22.8 in (58 cm) folded, 51.2 in (130 cm) extended | Folds into a daypack; extends to a full-height swing for a tall hunter. |
| MI-6 pinpointer pairing and Go Terrain smartphone app; lost-gear finder rings a paired MI-6 or headphones within 82 ft (25 m) | The MI-6 audio comes through the remote with the coil muted, and a pinpointer dropped in the leaves can be made to ring and flash from the remote, even weeks later. |
| Coil memory: the remote stores several paired coils; a new coil pairs automatically when put on charge | Swap between the ICON 28 and a DEUS II FMF coil with one click once each has been paired. |
| Software updates over USB-C through XP's online updater; operating temperature 32 to 104 °F (0 to 40 °C) | The detector you buy today receives the features XP adds later. |
| Made in France; 5-year XP warranty | Register the detector with XP after purchase to activate the full five-year term. |
Who It's For
Coin, jewelry and relic hunters on parks, plowed fields, old homesites and beaches who want a light, fully wireless multi-frequency detector with real adjustability and who will pair their own XP audio. It suits a beginner who wants to grow into the menus and an experienced DEUS II owner who wants a lighter second machine on the same audio ecosystem.
Honest limits: there is no gold prospecting program, so nugget hunters should look at the XP DEUS II Gold with the HF2 coil instead. The wireless headphones XP makes for the ICON X (WSA ST, WSA XL ST) are not dive headphones; underwater audio is the wired BH-02 bone-conduction headset only, and that headset plus the waveguide is what unlocks the 16 ft (5 m) rating. Only SQUARE audio runs with the BH-02. The coil battery has no user-replacement procedure in the manual; remote and headphone batteries do. And this package has no headphones in the box, by design.
What Comes in the Box

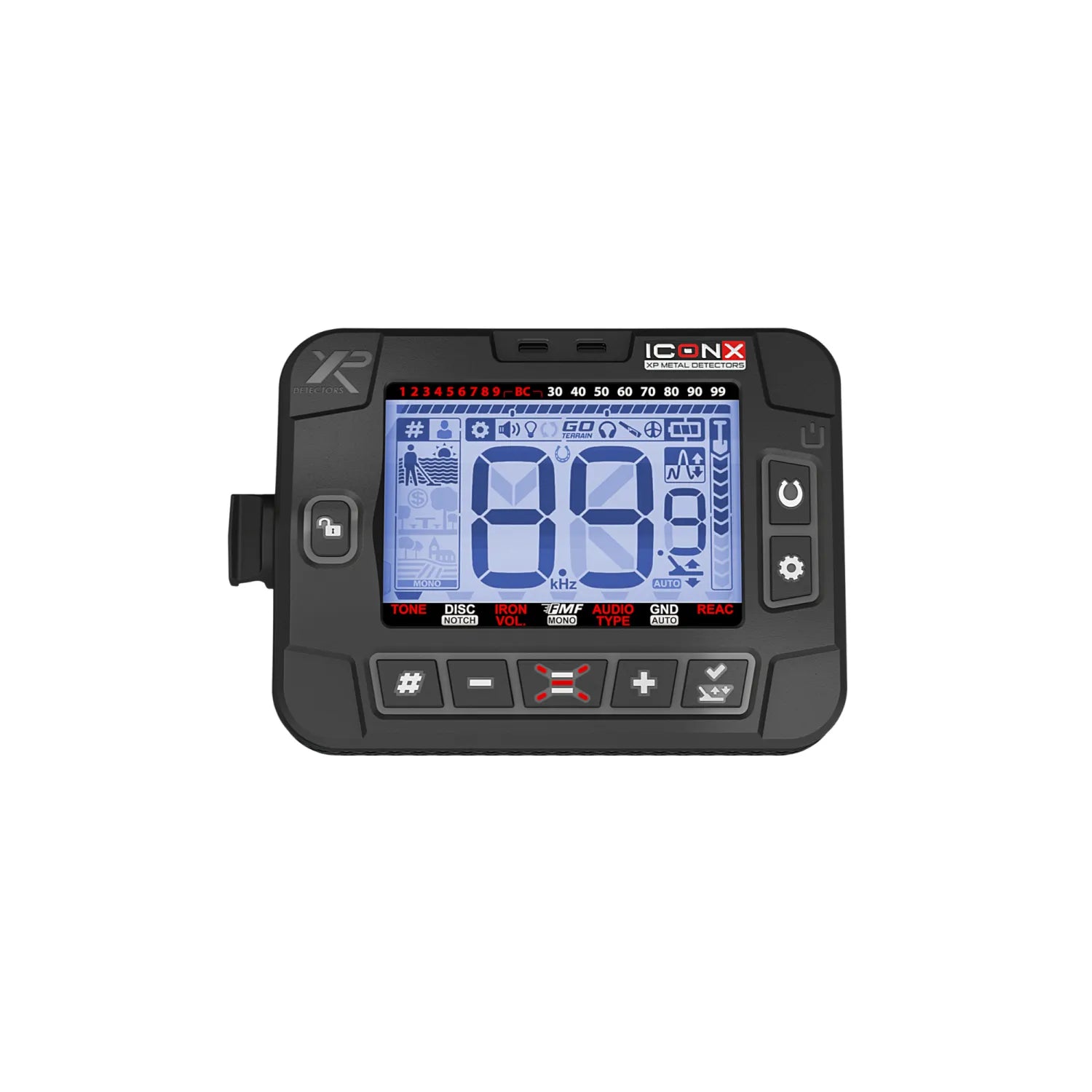

- XP ICON X remote control (ICONX-RC)

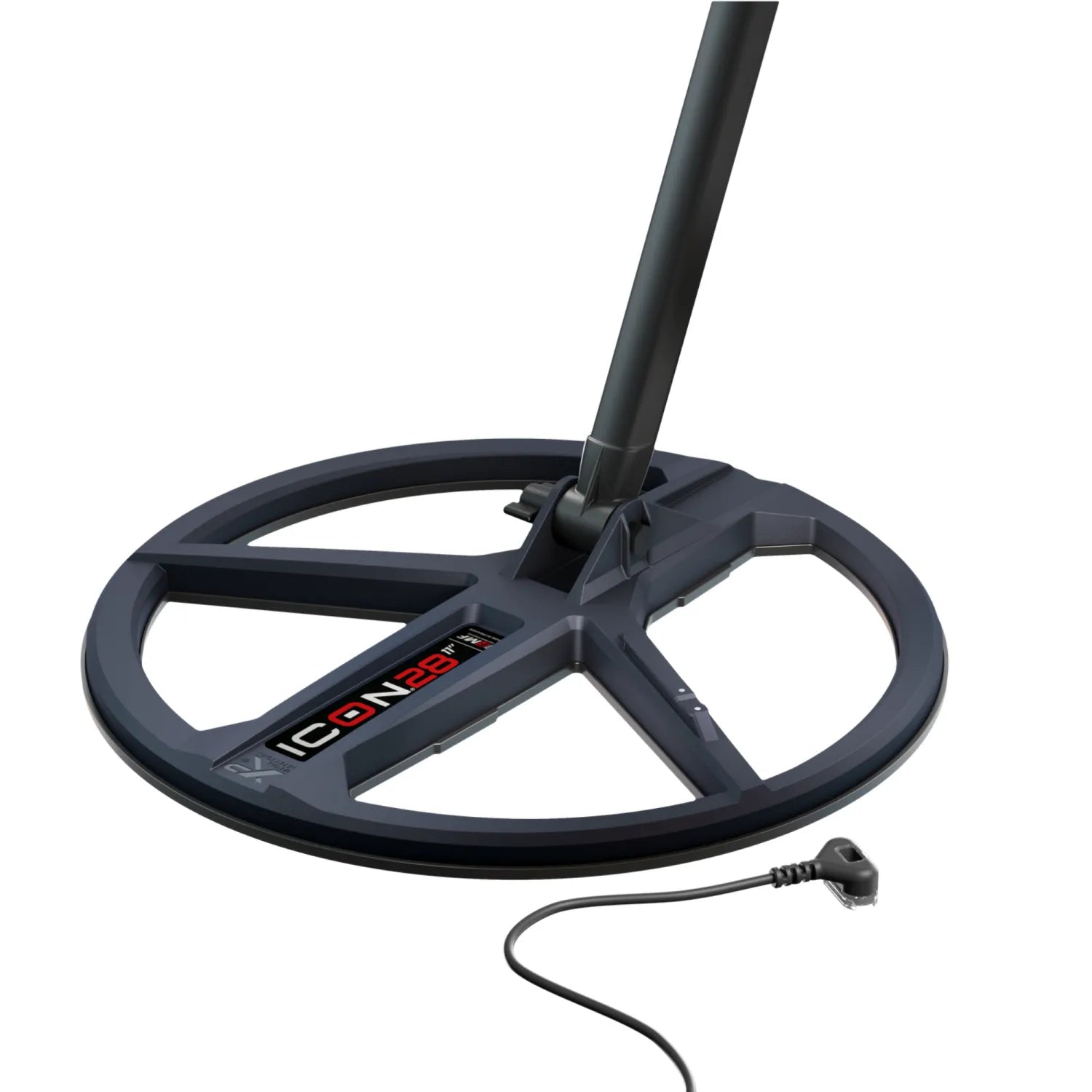

- XP ICON 28 FMF search coil, 11 in (28 cm), with coil cover and lower stem (D28FMFIC)

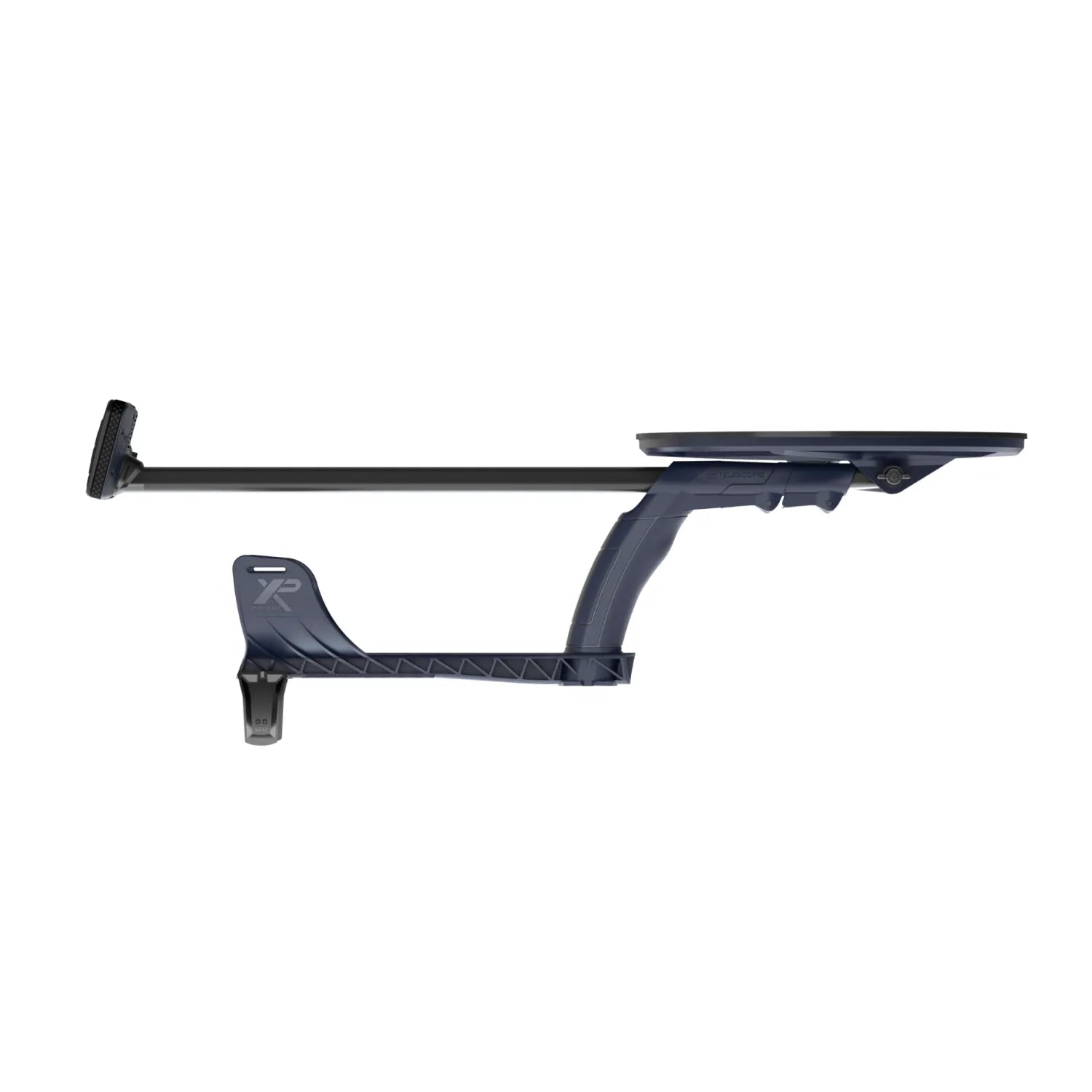

- Blue S-Telescopic Lite stem with carbon middle section (D044LITE-BC)
- Three-output USB charging cable
- XP documentation
Headphones are not included. The remote has a built-in speaker, and the ICON X pairs with XP's current ST wireless headphones (WSA ST, WSA XL ST, WS6 ST) and the BH-02 dive headset (see the FAQ).
Compare the Four ICON Packages
| Feature | XP ICON (no headphones) | XP ICON + WSA ST | XP ICON X (no headphones) | XP ICON X + WSA ST |
|---|---|---|---|---|
| Wireless headphones included | No (speaker) | Yes (WSA ST) | No (speaker) | Yes (WSA ST) |
| Frequencies | FMF + 4, 14 kHz | FMF + 4, 14 kHz | FMF + 4, 14, 28 kHz | FMF + 4, 14, 28 kHz |
| Programs | 3 factory + 3 user | 3 factory + 3 user | 6 factory + 6 user | 6 factory + 6 user |
| Reactivity | 5 levels (1 to 5) | 5 levels (1 to 5) | 7 levels (0 to 6) | 7 levels (0 to 6) |
| Ferrous ID resolution | 1 point | 1 point | 0.5 point | 0.5 point |
| Middle stem | Standard | Standard | Carbon | Carbon |
| Best fit | Preset hunting, own audio | One-box start | Full control, own audio | Full control, one box |
Want over-ear cups instead of the WSA ST? The ICON X with WSA XL ST bundle and the ICON X Adventure Pack (WSA XL ST, MI-6 pinpointer, Backpack 240) are bundled by History Seekers from factory-new XP products. Every coil, headset and accessory that fits is listed on our What Fits the XP ICON and ICON X page.
Frequently Asked Questions
ICON vs ICON X: which one do I need?
Choose the ICON X if you hunt trashy sites, small jewelry or wet salt sand, or if you adjust reactivity and audio yourself: it adds the 28 kHz single frequency, six factory and six user programs instead of three and three, seven reactivity levels (0 to 6) instead of five, 0.5-point ferrous target ID resolution instead of 1 point, six audio types including the enhanced curve, and a carbon middle stem. Choose the ICON if you want to pick a preset and hunt parks, fields and beaches at a lower price. Both run FMF multi-frequency, the same 11 in (28 cm) ICON 28 coil, 25 sensitivity levels and the same 16 ft (5 m) rating.
What is in the box, and what is not?
The ICON X remote control, the ICON 28 FMF coil at 11 in (28 cm) with its cover and lower stem, the blue S-Telescopic Lite stem with carbon middle section, the three-output charging cable and XP's documentation. Headphones are not included. The remote has a built-in speaker, so the detector works out of the box without them.
Which XP headphones pair with the ICON X?
XP's current ST wireless stereo headphones pair directly with the ICON X remote: the WSA ST, the over-ear WSA XL ST and the WS6 ST. For submerged hunting, the wired XP BH-02 bone-conduction headset is the only option; call us about it. The ICON X also pairs with the XP MI-6 pinpointer, routing the pinpointer audio through the remote with the coil muted. XP WS4, WS5 and other original DEUS and ORX headphones are a different generation and do not pair.
Is the XP ICON X waterproof?
Yes, IP68. With the standard cap on the remote, XP rates it to 5 ft (1.5 m) for 30 minutes, which covers wading and surf. To use the full 16 ft (5 m) rating you need the BH-02 bone-conduction headset, whose waterproof connector replaces the cap, plus the underwater waveguide that keeps the coil and remote talking below the surface. The keypad locks with a 12-second hold so buttons do not trigger under water.
Can the XP ICON X find gold?
Gold jewelry, yes: FMF reaches 40 kHz and the ICON X adds a 28 kHz single frequency, so thin chains and small rings are within reach. Nuggets are another matter. The six factory programs (Field, Trashy Field, Forest, Park, Wet Beach, Beach & Surf) include no gold prospecting program. For nugget hunting XP's machine is the DEUS II Gold with the HF2 coil and its GOLD FIELD program.
Do XP DEUS II coils fit the ICON X?
The DEUS II FMF coils do: the 9 in (22.5 cm) FMF, the 11 in (28 cm) FMF, the 13x11 in (34x28 cm) FMF and the HF2 elliptical. The remote stores several paired coils and switches between them with one click. XP X35 and HF coils are original DEUS and ORX coils and never fit the ICON, ICON X or DEUS II.
How long does the battery last, and can the ICON X be updated?
About 11 hours for the remote and the coil per charge, and about 3 hours to recharge; the included three-output cable charges remote, coil and headphones at the same time from any certified 5 V / 1 A USB supply. Software updates load over USB-C through XP's online updater at updater.xpmetaldetectors.com, the same place you register the detector for the warranty. XP has not published a version log for the ICON (checked October 2026).
Is History Seekers an authorized XP dealer?
Yes. History Seekers Metal Detectors is an authorized XP dealer; every ICON X we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty. We price match: contact us with the competitor's current listing so we can verify it.
Who you are buying from
History Seekers is a small American business and a working detecting channel: over 1.1 million people follow our hunts on Facebook and YouTube. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. We hunt with the gear we sell, and the person who answers your call has real dirt time. Every purchase keeps everyday Americans working.
History Seekers Metal Detectors is an authorized XP dealer. Every ICON X we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty, and your setup questions get answered by detectorists who run XP machines on real permissions. We will help you pick the right headphones, pair your first coil and get you digging keepers instead of nails. Because at History Seekers, the story is more important than the artifact.
See everything that fits your machine:What Fits the XP ICON and ICON X
