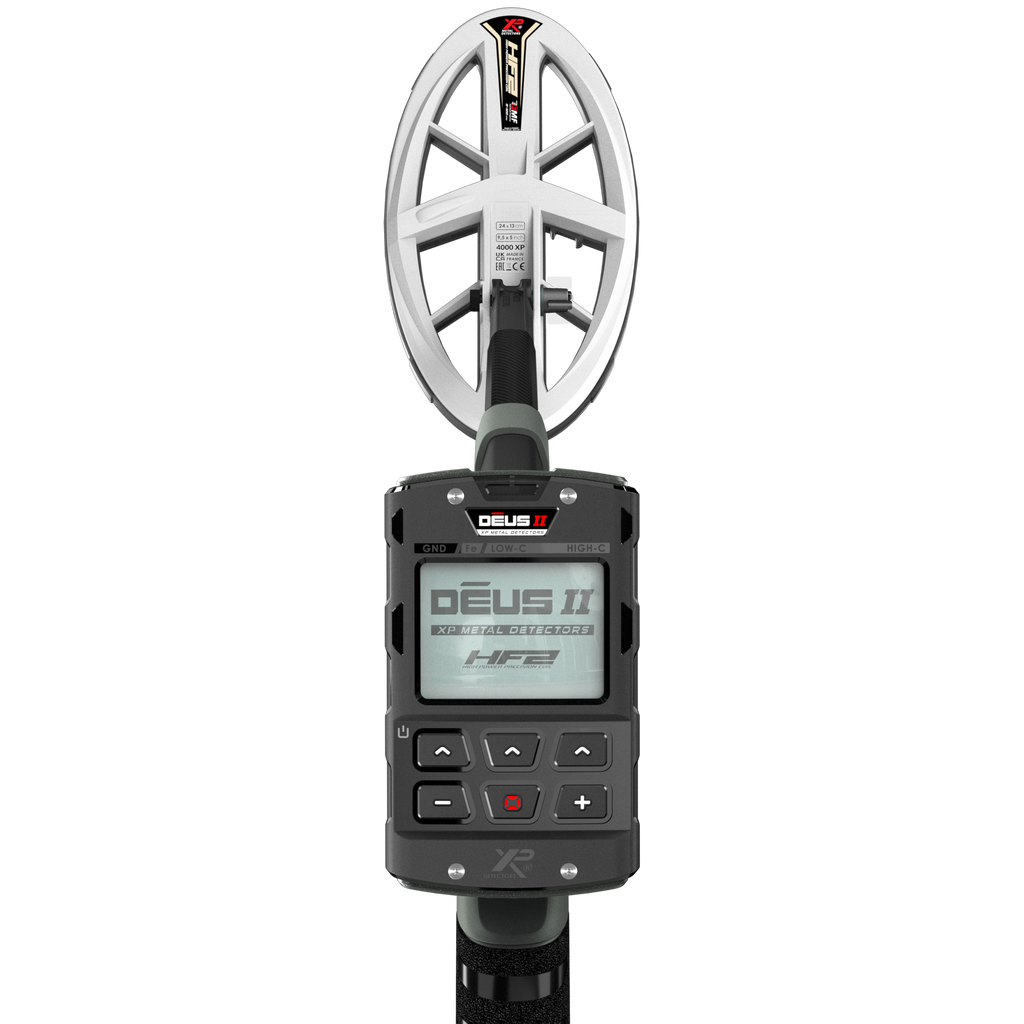

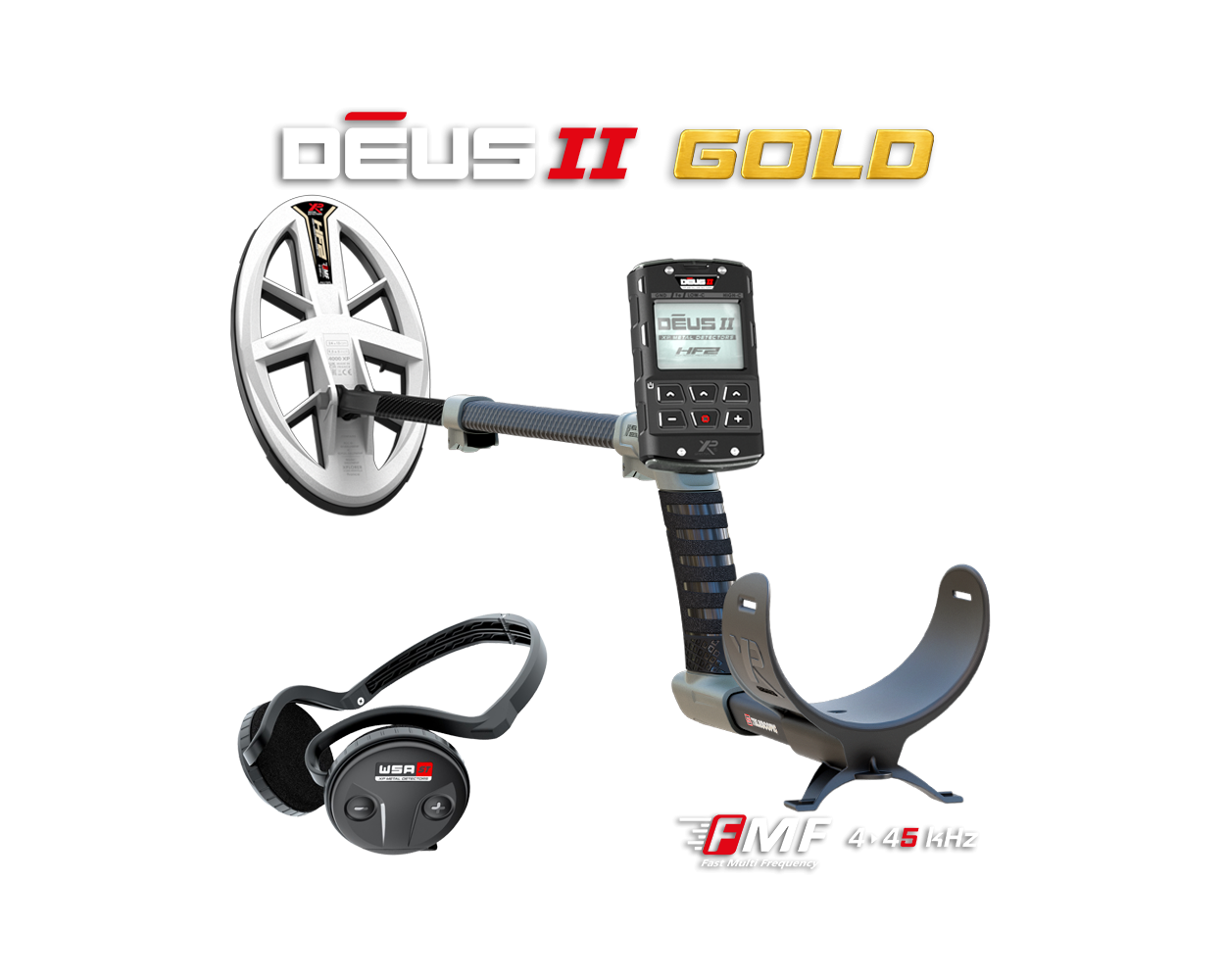

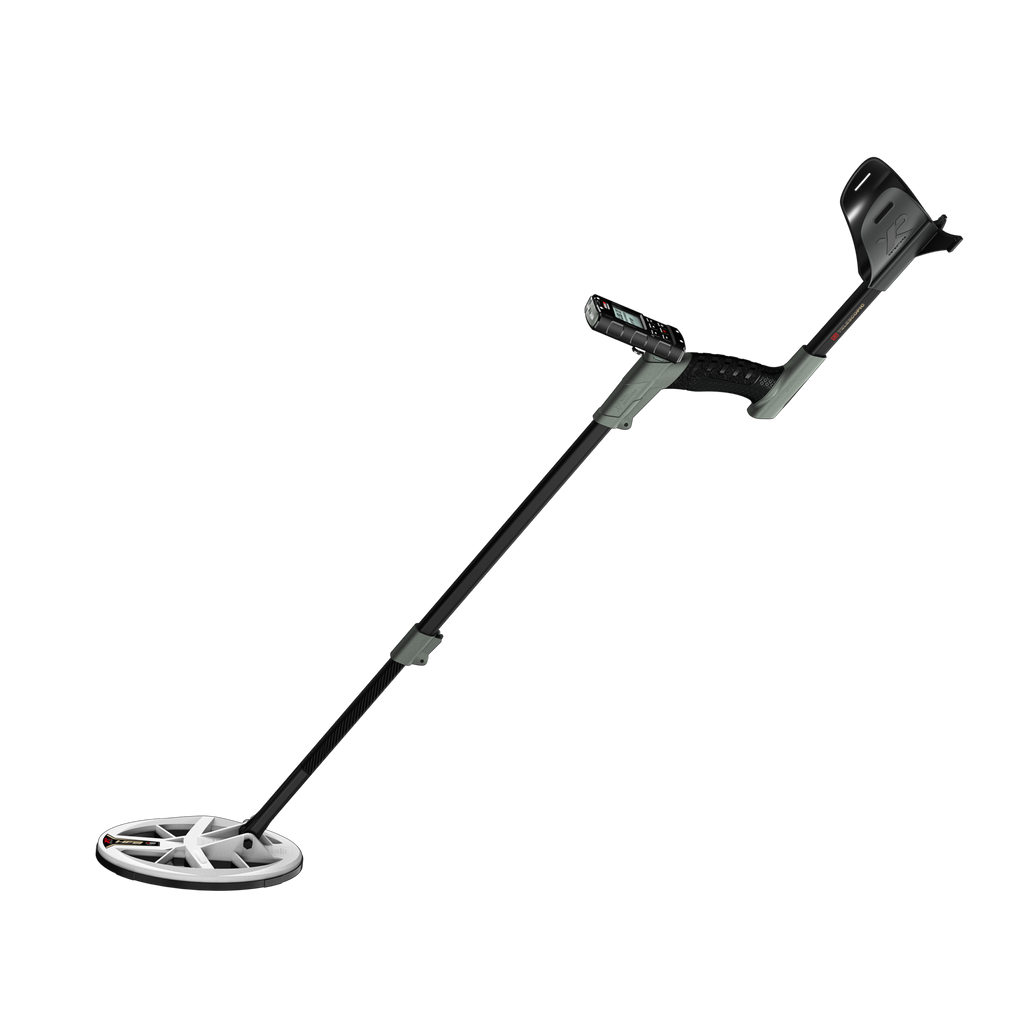

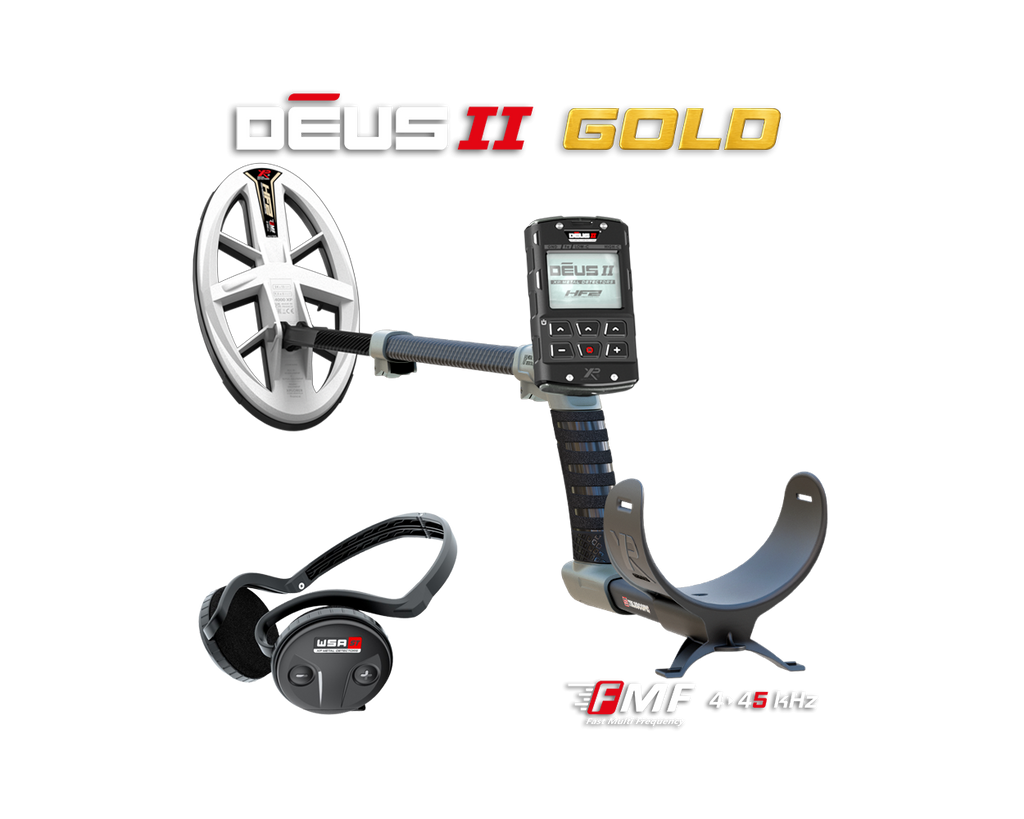

XP DEUS II Gold Metal Detector with 9.5 x 5 in HF2 Elliptical Search Coil, Remote Control and WSA-ST Wireless Headphones

Most detectors quit exactly where the good targets start. The DEUS II (also written Deus 2) Gold is built for the ground everyone else walks past: the mineralized gullies where the gold runs small, and the colonial homesites and cellar holes where two centuries of nails have been hiding the coins since before anyone swung a detector over them. It is a true gold prospecting metal detector and a relic hunting specialist in one package, and it is the only DEUS II package XP builds around the HF2 high frequency search coil.

Why the DEUS II Gold

This is XP's high-frequency configuration of the DEUS II. The included HF2 elliptical search coil runs 21 simultaneous frequencies from 9 to 90 kHz and reaches 120 kHz in single frequency, well above the 4 to 45 kHz range of the standard FMF search coils. In practice that means honest, repeatable signals on small gold nuggets, fine hammered coins, and thin jewelry that a general-purpose coil reads as ground noise. High frequency is also the edge-coin frequency: a coin standing on edge presents a thin profile that lower frequencies pass over, and the HF2 reads it. The narrow elliptical profile (9.5 x 5 in / 24 x 13 cm, 350 g / 12.3 oz) threads between nails to un-mask targets iron has been protecting for generations, and works rocky, uneven ground a round coil cannot sit flat on. Everything is wireless: coil, remote, and the WSA ST stereo headphones talk over XP's radio protocol with no perceptible delay.

History Seekers Metal Detectors is an authorized XP dealer; every DEUS II Gold we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty. We price match: contact us with the competitor's current listing so we can verify it.

Stereo Changes the Hunt: Check the Headphone Model Before You Compare

XP has discontinued its older non-stereo WSA II and WS6 headphones, but DEUS II packages built around them are still in circulation, and some listings label the headphones wrong. Check the model: this package includes the WSA ST, XP's current stereo generation. Only ST headsets run XP's V4 Stereo Multi-Processing: two fully independent detection channels at once. Run two different Reactivity settings simultaneously, one in each ear, fast separation for the nail beds in one channel and deep-and-slow in the other. In XP's own words, it eliminates the compromise between depth and target separation. On an iron-choked cellar hole, that is like working the site twice in a single pass. The older headphones will never run these features. At this level of the hobby, buy the current machine once instead of the discontinued one twice.

See the Stereo Advantage: Official XP Videos

DUAL AXIS preset: sizing, shape, and unexpected depth. A factory preset of XP's V4 Multi-Process firmware. One ear runs your discrimination program while the other runs a non-motion all-metal channel with a wider detection footprint. On old homesites that second channel tells you whether the signal under the nails is a big iron plate or a coin-sized keeper before you dig, and it hears deep targets standard motion programs miss.

Multi-Processing and Audio Morphing (Firmware V4). Multi-Reactivity runs a fast, trash-separating profile in one ear and a deep, slow profile in the other. Audio Morphing shifts the tone character as the search coil closes in on a target, so you read depth and proximity by ear without looking at the screen. XP's current DEUS II firmware is V4.1; updates are free through XP's online updater, and the headphones must run the same version as the remote.

Gold or FMF: Which DEUS II Package Do You Need?

The Gold is a specialist. The HF2 search coil gives up two things to earn its small-target response: coverage, because a 9.5 x 5 in (24 x 13 cm) footprint sweeps less ground than an 11 in (28 cm) or 13x11 in (34x28 cm) coil, and the lowest frequencies, because the HF2 band starts at 9 kHz while the FMF coils run down to 4 kHz for large, deep, high-conductivity targets. If most of your hunting is open parks, farm fields and sparse beaches, a DEUS II with an FMF search coil is the better buy. All four packages below share the same remote, the same 12 factory programs and the same WSA ST stereo headphones; only the coil changes.

Prefer the WS6 ST headset, whose control module can take over as the master if the remote is ever out of action? See the DEUS II 9 in (22.5 cm) WS6 ST package. Already own a DEUS II? The HF2 search coil is sold on its own. Weighing the DEUS II against another flagship? Read our owner-reviewed DEUS II comparison guide.

Technical Specs and Benefits

Compatibility

• Search coils: HF2 elliptical (included), XP FMF 9 in / 22.5 cm, 11 in / 28 cm, 13x11 in / 34x28 cm. All pair wirelessly, no cables.
• Deus I parts do not fit: X35 and HF coils, WS4 and WS5 headphones, ORX and original Deus accessories are a different platform. XP ICON coils are ICON-only.
• Audio: WSA ST (included), WSA XL ST, WS6 ST; for diving, the BH-01 bone conduction headset (IP68 to 20 m).
• Also XP ICON compatible: the HF2 search coil and the WSA ST headphones pair with the XP ICON and ICON X remotes as well (ICON manual); the ICON's own ICON28 coil is ICON-only.
• Accessories: the XP MI-6 pinpointer pairs directly to the remote.
• Firmware: free DEUS II updates from XP; keep headphone firmware matched to the remote version. The V4 stereo features require an ST headset like the one in this package.

Settings That Matter on the DEUS II

The DEUS II has twelve factory programs and more adjustment than most detectors at any price, and the fastest way to get lost is to change five things at once. Pick the factory program for the site, learn how it sounds, then move one setting at a time. These are the controls that change results, with the ranges and factory values printed in XP's own manual:

• Program first. GENERAL (Prg 1) subtracts wet-soil signals so coke and damp ground go quiet; SENSITIVE (2) and SENSI FT (3) reach 40 kHz for the smallest targets in iron and mineralization; FAST (4) is SENSITIVE with Pitch audio and Reactivity 3 for ferrous-choked ground; PARK (5) notches 23 to 35 for foil and sets B.Caps to 2 for rusty caps; DEEP HC (6) adds the low frequencies to 14 kHz for coin clusters and deep high conductors; DEUS MONO (7) is one frequency, anywhere from 4 to 45 kHz, for sites where interference beats multi-frequency; GOLD FIELD (8) and RELIC (9) run all-metal with ground grabbing; DIVING (10), BEACH (11) and BEACH SENS (12) subtract conductive salt. XP's manual: test a program in the soil, not in the air.
• Sensitivity (0 to 99; factory 90 to 95 per program; XP says most hunters run 70 to 90): run as high as the ground and the interference allow, and lower it near power lines, fences and in trash before you touch anything else.
• Reactivity (0 to 5; factory GENERAL 2, SENSITIVE and PARK 2.5, FAST and SENSI FT 3, GOLD FIELD 2, RELIC 1, DIVING 1, BEACH and BEACH SENS 0): XP's recovery speed. Low (0 to 1) for large deep masses and widely spaced beach targets; 2 to 2.5 for general ground; 3 to 5 for iron-contaminated or mineralized sites. The manual's own relic trick is Reactivity 0 with the coil swept 15 to 20 cm (6 to 8 in) above the ground.
• Discrimination (-6.4 to 99; factory 6.1 to 10): XP recommends leaving it low (around 8) and judging by the target ID, the tones and B.Caps rather than rejecting high. Below 0 opens the ground zone for the deepest ferrous-adjacent signals.
• B.Caps (0 to 5; PARK 2, others 0): rejects rusty bottle caps that read as good targets; the manual recommends it on beaches and parks whenever caps are a nuisance.
• Silencer (-3 to 7; factory 1 to 3) and Iron Volume (0 to 10; factory 7): the first filters the residual spikes of large or odd-shaped iron at the cost of masking good targets beside it; the second sets how loud iron is allowed to be.
• Audio Response (0 to 7; factory 4, GOLD FIELD 7): amplifies the sound of deep targets. XP's manual says it plainly: it gives the impression of more power but adds no depth; lower values give a truer sense of depth.
• Ground (grab or manual 60 to 90, tracking on or off) and Ground Stabilizer (1 to 3; factory 2, PARK 3): grab the ground where you hunt, re-grab when it changes, and use Stabilizer 3 when the soil keeps talking. Level 1 opens the expert zone above your ground value for the deepest masked signals; in DEUS MONO it is fixed at level 1.
• Salt Sens (1 to 9; DIVING and BEACH 9, BEACH SENS 7), Frequency Max (14 to 40 kHz by program on the FMF coils, 29 to 89 kHz with the HF2) and Threshold (0 to 20): the beach and gold controls. Lower Salt Sens before you lower sensitivity on wet sand; lower Frequency Max to 14 kHz in RELIC for big deep targets; use the threshold in GOLD FIELD and RELIC to hear the faintest change.
• Frequency scan first. Before blaming the ground for chatter, run the scan to move the detector off the interfering frequency, then set sensitivity.

What Fast Multi Frequency and Multi-Process do not do. FMF does not make ground balance optional: GOLD FIELD and RELIC want regular grabbing, and the beach programs want Salt Sens set to the sand. Multi-Process is audio processing in the ST headphones, two reactivities heard at once in one swing; it is not a second detector in the ground and it does not change what the coil sees. Audio Response, in XP's own words, provides no additional depth. Whether a signal repeats from two directions still decides the dig.

Who the DEUS II Gold HF2 Is For, and Who Should Buy Something Else

Best for: small gold in mineralized ground and small or masked targets on hammered homesites, with the HF2 coil running GOLD FIELD to 89 kHz; relics and coins elsewhere. Experience level: intermediate to advanced, and usable by a motivated beginner in the twelve factory programs; XP's ICON X and ICON are the simpler, lower-cost step down inside the brand. Step up inside XP: the Xtrem Hunter XTR-115E, which runs from this remote, for deep large targets.

Two kinds of serious detectorists. First, gold prospectors who need maximum response on small nuggets in mineralized ground. Second, relic and coin hunters working heavily iron-laden sites: colonial homesites, cellar holes, and any pounded spot where the remaining targets are masked by iron or standing on edge. If you mostly hunt open parks and fields, the standard DEUS II FMF package is the better fit; the Gold earns its keep where targets are small, masked, or on edge and the ground is hard. It is an advanced machine: the depth of the menu rewards the hunter who will learn it.

Where the DEUS II Works Well, and Where It Does Not

Trashy parks and hammered ground: PARK, SENSITIVE and FAST were tuned for it: the 23 to 35 notch takes out foil, B.Caps takes out rusty caps, and Reactivity 2.5 to 3 separates a coin from the pull tab beside it. The 9 in (22.5 cm) coil threads the nail beds; technique still does the finding, and no detector turns a worked-out park back into a fresh one.

Plowed fields and old homesites: GENERAL's wet-soil subtraction is why coke and damp dirt go quiet on this platform, SENSI FT's full tones read iron-choked cellar holes, and DEEP HC pulls coin clusters and deep high conductors out of clean ground. The wireless coil, remote and headset add up to the lightest machine you can walk a forty-acre permission with.

Beaches, surf and diving: three salt programs: DIVING for the stablest wet-sand and underwater work, BEACH to 24 kHz for small targets in wet zones, BEACH SENS to 40 kHz, the deepest wet-sand program and the most reactive. Coil and remote are IP68 waterproof to 20 m (66 ft); the remote reaches that depth only with its red 20 m cap fitted (the gray cap is good to 1 m), the coil needs the aerial antenna when it is submerged, and the ST headphones are rainproof, not dive gear, so under water you run the BH-01 bone conduction set.

Relic ground and deep masses: RELIC is GOLD FIELD processing at lower frequencies with conductive-soil subtraction, built for large deep targets. The manual's method is to sweep 15 to 20 cm (6 to 8 in) above the ground, drop Reactivity to 0 and, if you want, Frequency Max to 14 kHz, and dig the long sounds.

Gold country: GOLD FIELD runs all-metal with ground grabbing and IAR discrimination for surface iron, reaching 40 kHz on the FMF coils; the HF2 package pushes the same program to 89 kHz for smaller gold. In the worst mineralization a pulse induction machine reaches deeper on large gold; XP's own answer for deep large targets is the Xtrem Hunter, which runs from this remote.

Interference-heavy sites: DEUS MONO gives you any one of 49 single frequencies from 4 to 45 kHz when the simultaneous programs cannot hold still near power lines or another detector; run the frequency scan first.

Where it is the wrong buy: for someone who wants a switch-on-and-go machine (XP's ICON X and ICON are the simpler, lower-cost step inside the brand), for a diver expecting to wear the ST headphones under water, or for a nugget-only prospector in extreme ground who should be looking at pulse induction.

Coils and Accessories That Fit the DEUS II

The DEUS II runs XP's wireless FMF coils, and which coil when is the first decision: the 9 in (22.5 cm) FMF coil for iron-heavy homesites, trashy parks, woods and cellar holes; the 11 in (28 cm) FMF coil, the all-round size for fields, parks and beaches; the 13x11 in (34x28 cm) FMF coil for open farm fields, wide beach flats and depth on larger targets; and the HF2 9.5 x 5 in (24x13 cm) elliptical high-frequency coil (in this package), 9 to 120 kHz, for small gold and small masked targets. Coil covers ship with every coil. The original DEUS X35 and HF coils do not fit the DEUS II.

Headphones (every DEUS II needs one XP headset; the remote has no speaker): WS6 ST (82 g, graphic screen, can run the detector as a backup controller), WSA ST (in this package) (72 g, the lightest), WSA XL ST (over-ear, 250 g, rated to 1 m) and the BH-01 bone conduction headphones, the only set rated for diving to 20 m. All three ST sets run Multi-Process; the discontinued non-ST WS6, WSA II and WSA II XL do not.

Other genuine XP accessories that fit (every one listed, with its part number, on our DEUS II fitment page): the MI-6 pinpointer, which pairs wirelessly with the remote and sounds through your headset, and the MI-4 pinpointer; the XP Backpack 240, Backpack 280 and Backpack 280 with finds pouch, plus the XP finds pouch; for the water, the aerial antennas the coil needs when submerged, the red 20 m plug and gray 1 m cap for the remote, and our Dive, Snorkel and Long Reach kits that pair the antenna with the BH-01; and the Xtrem Hunter XTR-115E deep-seeking upgrade, which runs from the DEUS II remote. The fitment page also lists the sand scoops and digging tools we pair with it.

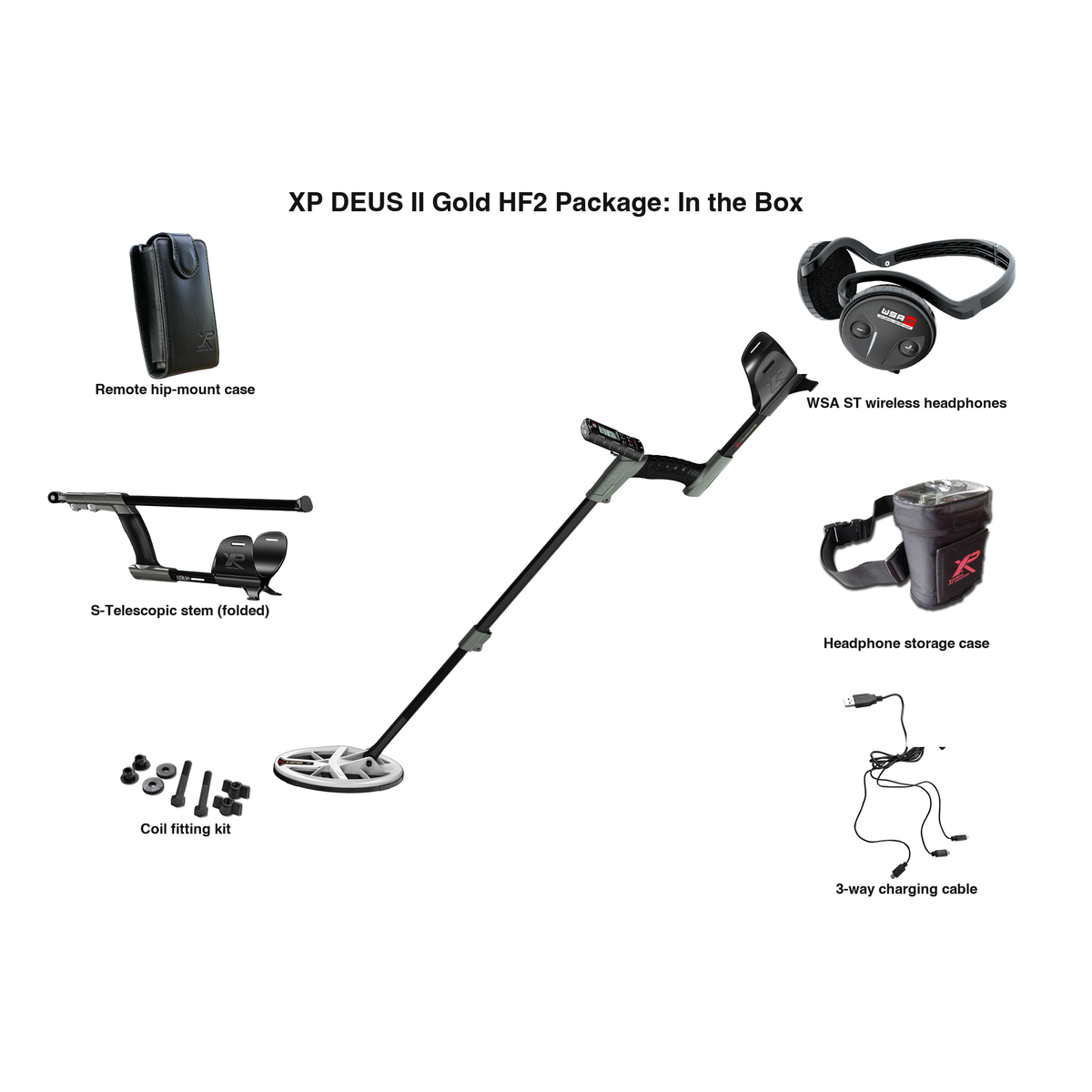

What's Included

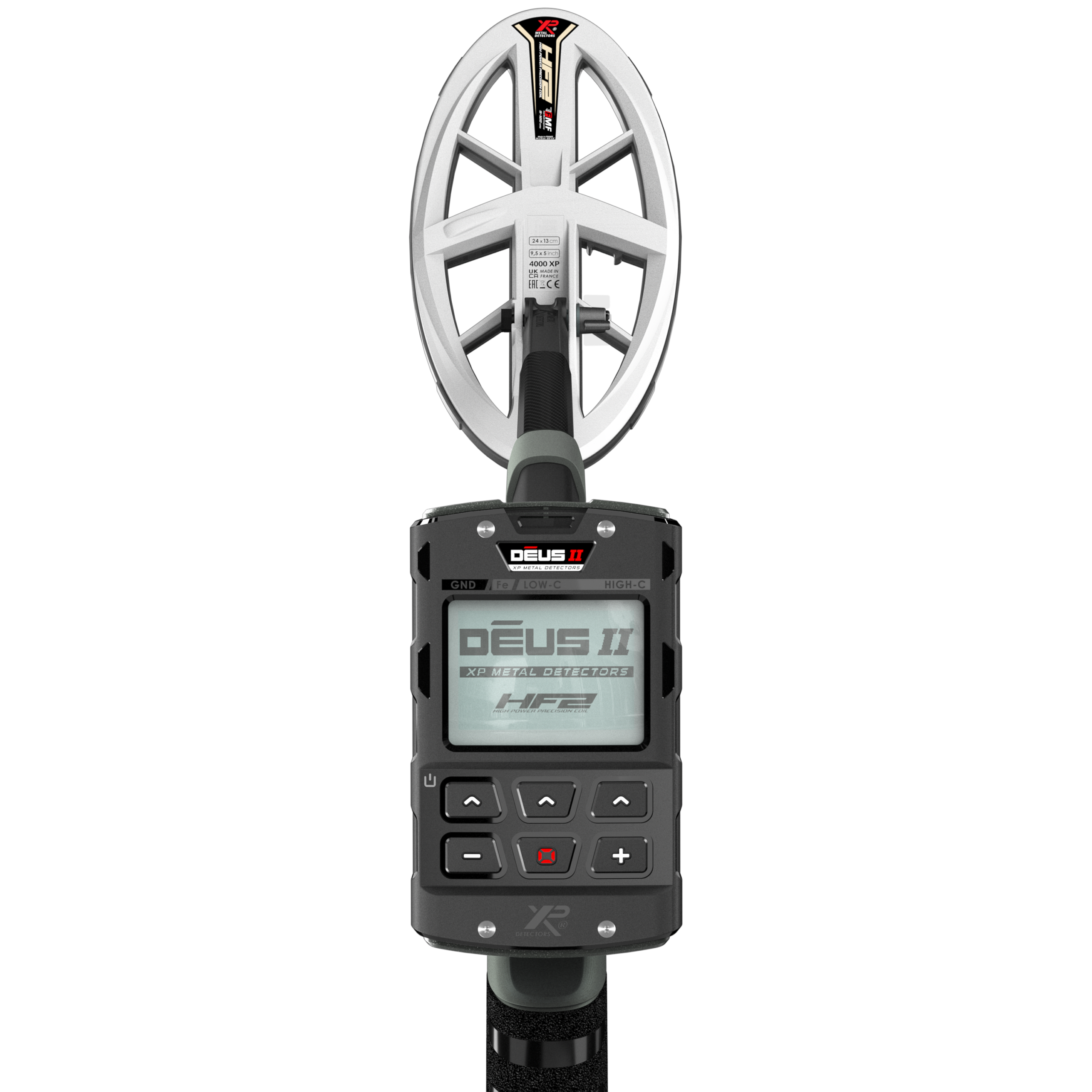

• XP DEUS II remote control with hip-mount case

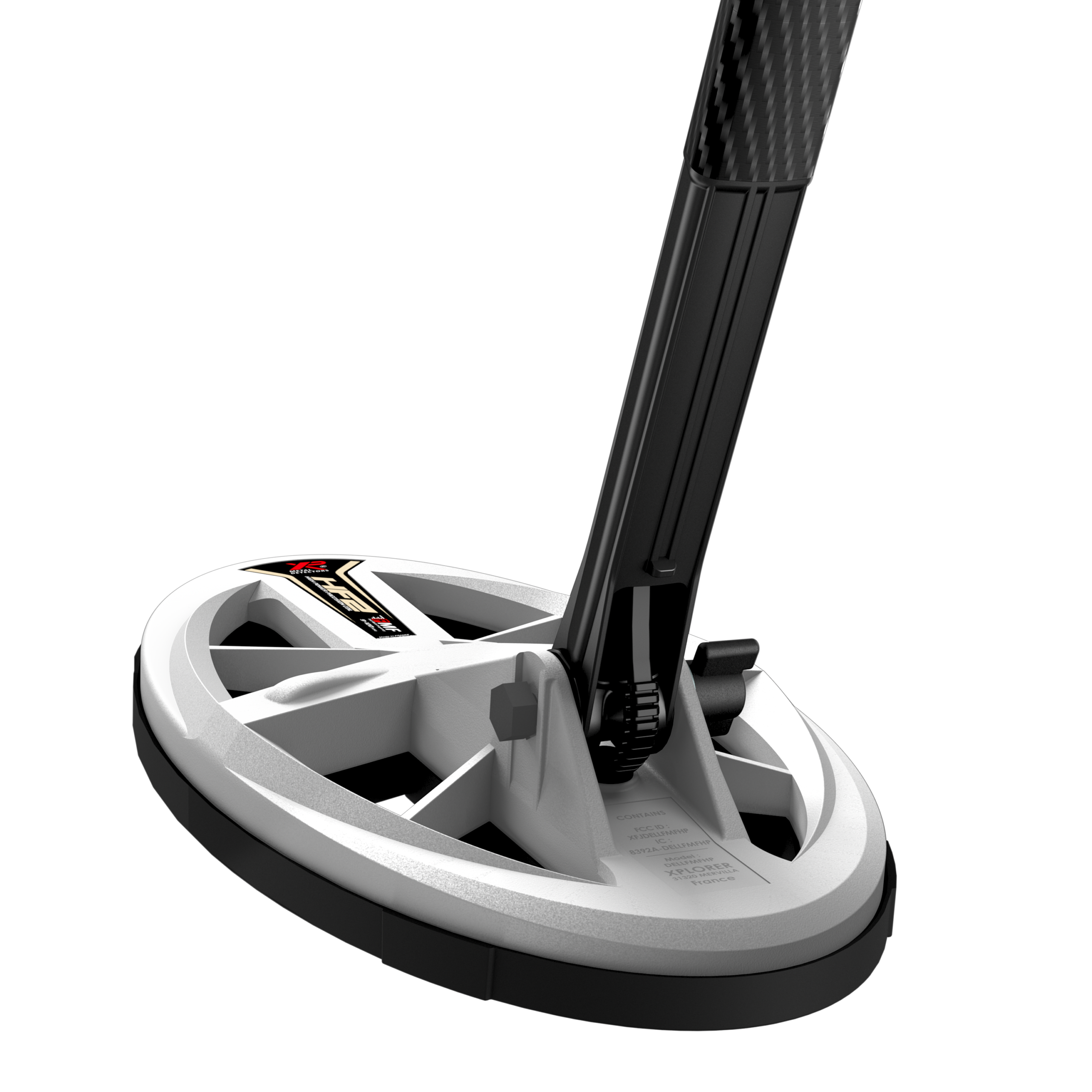

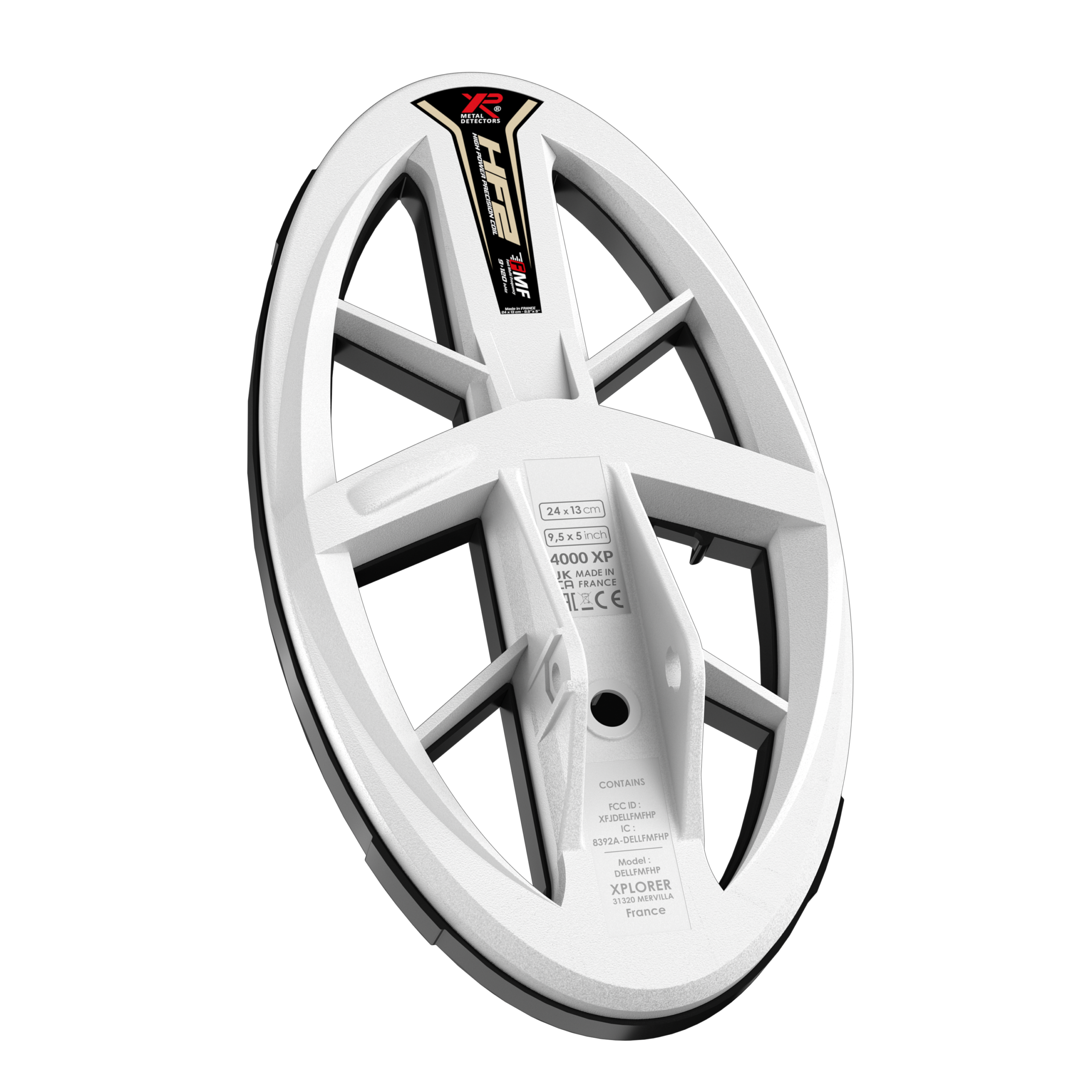

• HF2 elliptical search coil, 9.5 x 5 in / 24 x 13 cm, with coil cover, fixing kit and lower stem
• WSA ST wireless stereo headphones with storage case

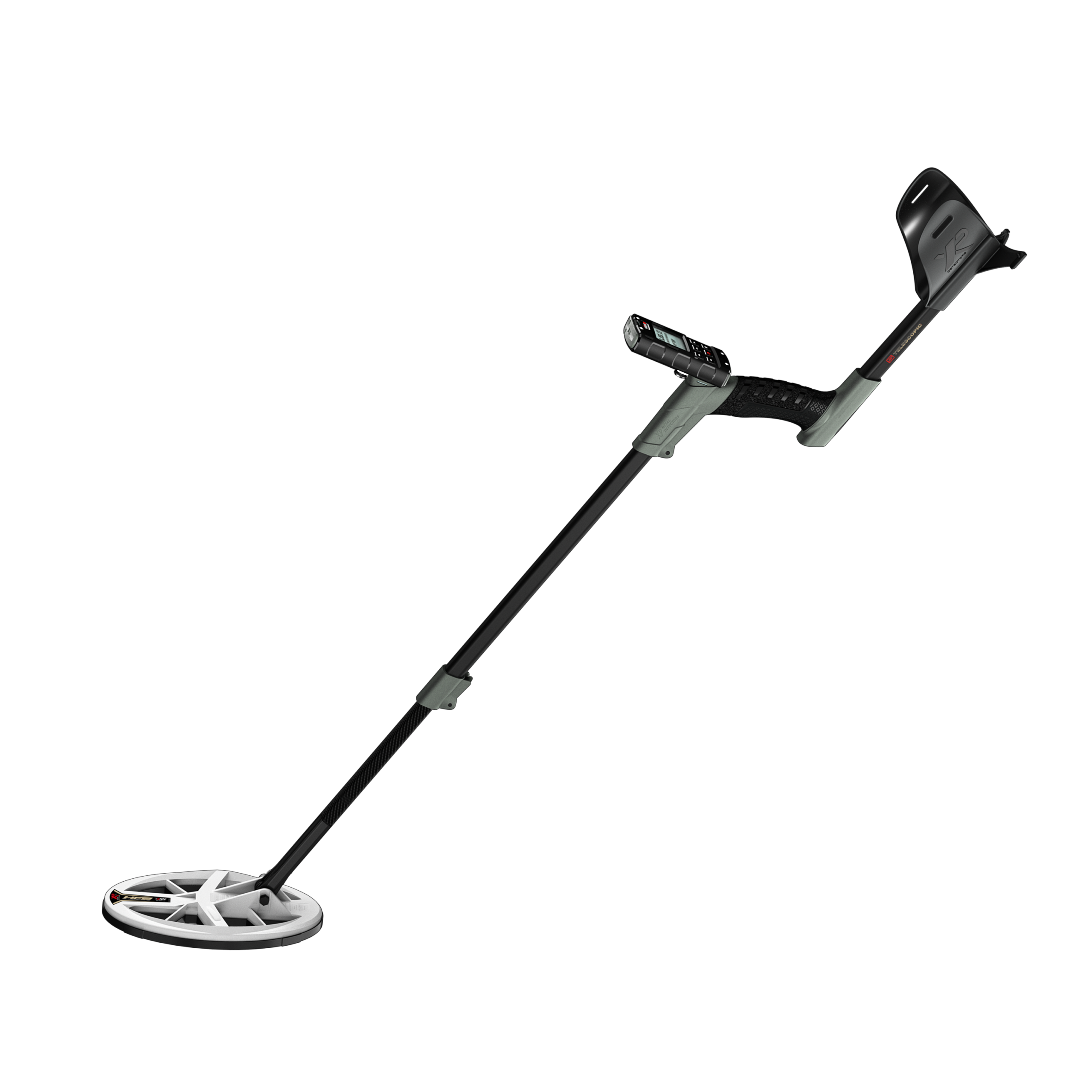

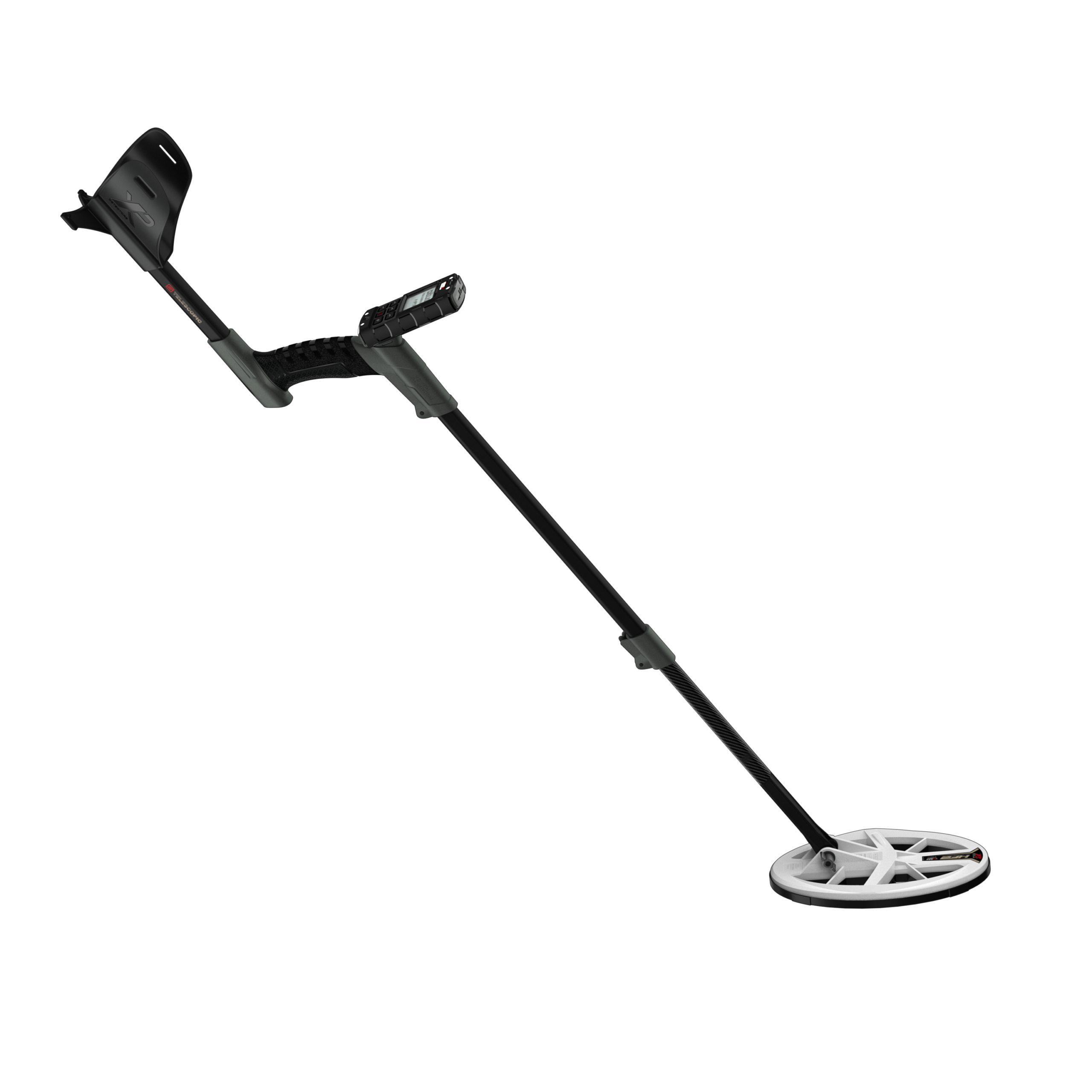

• Telescopic S stem
• Three-way USB charging cable
• English manual

Frequently Asked Questions

What makes the DEUS II Gold different from the standard DEUS II packages?

The Gold is the only DEUS II package that ships with the HF2 elliptical search coil (9.5 x 5 in / 24 x 13 cm) instead of a round or 13x11 in (34x28 cm) FMF search coil, and it pairs that coil with the DEUS II remote control and the WSA ST wireless stereo headphones. With the HF2 coil the detector runs 21 simultaneous frequencies from 9 to 90 kHz and 49 single frequencies up to 120 kHz, where the FMF coils run 4 to 45 kHz. Higher frequencies mean stronger response on small gold, thin jewelry, coins on edge and other low-conductive targets, and the narrow elliptical profile separates targets sitting in iron. The remote, the programs and the wireless platform are the same DEUS II as every other package.

Which headphones are included, and does the ST model matter?

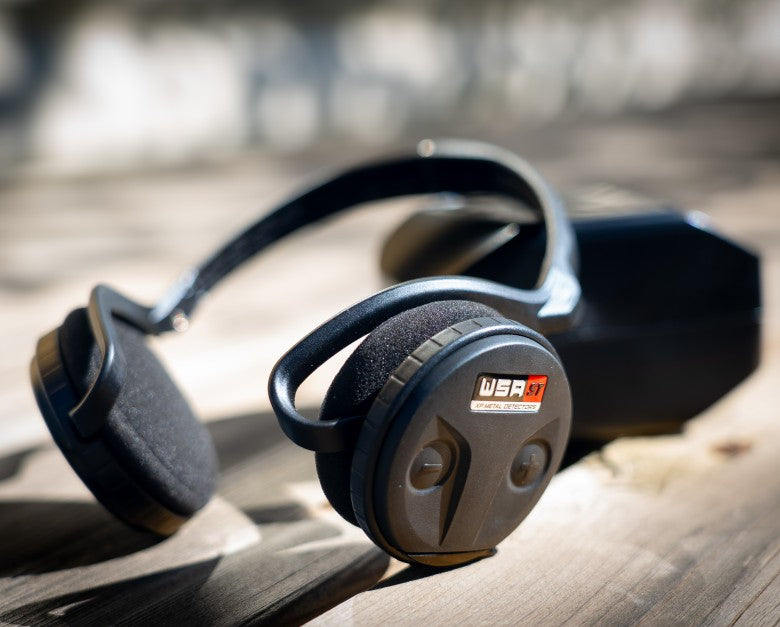

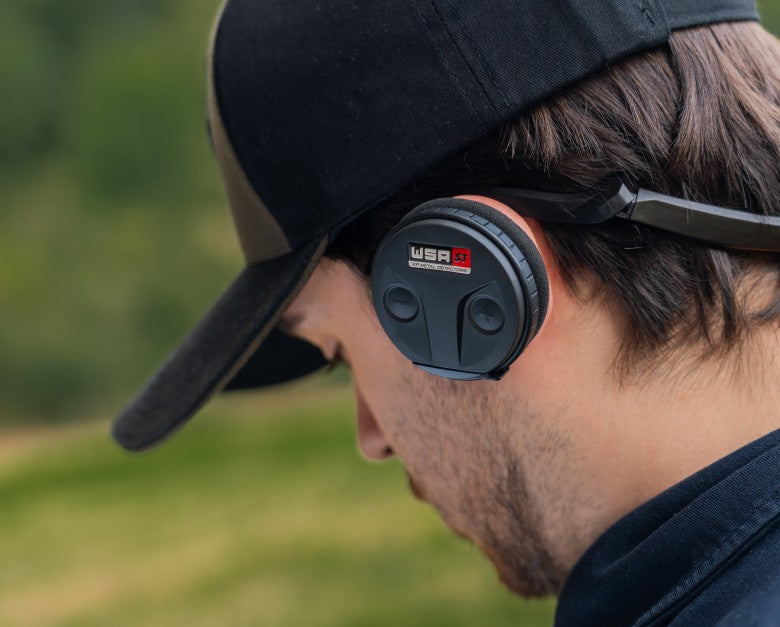

The WSA ST, XP's current wireless stereo headset: 72 g / 2.5 oz, rainproof, USB-C charging, 5-year XP warranty. It matters because XP's V4 Multi-Process features run only on the ST stereo headsets (WSA ST, WSA XL ST and WS6 ST). Multi-Reactivity runs two different Reactivity settings at once, one per ear, and the DUAL AXIS preset puts a motion discrimination channel in one ear and a non-motion all-metal channel in the other. XP has discontinued the older non-stereo WSA II and WS6 headphones, and a DEUS II built around them cannot run any of this. Check the headset model on any DEUS II listing before you compare prices, because some listings label the headphones wrong, and wear both earpieces: through a speaker or a single ear the stereo features do nothing.

Are the WSA ST headphones waterproof?

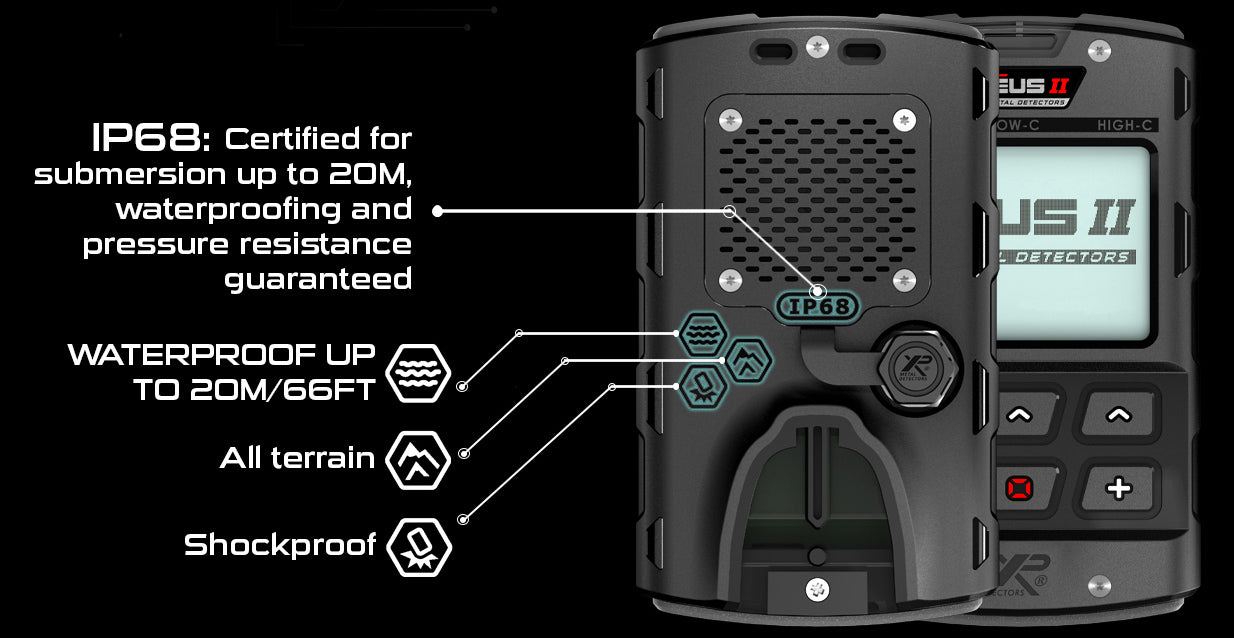

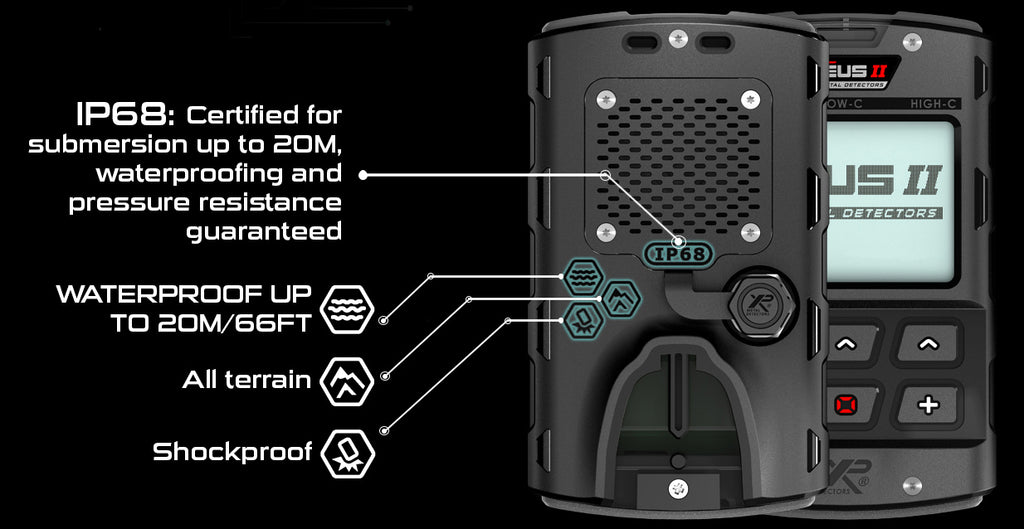

No. The WSA ST is rainproof for surface use in rain, wind and beach spray; it is not made for submersion. The DEUS II remote control and the HF2 search coil are IP68 rated and waterproof to 66 ft / 20 m, so the detector itself can go under. A submerged coil needs XP's optional aerial antenna to keep the wireless link, and the dive audio for the DEUS II is the optional XP BH-01 bone conduction headset, also IP68 to 20 m.

Can the DEUS II Gold find gold nuggets, or is it a relic machine with a gold label?

It genuinely prospects. The factory GOLD FIELD program (Prg. 8) is an all-metal prospecting mode with localized ground rejection for highly mineralized ground, and with the HF2 search coil its multi-frequency band shifts from a 40 kHz ceiling on an FMF coil to 89 kHz and beyond, with single frequencies available to 120 kHz. That is the range small nuggets respond to, and the elliptical coil works bedrock cracks and tailings the way dedicated nugget coils do. Its honest limit: deep, large nuggets in extreme mineralization are pulse-induction territory, and XP does not make a pulse-induction detector. The Gold is for the hunter who wants one machine that honestly prospects and then works relic and coin sites the same afternoon.

Is the DEUS II Gold good for colonial homesites and cellar holes?

Yes. This configuration is a strong choice for heavily iron-laden sites such as colonial homesites and cellar holes. The high frequencies of the HF2 search coil respond to small and low-conductive targets, including coins standing on edge, that lower frequencies read as ground or iron. The narrow elliptical profile (5 in / 13 cm wide) separates targets sitting next to nails, and with the WSA ST stereo headphones the Multi-Reactivity and DUAL AXIS features let you work the iron with two channels at once.

What does the HF2 coil give up compared with the FMF packages?

Coverage and the lowest frequencies. A 9.5 x 5 in / 24 x 13 cm elliptical covers less ground per sweep than the 11 in / 28 cm round or the 13x11 in / 34x28 cm FMF search coils, so open fields and beaches with sparse targets go slower. And because the HF2 band starts at 9 kHz, the 4 to 8 kHz end that the FMF programs use on large, deep, high-conductivity targets is not available on this coil. If most of your hunting is open parks, farm fields and beaches, choose a DEUS II package with a 9 in (22.5 cm), 11 in (28 cm) or 13x11 in (34x28 cm) FMF search coil. If you already own one, the HF2 search coil sold on its own turns it into the Gold configuration.

Do Deus I coils or headphones work with the DEUS II Gold?

No. The X35 and HF search coils, the WS4 and WS5 headphones, and the ORX and original Deus are Deus I products; they do not fit or pair with any DEUS II. The Deus I HF elliptical 9.5 x 5 in (24 x 13 cm) coil looks like the HF2 but is a different coil and will not connect. The DEUS II accepts only XP FMF search coils and the HF2 coil, and XP ICON coils are ICON-only. XP's conversion packs let a Deus I owner reuse stem parts, but coils and headphones never carry over.

What is in the box, and is History Seekers an authorized XP dealer?

The DEUS II remote control with its hip-mount case, the HF2 elliptical search coil (9.5 x 5 in / 24 x 13 cm) with coil cover, fixing kit and lower stem, the WSA ST wireless stereo headphones with their storage case, the telescopic S stem, the three-way USB charging cable and the English manual. History Seekers Metal Detectors is an authorized XP dealer; every DEUS II Gold we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty.

Is the XP Deus 2 a good metal detector?

Yes, and it is the detector most of our own team swings for relics and coins. The DEUS II (XP writes it DEUS II; detectorists also write Deus 2) is a fully wireless Fast Multi Frequency machine with twelve factory programs, 49 single frequencies from 4 to 45 kHz, a coil and remote IP68 waterproof to 20 m (66 ft), a 5-year warranty on parts and labor, and a weight that starts at 750 g (1.65 lb) in its lightest configuration. Its limits: it rewards learning its programs rather than running one preset forever; the ST headphones are rainproof, not dive-rated, so diving means the BH-01; the lightest weight figure is the WS6 Master configuration, not the RC packages; and a nugget-only prospector in extreme ground should be looking at pulse induction.

Which XP DEUS II package should I buy?

Compare by XP part number. XP factory packages we sell: DEUS II RC, remote and coil only, with the 9 in (22.5 cm) coil (DEUS2-22FMFRCEA) or the 11 in (28 cm) coil (DEUS2-28FMFRCEA), for hunters who own XP ST headphones or want to choose their own; DEUS II RC + WS6 ST, the complete system whose WS6 ST headphones can also run the detector as a backup controller, with the 9 in (DEUS2-22FMFRCW6STE), 11 in (DEUS2-28FMFRCW6STE) or 13x11 in, 34x28 cm (DEUS2-34FMFRCW6STE) coil; and the DEUS II Gold with the HF2 9.5 x 5 in (24x13 cm) elliptical coil, remote and WSA ST headphones (DEUS2-ELLHPRCWASTE), the high-frequency package for small gold and masked small targets. History Seekers bundles, sanctioned by XP's US distributor, pair the RC package with a headset: 9, 11 or 13x11 in coil with the WSA ST (DEUS2-22FMFRCEA+WSAST, DEUS2-28FMFRC+WSAST, DEUS2-34FMFRC+WSAST) or with the over-ear WSA XL ST (DEUS2-22FMFRC+WSAXLST, DEUS2-28FMFRC+WSAXLST, DEUS2-34FMFRC+WSAXLST). XP also makes WS6 Master packs, the WS6 ST headphones as the controller with no remote; call us if that is the configuration you want. Choose the coil by the ground (9 in for iron and trash, 11 in all-round, 13x11 in for open fields and depth) and the headset by water and weight (WS6 ST for the backup controller, WSA ST for the lightest, WSA XL ST for over-ear comfort; none is dive gear, the BH-01 is).

What accessories fit the XP DEUS II?

XP FMF coils: 9 in (22.5 cm) D22FMF, 11 in (28 cm) D28FMF, 13x11 in (34x28 cm) D3428FMF, and the HF2 9.5 x 5 in (24x13 cm) high-frequency coil DELLFMFHP; the original DEUS X35 and HF coils do not fit. Headphones: WS6 ST, WSA ST, WSA XL ST, and the BH-01 bone conduction set for diving. MI-6 and MI-4 pinpointers; XP Backpack 240, Backpack 280 and the 280 with finds pouch; XP finds pouch; aerial antennas (65, 115 and 250 cm), wave guide kits, the red 20 m plug, gray 1 m cap and antenna clip, and our Dive, Snorkel and Long Reach kits; and the Xtrem Hunter XTR-115E deep-seeking upgrade, which runs from the DEUS II remote. This page's configuration already includes the HF2 coil and the WSA ST headphones. Every item is listed, with its part number, on our DEUS II fitment page.

What software version does the DEUS II run, and how do I update it?

The current DEUS II software is V4.1, released by XP in June 2026 and still the newest version on XP's update pages as of our last check. Updates install over USB through XP's online updater, and the remote and the WSA ST must be on the same version or the headphones will not connect. V4.1 brought the Multi-Process refinements, MI-6 pinpointer audio options and improved wireless reliability; Multi-Process itself needs an ST headset, and XP warns that V4.0 must never be installed with a non-ST headset.

Where can I buy the XP DEUS II Gold HF2 package online from an authorized dealer?

Here. History Seekers Metal Detectors is an authorized XP dealer; every DEUS II Gold HF2 package we sell is new, sourced through XP's authorized US distributor under XP part number DEUS2-ELLHPRCWASTE, and carries XP's 5-year warranty on parts and labor, with batteries, chargers and connectors covered for 2 years. We help you file any warranty claim. We price match: send us the competitor's current listing for a new unit and we will verify it. Call 256-284-2247 to talk to someone who runs this machine before you order.
