Description
Most "complete" detector packages still leave you buying headphones before the first hunt. The XP ICON-X with WSA ST wireless headphones does not: it is XP's own ICONX-28FMFRCWSAST configuration, so the remote, the ICON 11 in (28 cm) FMF coil, the carbon-middle S-Telescopic Lite stem and the WSA ST headphones arrive together and pair out of the box. The ICON-X is the fully wireless Fast Multi-Frequency (FMF) platform XP built below the DEUS II, with a dedicated 28 kHz single frequency and six factory programs the base ICON does not have. At History Seekers, our working principle is simple: the story is more important than the artifact. The ICON-X earns its place in that philosophy by recovering targets cleanly enough that you can read a site, not just empty it, and by keeping you swinging longer at about 710 g (1.57 lb) fully equipped with the remote off the stem.
Why This Configuration
XP sells the ICON range four ways, and the choice comes down to two questions: ICON or ICON-X, and headphones or speaker. The ICON-X answer is for the hunter who works iron-littered homesites, trashy parks and wet beaches and wants the finer controls: a 28 kHz single frequency on top of the shared 4 and 14 kHz settings for small, thin and on-edge targets; all six factory programs plus six user slots (the base ICON carries three of each); seven reactivity levels (0 to 6) against the ICON's five; target ID in 0.5-point steps through the ferrous zone; six audio types including the Enhanced response curve that lifts faint distant targets; and the lighter carbon-middle stem. The headphones answer is this page. Other dealers list the WSA ST as an optional add-on or sell the remote-and-coil version and leave audio to you. Here the WSA ST is in the box, and it is the right headphone for this machine: 72 g (2.5 oz), rainproof, with XP's own digital radio link running about 4 ms of latency across 36 automatic channels, so an iron grunt or a faint non-ferrous whisper reaches your ears the moment the coil sees it. On a reactive FMF detector that timing is the whole point.
FMF means the ICON-X transmits and analyzes several frequencies at the same time rather than cycling through them, with the span running 4 to 40 kHz across the programs. In practice that is stable ground handling and steady target ID numbers across mixed mineralization, wet salt sand and iron-heavy ground in one pass, the same engineering family that powers the flagship XP DEUS II. The 28 kHz single-frequency mode is the ICON-X's tool for pinpointing small gold jewelry, thin hammered coins and relics sitting on edge that the lower frequencies walk past, and for isolating a good signal half-hidden beside iron.
One honest correction to how this machine is usually described. The remote and coil are IP68, but XP's own rating is 1.5 m (5 ft) for 30 minutes with the standard remote cap fitted; the 5 m (16 ft) figure applies only when the optional BH-02 bone-conduction headphones replace the cap and the waveguide carries the radio link under water. The WSA ST headphones in this package are rainproof, not submersible. Wet sand, surf line and wading are this package's water; diving is a BH-02 job.
Where It Earns Its Keep
Parks and lawns: the Park program ships with a 10 to 35 notch and the dedicated ferrous bottle-cap filter, which prints caps as two segments (around 10 and 60 to 70) so you can leave them in the ground. Farm fields and old homesites: Field and Trashy Field programs, reactivity up to 6, and the 0.5-point ferrous resolution separate a colonial copper from the nail beside it. Wet sand and surf: Wet Beach and Beach and Surf programs, with Ground PRO mode opening the normally masked ground zone (black sand, deep masked targets) when you want it. Forest and clean ground: the Forest program favors large deep targets at low reactivity. Factory programs reset to stock at every power-on, so experiments are consequence-free; your saved user programs persist.
Technical Specs and Benefits
| Spec (XP manual and xpmetaldetectors.com) | What It Does in the Field |
|---|---|
| FMF simultaneous multi-frequency, 4 to 40 kHz span; single frequencies 4, 14 and 28 kHz | Multi-frequency for stability and ID accuracy on mixed ground and wet sand; 28 kHz single for small, thin and on-edge targets. Automatic frequency scan at every start-up, plus manual shift for interference. |
| 6 factory programs (Field, Trashy Field, Forest, Park, Wet Beach, Beach and Surf) + 6 user slots | Power on, pick the ground you are standing on, start swinging. One user slot per factory program keeps your tuned versions. |
| Reactivity 7 levels (0 to 6) | Low for depth in clean ground, high to pull individual targets out of nails and trash. |
| Target ID -6.4 to 99, discrimination -6 to 99, 0.5-point steps in the ferrous zone | Read iron versus thin non-ferrous with finer resolution than the base ICON's 1-point steps. |
| Multi-Notch 28 segments, ferrous bottle-cap filter, automatic Silencer, All-Metal key | Notch out pull tabs and caps, or hit All-Metal for everything at full depth. |
| Sensitivity 25 levels; negative (ferrous) ID zone silent by default | Run it hot in clean ground, back it down in trash; iron stays quiet unless you ask to hear it. |
| Tones: Pitch, 2, 3 and 5 tones, Full Tones; PWM and SQUARE audio with Stereo Audio Morphing; 6 audio types incl. Enhanced | Depth becomes audible texture, not just volume; Enhanced boosts distant targets (ICON-X only). |
| Ground balance: Grab, Tracking, Standard and PRO modes | Pump-and-grab for quick calibration, tracking across changing fields, PRO on beach programs for black sand and masked deep targets. |
| True non-motion pinpoint with audio and visual locating | Center the target before you cut the plug; re-tune over mineralized spots. |
| IP68: 1.5 m (5 ft) for 30 min with the standard cap; 5 m (16 ft) with BH-02 headphones and waveguide | Wet sand, surf line and creek wading as delivered; the keypad locks for diving with a 12-second hold. Marine-grade stainless connectors, screws and charging contacts. |
| XP digital radio, about 4 ms latency, 36 automatic channels | Coil, remote and WSA ST talk with no perceptible delay and no cables to snag. |
| LiPo batteries: remote and headphones 365 mAh, coil 700 mAh; about 11 hours each; about 3 hours to charge | One three-output cable charges remote, coil and headphones together from any certified 5 V / 1 A USB supply; LED codes on the coil show charge state. |
| Weight about 710 g (1.57 lb) fully equipped without the remote on the stem; about 830 g (1.83 lb) with the remote mounted; remote about 110 g (3.9 oz) | Hip-mount the remote and the swing weight drops to the coil and stem. Both figures are XP's; dealers quote one or the other. |

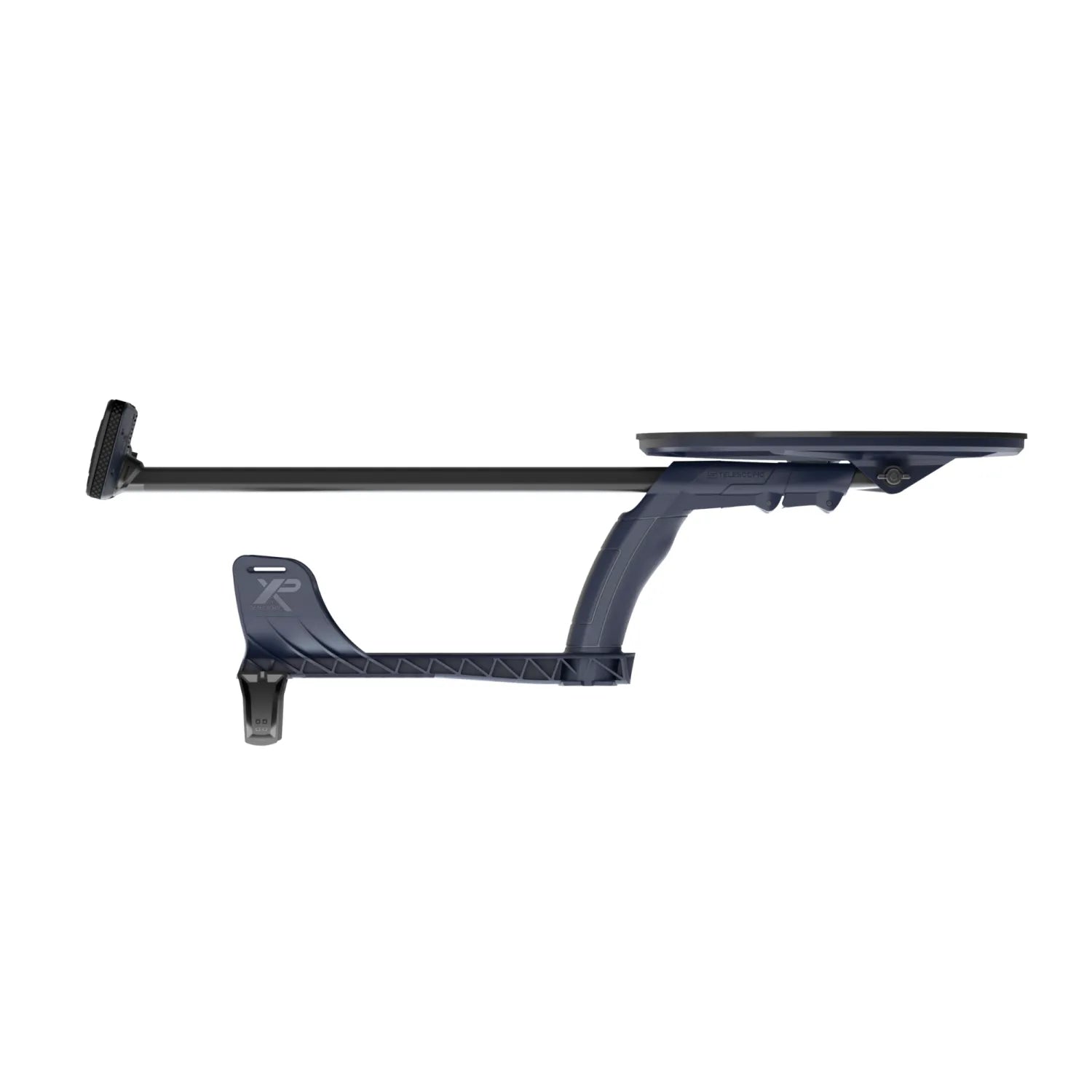

| S-Telescopic Lite stem with carbon middle section, 58 cm (22.8 in) folded to 130 cm (51.2 in) extended | Fits a daypack folded; extends for tall hunters; the ICON-X stem (about 260 g / 9.2 oz) is lighter than the base ICON's standard stem (about 285 g / 10.1 oz). |
| Sunlight-readable LCD with adjustable low-power backlight (0 to 20) | Readable at noon on the beach and at dusk in the woods. |
| MI-6 connected pinpointer, Go Terrain app (GPS routes and finds), lost-gear finder | A paired MI-6 or headphones can be made to ring and flash within 25 m, even switched off, even weeks later. |
| Software updates by USB-C through XP's online updater | Remote and headphones update at home; keep both on the same version so they pair. |
| Made in France; 5-year XP warranty | Register the detector with XP after purchase; the WSA ST headphones carry the same 5-year term. |
ICON vs ICON-X: Which One Do You Need?
| Feature Comparison | XP ICON (no headphones) | XP ICON + WSA ST | XP ICON-X (no headphones) | XP ICON-X + WSA ST (this page) |
|---|---|---|---|---|
| Wireless headphones included | No (speaker) | Yes, WSA ST | No (speaker) | Yes, WSA ST |
| Frequencies | FMF + 4, 14 kHz single | FMF + 4, 14 kHz single | FMF + 4, 14, 28 kHz single | FMF + 4, 14, 28 kHz single |
| Factory + user programs | 3 + 3 | 3 + 3 | 6 + 6 | 6 + 6 |
| Reactivity levels | 5 (1 to 5) | 5 (1 to 5) | 7 (0 to 6) | 7 (0 to 6) |
| Ferrous target ID resolution | 1-point steps | 1-point steps | 0.5-point steps | 0.5-point steps |
| Audio types | 3 | 3 | 6 (adds Enhanced) | 6 (adds Enhanced) |
| Stem | S-Telescopic Lite, standard middle | S-Telescopic Lite, standard middle | S-Telescopic Lite, carbon middle | S-Telescopic Lite, carbon middle |
| Weight, fully equipped without remote on stem | about 735 g (1.62 lb) | about 735 g (1.62 lb) | about 710 g (1.57 lb) | about 710 g (1.57 lb) |
| Best fit | Speaker-only hunters on a budget | Turn-key wireless value | DEUS II owners who already own ST headphones | Trashy sites, beaches and small targets, hunt-ready day one |
Both share the FMF engine, the ICON 11 in (28 cm) coil, 25 sensitivity levels, the same tones, notch, ground modes, batteries, IP68 rating and XP ecosystem compatibility. If you want more audio around your ears than the backphone-style WSA ST, the same detector ships with the over-ear WSA XL ST headphones, and the ICON-X Adventure Pack adds the MI-6 pinpointer and Backpack 240. Everything that fits is on our XP ICON and ICON-X accessories page.
Who It's For
The ICON-X with WSA ST is for the relic hunter and coin shooter who wants XP's wireless FMF platform without the DEUS II price, for the beach hunter working wet sand and the surf line, and for the first-time XP buyer who wants headphones in the box so the first hunt is the day the box opens. Beginners run it on the factory programs; the controls are there when you grow into them.
Honest limits: there is no gold prospecting program (the six factory programs cover field, forest, park and beach), so sub-gram nuggets in mineralized ground are not its job; gold rings and jewelry are. The WSA ST headphones are rainproof, not submersible, and the 5 m (16 ft) rating needs the BH-02 bone-conduction headphones and waveguide. The ICON 11 in coil is an ICON-only coil, not the DEUS II's 20 m-rated coil. The base ICON's three factory programs are a subset XP has not named in print, so we do not guess at them.
What Comes in the Factory Box

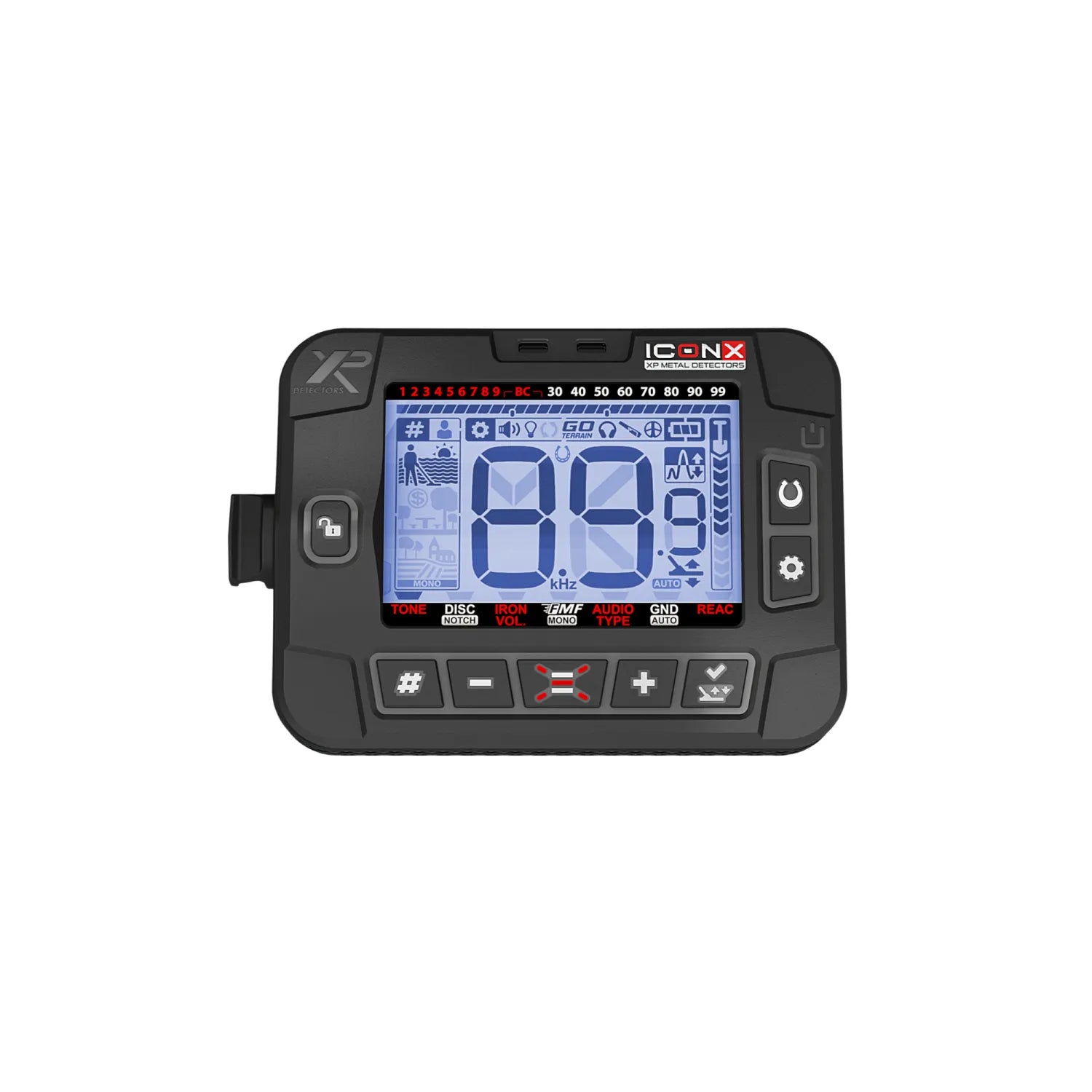

- XP ICON-X remote control (ICONX-RC)

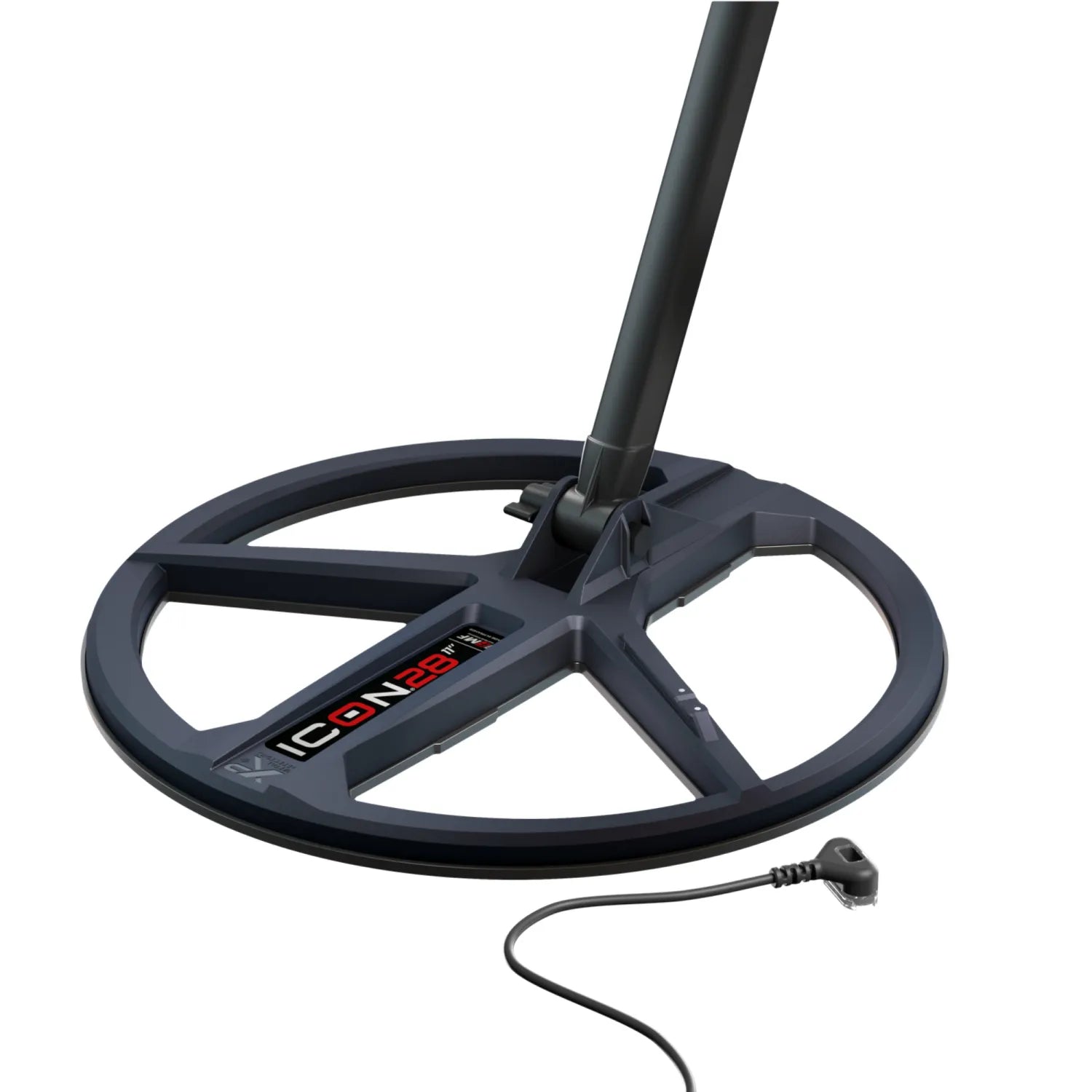

- XP ICON 11 in (28 cm) FMF search coil (D28FMFIC) with coil cover and lower stem
- Blue S-Telescopic Lite stem with carbon middle section (D044LITE-BC)

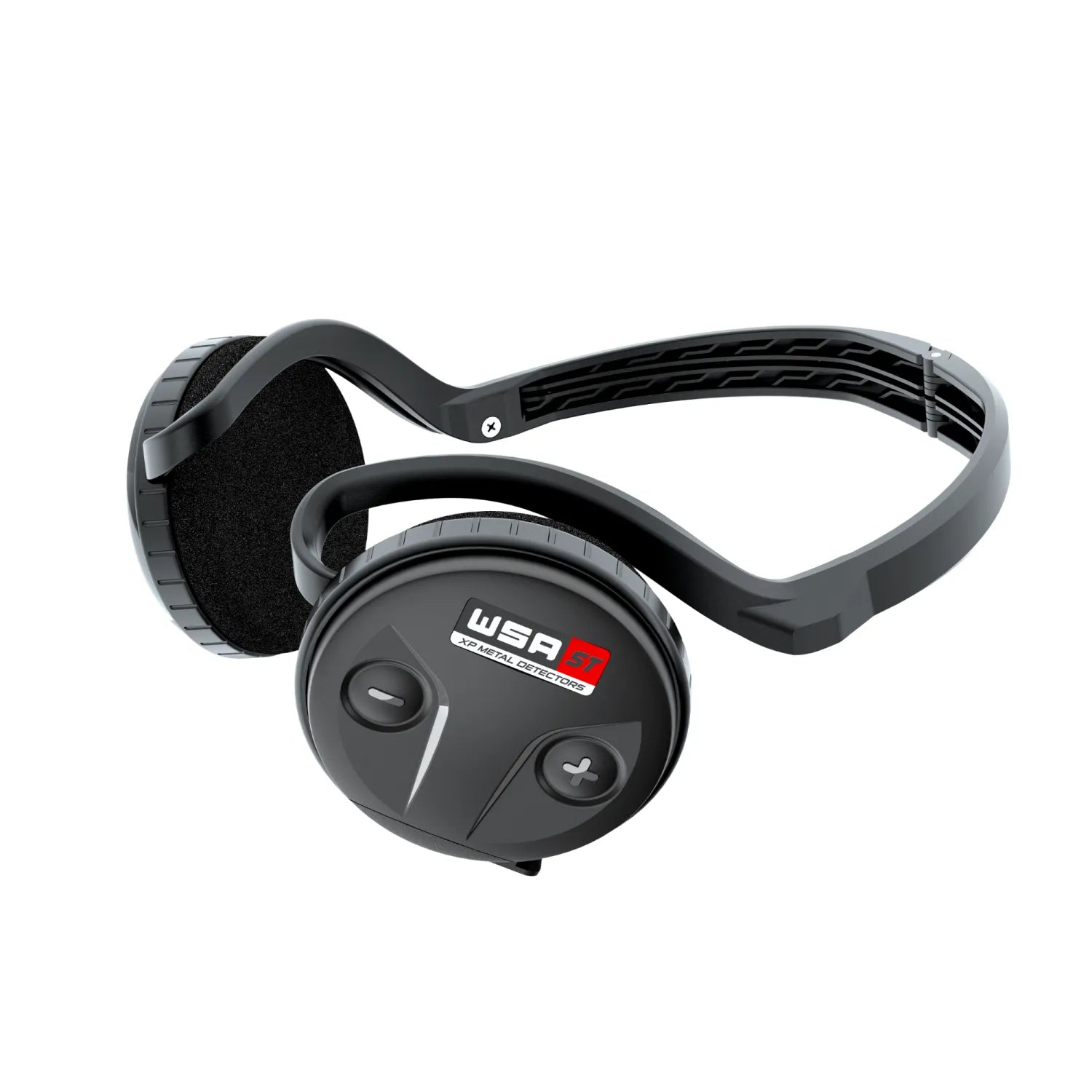

- XP WSA ST wireless stereo headphones (WSAST)
- USB charge cable: one cable charges the remote, coil and headphones together
- Documentation; 5-year XP warranty on the detector and the WSA ST headphones
History Seekers Metal Detectors is an authorized XP dealer; every ICON-X we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty. XP's ICON / ICON-X manual is free to download: XP ICON and ICON-X user manual (PDF).
Compatibility: What Fits and What Does Not
The ICON-X runs inside XP's FMF ecosystem. Headphones: WSA ST (included), WSA XL ST and WS6 ST; under water, the BH-02 bone-conduction headphones (the DEUS II's BH-01 is a DEUS II headphone, not an ICON one). Coils: the DEUS II FMF coils fit, the 9 in FMF, 11 in FMF, 13x11 in FMF and the HF2 high-frequency coil; a new coil pairs automatically the first time it goes on charge, and the remote stores several coils for one-click swaps. The original DEUS and ORX X35 and HF coils, and the WS4 and WS5 headphones, are DEUS I products and never fit the ICON-X. The MI-6 pinpointer pairs with the remote as a connected pinpointer, and a paired MI-6 can be found again with the remote's lost-gear finder.
Frequently Asked Questions
What is the difference between the XP ICON and the ICON-X, and which one do I need?
Both are FMF multi-frequency detectors with the same ICON 11 in (28 cm) coil. The ICON-X adds a 28 kHz single frequency to the shared 4 and 14 kHz, six factory programs and six user slots instead of three and three, seven reactivity levels (0 to 6) instead of five, 0.5-point ferrous target ID steps instead of 1-point, six audio types including the Enhanced curve instead of three, and a lighter carbon-middle stem (about 710 g vs 735 g fully equipped). Choose the ICON-X if you hunt trashy or iron-heavy sites, beaches with small targets, or want the finer controls; choose the ICON if you want the same engine at the lowest price and will stay on the factory programs.
Is the XP ICON-X waterproof?
The remote and coil are IP68. With the standard remote cap fitted, XP rates them to 1.5 m (5 ft) for 30 minutes, which covers wet sand, the surf line and creek wading. The 5 m (16 ft) rating applies only with the optional BH-02 bone-conduction headphones in place of the cap and the waveguide carrying the radio link under water. The included WSA ST wireless headphones are rainproof, not submersible, and wireless audio does not travel through water.
What is included in this ICON-X package?
XP's ICONX-28FMFRCWSAST configuration: the ICON-X remote control, the ICON 11 in (28 cm) FMF coil with coil cover and lower stem, the blue S-Telescopic Lite stem with carbon middle section, the WSA ST wireless stereo headphones, the USB charge cable that charges all three components together, and documentation. Nothing else is needed to hunt on land.
Will my XP DEUS II coils and headphones work with the ICON-X?
The DEUS II FMF coils (9 in, 11 in, 13x11 in and the HF2) and the ST headphones (WSA ST, WSA XL ST, WS6 ST) all pair with the ICON-X, and so does the MI-6 pinpointer. Two things do not: the DEUS II's BH-01 bone-conduction headphones (the ICON uses the BH-02), and anything from the original DEUS or ORX, whose X35 and HF coils and WS4 and WS5 headphones are DEUS I products that never fit the ICON-X. The ICON 11 in coil in this package is likewise an ICON-only coil.
How does the ICON-X compare to the XP DEUS II?
The ICON-X is the lighter, simpler and lower-priced way into XP's FMF ecosystem. The DEUS II runs 49 single frequencies from 4 to 45 kHz instead of three, 12 factory programs instead of six, and a 20 m-rated coil and remote instead of the ICON's 5 m with BH-02, and its ST headphones add Multi-Process stereo processing. If you want the deepest menu and diving depth, the DEUS II is the step up; if you want XP's wireless FMF performance on six ready-made programs, the ICON-X is the right buy.
Will the XP ICON-X find gold?
Gold rings and jewelry, yes: FMF multi-frequency and the 28 kHz single frequency make small jewelry routine in parks and on beaches. The ICON-X has no gold prospecting program; its six factory programs cover field, forest, park and beach hunting, so sub-gram nuggets in mineralized ground are not its job. In the XP family that work belongs to the DEUS II with the HF2 high-frequency coil and its Gold Field program.
How long do the batteries last, and how do I charge it?
The remote, the WSA ST headphones and the coil each run about 11 hours and charge in about 3 hours. One three-output USB cable charges all three at once from any certified 5 V / 1 A USB supply, and the coil's LED signals charge and standby states. The remote and headphone batteries are user-replaceable (XP recommends an authorized dealer for the job); the coil battery is a service item.
Is History Seekers an authorized XP dealer, and do you price match?
Yes. History Seekers Metal Detectors is an authorized XP dealer; every ICON-X we sell is new, sourced through XP's authorized US distributor, and carries the full 5-year XP warranty. We do price match: call or contact us with the competitor's current listing so we can verify it.
See it in the field
History Seekers hunts run on YouTube and Facebook, where over 1.1 million followers watch us dig relics, coins, and gold across the Southeast and beyond. We rotate machines depending on the site and the ground conditions, and every find you see was made with gear we sell and use ourselves.
One more thing worth knowing about who you are buying from. History Seekers is a small American business, not a big box retailer where nobody on staff has ever swung a detector, and not a warehouse that just moves boxes. Everyone here detects, from the top down: gold, relics, coins, jewelry, even float copper. Years of field experience before hire is not a coincidence, it is a requirement. The person who answers your questions may be the same one who packs your order and drives it to the UPS drop-off, and every purchase keeps everyday Americans working.
See everything that fits your machine:What Fits the XP ICON and ICON X
